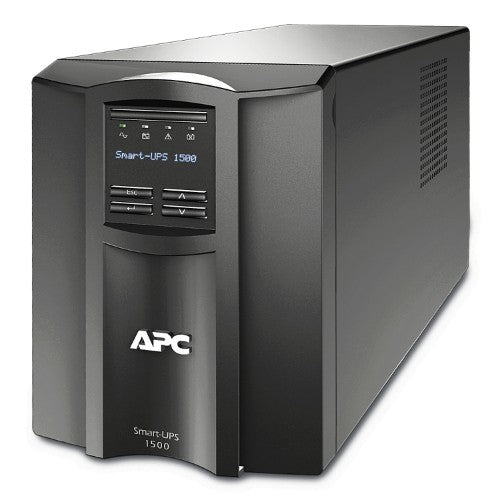

Smart-UPS, Line Interactive, 1500VA, Tower, 230V, 8x IEC C13 outlets, SmartSlot, AVR, LCD
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
| Power |
|---|
| Output power |
1000 W |
| Input operation voltage (min) |
151 V |
| Input operation voltage (max) |
302 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
459 J |
| Efficiency |
98.7% |
| Output power capacity |
1.5 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
72" (1.83 m) |
| USB port |
Yes |
| SmartSlot |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| Number of output IEC jumpers |
2 |
| Ethernet LAN (RJ-45) ports |
0 |
| Performance |
|---|
| Audible alarm modes |
Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| LED indicators |
Status |
| Noise level |
45 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Audible alarm modes |
Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Output power |
1000 W |
| Input operation voltage (min) |
151 V |
| Input operation voltage (max) |
302 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
459 J |
| Efficiency |
98.7% |
| Noise level |
45 dB |
| Audible alarm(s) |
Yes |
| Output power capacity |
1.5 kVA |
| Input frequency |
50/60 Hz |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery capacity |
408 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |

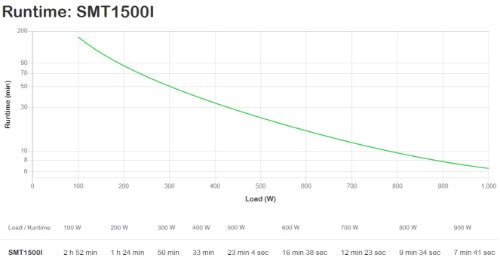

| Typical backup time at half load |
23.1 min |
| Typical backup time at full load |
6.5 min |
| Hot-swap battery |
No |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Tower |
| LED indicators |
Status |
| Product colour |
Black |
| Certification |
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| Cable length |
72" (1.83 m) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR, Green Premium |
| Total carbon footprint (kg of CO2e) |
1269.84 |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
RS-232, USB cable |
| Software CD |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, Green Premium |
| Weight & dimensions |
|---|
| Package width |
12.9" (328 mm) |
| Package depth |
23.4" (595 mm) |
| Package height |
14.8" (376 mm) |
| Weight |
53.1 lbs (24.1 kg) |
| Width |
6.73" (171 mm) |
| Package weight |
60 lbs (27.2 kg) |
| Height |
8.62" (219 mm) |
| Depth |
17.3" (439 mm) |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
RS-232, USB cable |
| Software CD |
Yes |
| Package width |
12.9" (328 mm) |
| Package depth |
23.4" (595 mm) |
| Package height |
14.8" (376 mm) |
| Package weight |
60 lbs (27.2 kg) |
| Logistics data |
|---|
| Products per pallet |
12 pc(s) |
| Total carbon footprint (kg of CO2e) |
1269.84 |
| Other features |
|---|
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
