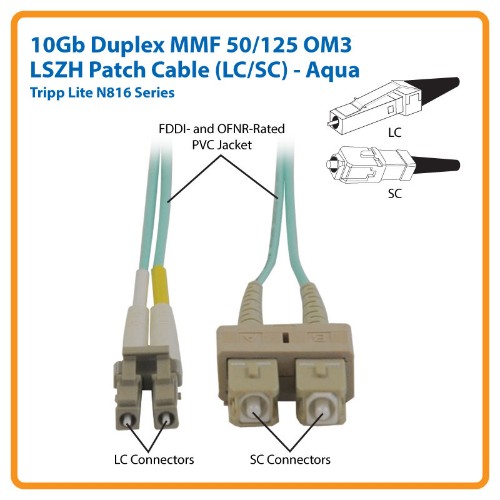

10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/SC) - Aqua, 1M (3 ft.)
Key Features
- Designed for 10-Gig Ethernet applications...OM3 rated
- Backward compatible with existing 50/125 fiber
- Max 10Gb distance of 300 meters @850nm
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
Description
1 Meter (3ft) LC/SC, OM3 Rated
10gb Ethernet speed to 300 meters @850nm
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN's
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant
Specifications
| Features |
|---|
| Fibre optic type |
OM3 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
2x SC |
| Connector 2 |
2x LC |
| Cable length |
39.4" (1 m) |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Data transfer rate |
100 Gbit/s |
| Product colour |
Beige, Turquoise |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Country of origin |
China |
| Harmonized System (HS) code |
8544.70.0000 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
0.353 oz (10 g) |
| Cable length |
39.4" (1 m) |
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
10" (254 mm) |
| Package weight |
0.353 oz (10 g) |
| Packaging data |
|---|
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
10" (254 mm) |
| Package weight |
0.353 oz (10 g) |
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
2x SC |
| Connector 2 |
2x LC |
| Cable length |
39.4" (1 m) |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Master (outer) case GTIN (EAN/UPC) |
10037332134728 |
| Compliance certificates |
RoHS |
| Data transmission |
|---|
| Data transfer rate |
100 Gbit/s |
| Logistics data |
|---|
| Master (outer) case width |
8" (203.2 mm) |
| Master (outer) case length |
10" (254 mm) |
| Master (outer) case height |
2.5" (63.5 mm) |
| Master (outer) case gross weight |
10.6 oz (300 g) |
| Products per master (outer) case |
10 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8544.70.0000 |
| Master (outer) case GTIN (EAN/UPC) |
10037332134728 |
