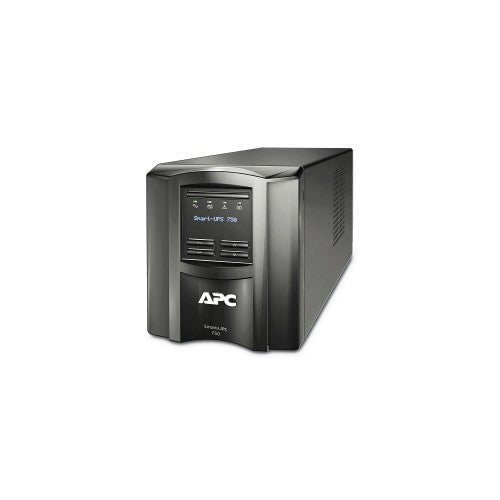

Smart-UPS, Line Interactive, 750VA, Tower, 230V, 6x IEC C13 outlets, SmartSlot, AVR, LCD
Key Features
- 750VA/500W line interactive pure sine wave tower UPS
- Ideal for servers, storage, network closets, business VoIP & desktops, retail POS
- Automatic Voltage Regulation helps correct utility voltage
- Graceful shutdown using serial or USB cables via PowerChute Business Edition
Description

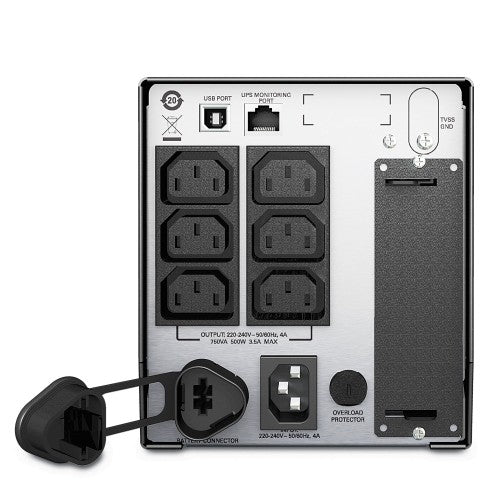

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 6x IEC 320 C13 outlets, and 2x IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
| Power |
|---|
| Output frequency regulation |
47 - 53, 57 - 63 Hz |
| Output power |
500 W |
| Input operation voltage (min) |
151 V |
| Input operation voltage (max) |
302 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
540 J |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Output power capacity |
0.75 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
72" (1.83 m) |
| USB port |
Yes |
| SmartSlot |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler, IEC Jumpers |
| Power plug |
C14 coupler |
| Number of output IEC jumpers |
2 |
| Ethernet LAN (RJ-45) ports |
0 |
| Performance |
|---|
| Audible alarm modes |
Low battery alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Noise level |
40 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Audible alarm modes |
Low battery alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Output frequency regulation |
47 - 53, 57 - 63 Hz |
| Output power |
500 W |
| Input operation voltage (min) |
151 V |
| Input operation voltage (max) |
302 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
540 J |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Noise level |
40 dB |
| Audible alarm(s) |
Yes |
| Output power capacity |
0.75 kVA |
| Input frequency |
50/60 Hz |
| Battery |
|---|
| Number of batteries supported |
1 |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Replacement battery cartridge |
RBC48 |
| Design |
|---|
| Form factor |
Mini Tower |
| Product colour |
Black |
| Certification |
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH |
| Cable length |
72" (1.83 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Sustainability certificates |
Green Premium |
| Harmonized System (HS) code |
85078000 |
| Total carbon footprint (kg of CO2e) |
659.22 |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Cables included |
RS-232, USB cable |
| Resource CD |
Yes |
| Software CD |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
Green Premium |
| Weight & dimensions |
|---|
| Package width |
10.9" (278 mm) |
| Package depth |
19.6" (499 mm) |
| Package height |
11.9" (301 mm) |
| Weight |
29.1 lbs (13.2 kg) |
| Width |
5.43" (138 mm) |
| Package weight |
31.3 lbs (14.2 kg) |
| Height |
6.22" (158 mm) |
| Depth |
14.1" (359 mm) |
| Packaging data |
|---|
| Resource CD |
Yes |
| Cables included |
RS-232, USB cable |
| Software CD |
Yes |
| Package width |
10.9" (278 mm) |
| Package depth |
19.6" (499 mm) |
| Package height |
11.9" (301 mm) |
| Package weight |
31.3 lbs (14.2 kg) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Total carbon footprint (kg of CO2e) |
659.22 |
