ToughArmor MB994IPO-3SB
Key Features
- Rugged Heavy duty full metal construction with commercially designed for Medical & Military systems, Media servers, and IPCs, approved & used by Tier 1 companies
- Perfect for rugged applications and complies with flammability requirements
- Perfect for SFF (small form factor) case, IPC, HTPC, NAS, Home Server and All-In-One computers
- Fits 2 x 2.5" SATA/SAS hard drive or SSD & 1 x slim optical disk drive (ODD)
- Accommodates hard drives or SSD with 5mm, 7mm, 9.5mm, 12.5mm & 15mm Height
- Accommodates Slim Optical Disk Drive with 12.7mm Height
- Supports SATA 6Gbps or SAS 12Gbps (dual channel)
- Dual channel SAS ports for 2.5" SSD/HDD bays allow the support of clustering
- Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs
- Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay

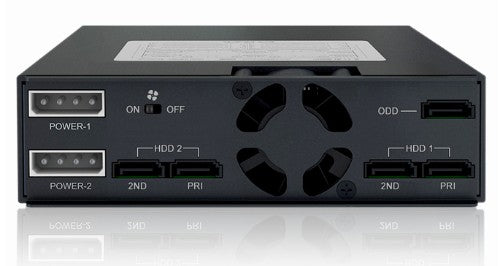

- 2 x 4 pin power connector to properly power all components
- 40mm cooling fan with On & off switch, reduce the power usage and fan noise when using SSD
- Full Metal EZ Slide Mini Tray & EZ-ODD Tray system with Full Cage Design
- Top cover for the tray adds extra drive/ODD protection
- Status LED on Front for each drive
- Full aluminum body construction
Description

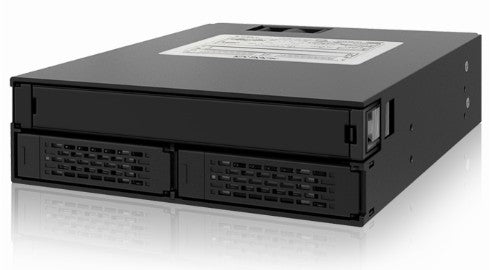

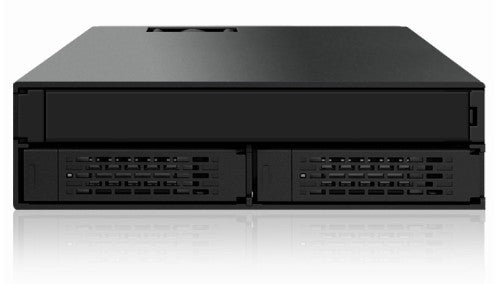

Introducing the MB994IPO-3SB, a rugged full metal dual bay 2.5” SATA/SAS hard drive / SSD mobile rack backplane designed with a Slim Optical Disk Drive (ODD) slot for use in a single external 5.25” bay. It is a device designed with a rugged full metal build commercially designed for: Medical & Military systems, Media servers, IPCs, HTPC, and All-In-One computers, approved & used by Tier 1 companies. Dual 4-pin power connectors are used to ensure secured and consistent power supply to both drives and ODD, whether they are low power consumption 2.5” SATA SSD’s or power hungry 15000 RPM 2.5” SAS drives. Also included is a single 40mm cooling fan with on & off switch to assist the drives running at their optimal temperatures, in even the most intense applications.

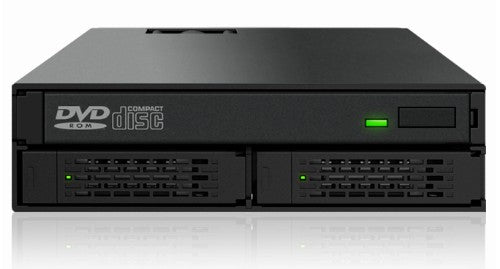

The high-density design of ToughArmor MB994IPO-3SB packs two full-height 2.5" SSD/HDD hot-swap bays and one Slim/CD/DVD/Blu-ray ROM optical disk drive into a single 5.25" drive bay, perfect for space-sensitive applications such as powerhouse PC, portable military workstation, and rackmount industrial PC.

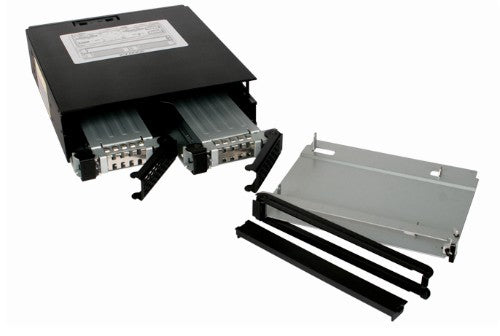

The MB994IPO-3SB separates itself from the rest of the MB994 series by the unique Slim Optical Disk Drive slot that is available. The Slim ODD slot uses our EZ-ODD Tray made of rugged full metal, and is easily removable by use of the provided key or via a side latch. This allows system integrators more freedom to better meet their potential client’s needs. The EZ-ODD Tray is compatible with any standard Slim Optical Disk Drive with 12.7mm height.

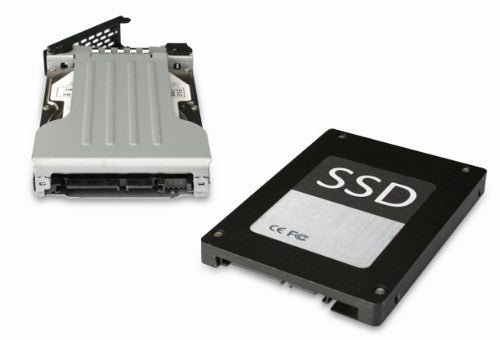

The MB994IPO-3SB utilizes our EZ Slide Mini Trays, making drive interchangeability and maintenance completely hassle free. The trays are built using rugged full metal so that they are durable for many lifetimes, while will not weigh you down when transporting your data from system to system. Also featuring a full cage design, the added top drive cover provides added layer of protection while moving the drive. The 2.5" HDD trays are designed to accommodate 5mm, 7mm, 9.5mm, 12.5mm & 15mm 2.5" SAS/ SATA SSD/HDD drives, giving you excellent control of your 2.5" hot swap backplane.
Specifications
| Features |
|---|
| LED indicators |
Yes |
| Type |
Storage drive tray |
| Size (imperial) |
2x 2.5" |
| Number of fans |
1 fan(s) |
| Fan diameter |
1.57" (4 cm) |
| Data transfer rate |
6 Gbit/s |
| Product colour |
Black |
| Technical details |
|---|
| LED indicators |
Yes |
| Type |
Storage drive tray |
| Size (imperial) |
2x 2.5" |
| Number of fans |
1 fan(s) |
| Fan diameter |
1.57" (4 cm) |
| Data transfer rate |
6 Gbit/s |
| Product colour |
Black |
| Harmonized System (HS) code |
84733080 |
| Weight & dimensions |
|---|
| Width |
5.75" (146 mm) |
| Weight |
28.3 oz (803 g) |
| Height |
6.69" (170 mm) |
| Depth |
1.63" (41.5 mm) |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
