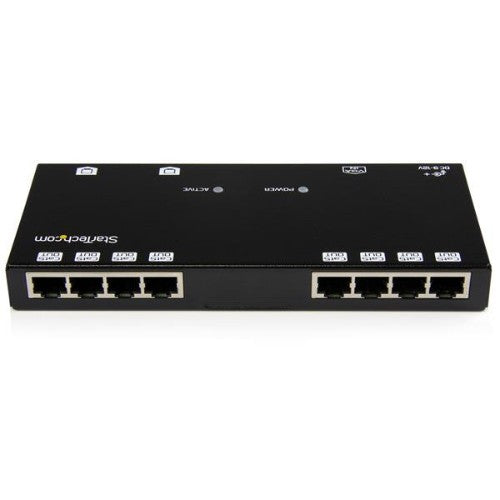

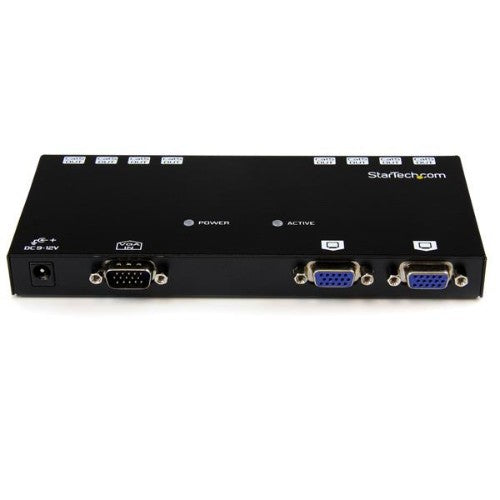

StarTech.com 8 Port VGA Video Extender over Cat 5 up to 150m
Description
Extend and distribute a VGA signal to up to 8 displays over Cat5 cable
The ST1218T 8 Port VGA Video Extender over Cat 5 is designed for use with our ST121 VGA over Cat 5 extension series, offering convenient VGA video distribution at distances of up to 492 feet (150 meters) using standard Cat 5 (or better) cabling. Comprised of the transmitter unit only, the ST1218T requires one ST121R" text="Receiver Unit (ST121R) per display that you are connecting. For added versatility, the ST121EXT" text=" VGA over Cat 5 Repeater (ST121EXT) can be used to extend the distance between the transmitter and receiver by an additional 492-feet (150 meters), for a total distance of 984-feet (300 meters). Similarly, up to 3 repeater units can be used between transmitter and receiver, enabling you to connect monitors at each repeater, while still extending the total distance. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Cat 5 extension enables you to make use of existing Ethernet infrastructure wiring to extend VGA video
- A pure hardware design provides an easy installation and setup, with no software or drivers required
- Support for cascading multiple transmitter units, and the use of repeaters for additional distance, providing a scalable system for VGA distribution
Specifications
| Features |
|---|
| Type |
AV receiver |
| Maximum resolution |
1600 x 1200 pixels |
| Cable types supported |
Cat5 |
| Maximum transfer distance |
5905.5" (150 m) |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA) |
| LED indicators |
Activity, Power |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| VGA (D-Sub) input ports |
1 |
| VGA (D-Sub) output ports |
2 |
| DC-in jack |
Yes |
| Power |
|---|
| AC input voltage |
115 V |
| Packaging data |
|---|
| Package depth |
9.41" (239 mm) |
| Package width |
3.7" (94 mm) |
| Package height |
7.36" (187 mm) |
| Package weight |
26.8 oz (760 g) |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Manual |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
