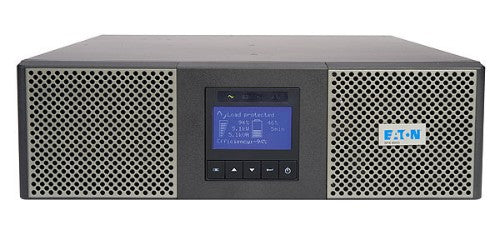

9PX 3U, 5kVA, 4.5kW, 208V, 50/60Hz, 20A, 2xL6-20R, 2xL6-30R, RS-232, USB, 45dB, 48kg, Black&Silver
Description
Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. With a graphical LCD interface and robust power management software, managing a UPS has never been easier — even in virtualized environments.
Specifications
| Power |
|---|
| Output power |
4500 W |
| Input operation voltage (min) |
176 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Maximum current |
20 A |
| Efficiency |
93% |
| Power factor |
0.9 |
| Input current Total Harmonic Distortion (THD) |
5% |
| Output power capacity |
5 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
72" (1.83 m) |
| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
NEMA L6-20R, NEMA L6-30R |
| Power plug |
NEMA L6-30P |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Response time |
0 ms |
| LED indicators |
Yes |
| Noise level |
45 dB |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Response time |
0 ms |
| Output power |
4500 W |
| Input operation voltage (min) |
176 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Maximum current |
20 A |
| Efficiency |
93% |
| Power factor |
0.9 |
| Noise level |
45 dB |
| Input current Total Harmonic Distortion (THD) |
5% |
| Output power capacity |
5 kVA |
| Input frequency |
50/60 Hz |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at half load |
7 min |
| Typical backup time at full load |
3 min |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Design |
|---|
| Rack capacity |
3U |
| Form factor |
Rackmount/Tower |
| LED indicators |
Yes |
| Safety |
CE / cULus / NOM |
| Certification |
IEC 62040-2:2006 Cat C2 / CISPR22-A / FCC-15 A |
| Cable length |
72" (1.83 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 60 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 39370.1" (0 - 1000 m) |
| Certificates |
|---|
| Certification |
IEC 62040-2:2006 Cat C2 / CISPR22-A / FCC-15 A |
| Safety |
CE / cULus / NOM |
| Safety regulation & standards |
|---|
| Safety |
CE / cULus / NOM |
| Weight & dimensions |
|---|
| Weight |
105.8 lbs (48 kg) |
| Width |
17.3" (439 mm) |
| Height |
5.12" (130 mm) |
| Depth |
28.4" (721 mm) |
| Other features |
|---|
| Nominal output voltage |
208 V |
| Nominal input voltage |
208 V |
