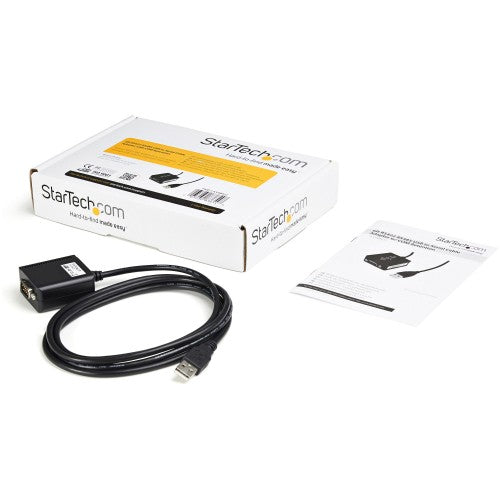

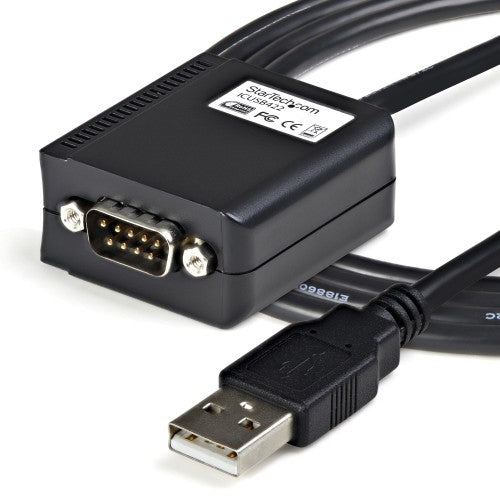

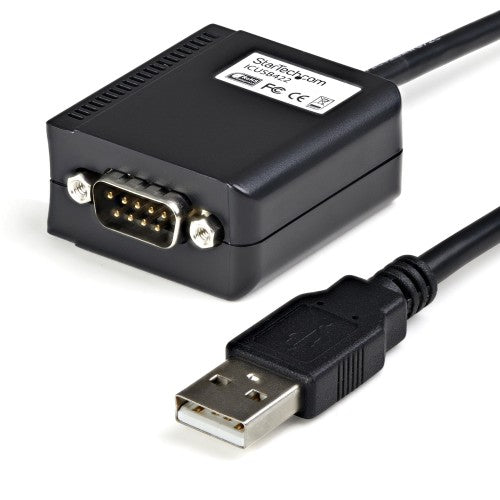

StarTech.com 6ft (1.8m) 1-Port Professional RS422/485 USB Serial Cable Adapter with COM Retention, USB to RS422 Adapter - TAA
Key Features
- MULTI-USE FUNCTIONALITY: This versatile USB to serial RS232 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners
- CUSTOMIZABLE SOLUTION: This USB serial hub features an FTDI chipset, making it highly customizable and compatible, and the ideal solution for any setup
- COMPACT DESIGN: Designed with a small form factor, this serial RS422/485 converter is USB powered and requires no bulky power adapters or an outlet
- EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices
- TECH SPECS: 6 feet (1.8 meters); FTDI FT232RL Chipset; Max Baud Rate: 921.6 Kbps; 256 Bytes FIFO; None/Odd/Even Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant
Description
Add an RS422/485 serial port to your system through USB; features COM port retention

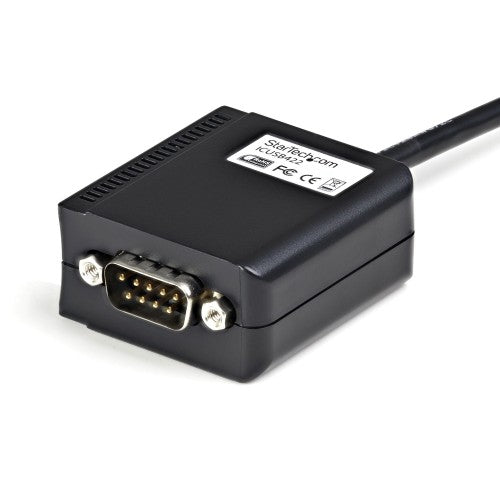

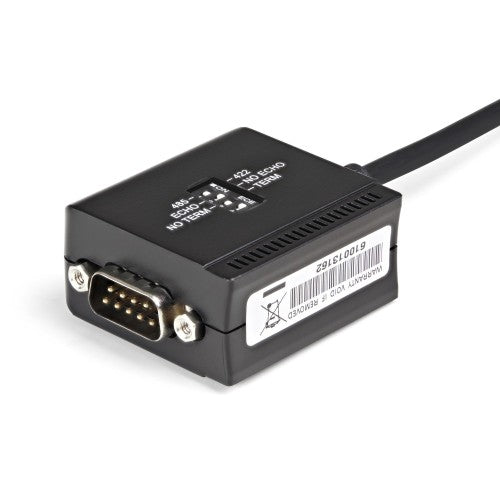

The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software.
The serial adapter is USB-powered, eliminating the aggravation of requiring an external power adapter. With COM port retention, assigned port settings are saved, so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer.
The ICUSB422 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Connector 2 |
USB-A FM |
| Connector 1 |
DB9 M |
| Cable length |
70.9" (1.8 m) |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Performance |
|---|
| Compatible operating systems |
Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
macOS 10.6 to 10.15, 11.0, 12.0, 13.0
Linux Kernel 3.0.x+ |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
3.53 oz (100 g) |
| Packaging data |
|---|
| Package width |
1.57" (40 mm) |
| Package height |
6.3" (160 mm) |
| Package depth |
9.06" (230 mm) |
| Package weight |
7.76 oz (220 g) |
| Technical details |
|---|
| Minimum system requirements |
Win 98SE/ ME/ 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ 2008(32/64bit)/ CE(4.2/5.2/6.0)
Mac 9.8/OS X
Linux 2.4.x + |
| Dimensions (WxDxH) |
1.63 x 70 x 0.87" (41.5 x 1778 x 22.1 mm) |
| Product colour |
Black |
| Cable length |
70.9" (1.8 m) |
| Design |
|---|
| Product colour |
Black |
| Cable length |
70.9" (1.8 m) |
| System requirements |
|---|
| Compatible operating systems |
Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
macOS 10.6 to 10.15, 11.0, 12.0, 13.0
Linux Kernel 3.0.x+ |
| Other features |
|---|
| Minimum system requirements |
Win 98SE/ ME/ 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ 2008(32/64bit)/ CE(4.2/5.2/6.0)
Mac 9.8/OS X
Linux 2.4.x + |
| Dimensions (WxDxH) |
1.63 x 70 x 0.87" (41.5 x 1778 x 22.1 mm) |
| Logistics data |
|---|
| Products per master (outer) case |
30 pc(s) |
| Master (outer) case width |
16.9" (430 mm) |
| Master (outer) case length |
19.7" (500 mm) |
| Master (outer) case height |
10.2" (260 mm) |
