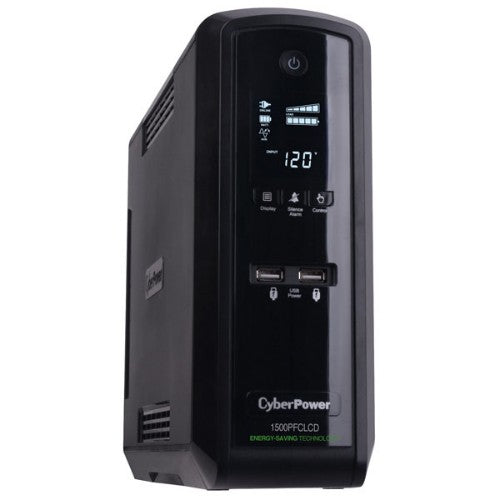

CyberPower CP1500PFCLCDTAA uninterruptible power supply (UPS) 1.5 kVA 900 W 10 AC outlet(s)

CP1500PFCLCDTAA Mini-Tower, 1500VA / 900W Pure Sine Wave UPS, EMI/RFI, 10 Outlets, USB

Description

PFC Sinewave UPS Systems — Federal Trade Agreement Act (TAA) Compliant UPS

The CyberPower Federal Trade Agreements Act (TAA) compliant CP1500PFCLCDTAA PFC Sinewave™ UPS System with pure sine wave output and multifunction LCD safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Its Automatic Voltage Regulation (AVR) technology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. Its patented GreenPower UPS™ advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.

CyberPower’s PFC Sinewave UPS Systems with pure sine wave output solve the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). With PC manufacturers adopting high-efficiency Active PFC power supplies—your equipment may be at risk. CyberPower’s innovative PFC Sinewave Series is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown or experience harmful stress when switching from AC power to UPS battery power.

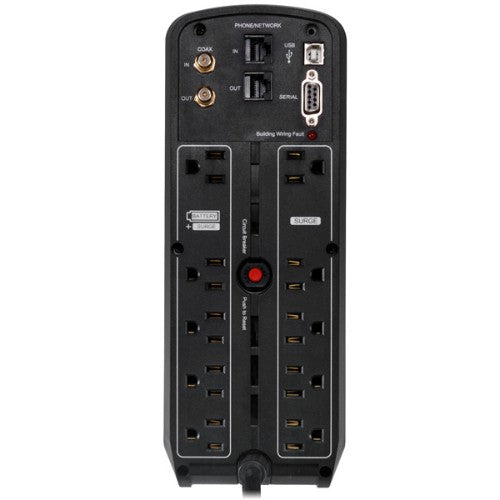

The CP1500PFCLCDTAA unit has a capacity of 1500VA/900Watts, ten (10) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/8.5Ah batteries. The intelligent multi-function LCD panel displays real-time UPS vitals for ease of control. This unit offers connectivity via one (1) HID USB and one (1) DB9 serial ports. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances. Two (2) 5Vdc USB 2.0 charging ports for portable devices such as mobile phones, MP3 players, and cameras.

PowerPanel® Personal Edition UPS Management software automatically closes computer files and safely shuts down the system in case of a power outage. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $500,000 Connected Equipment Guarantee.

Specifications

Power
Output power	900 W
Input operation voltage (min)	90 V
Input operation voltage (max)	139 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
Output power capacity	1.5 kVA
Input frequency	60 Hz
Ports & interfaces
Cable length	59.1" (1.5 m)
AC outlets quantity	10 AC outlet(s)
AC outlet types	NEMA 5–15P
USB 2.0 ports quantity	2
Serial ports quantity	1
Modem (RJ-11) ports	2
Ethernet LAN (RJ-45) ports	2
Battery
Battery type	12V/8.5AH
Battery technology	Sealed Lead Acid (VRLA)
Number of battery cells	2
Battery recharge time	8 h
Typical backup time at half load	11 min
Typical backup time at full load	2 min
Replacement battery cartridge	BB Battery - HR1234W
Performance
LED indicators	Power, Power fail
EMI/RFI noise filtering	Yes
Surge protection	Yes
Features
Output power	900 W
Input operation voltage (min)	90 V
Input operation voltage (max)	139 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
EMI/RFI noise filtering	Yes
Surge protection	Yes
Output power capacity	1.5 kVA
Input frequency	60 Hz
Design
Form factor	Tower
LED indicators	Power, Power fail
Product colour	Black
Certification	UL1778, cUL 107.3, FCC DOC B
Cable length	59.1" (1.5 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Compliance certificates	RoHS
Certificates
Certification	UL1778, cUL 107.3, FCC DOC B
Compliance certificates	RoHS
Weight & dimensions
Weight	24.7 lbs (11.2 kg)
Width	3.9" (99 mm)
Height	10.4" (264 mm)
Depth	14.2" (361 mm)
Packaging data
Bundled software	PowerPanel Personal Edition
Other features
Battery type	12V/8.5AH
Packaging content
Bundled software	PowerPanel Personal Edition
