StarTech.com ST7200USBM, USB 2.0 Type-B, USB 2.0, 480 Mbit/s, Black, Steel, CE, FCC, RoHS, REACH, TAA

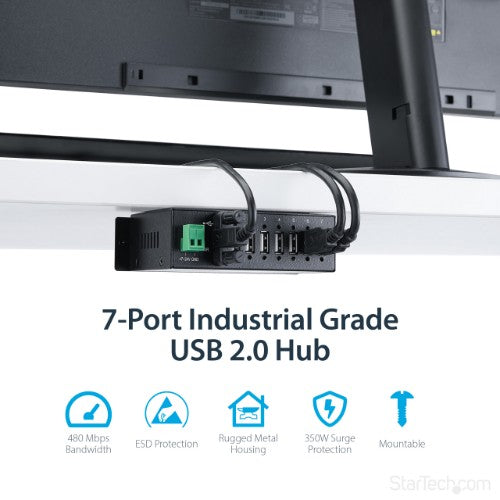

Key Features
- Protects your connected devices with 15kV Air and 8kV Contact ESD protection
- Surge protection of 350W on the downstream and upstream USB ports

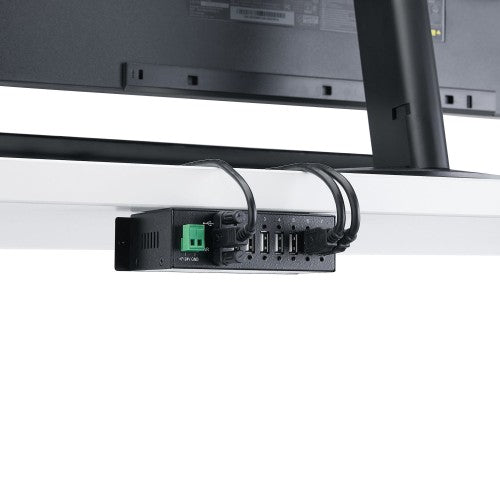

- Mount industrial USB 2.0 hub where required with built-in mounting brackets or included DIN rails

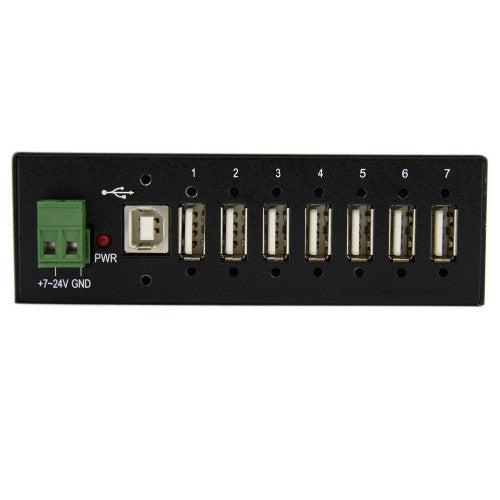

- Offers flexible, wide-range power inputs with a 7-24V DC terminal block
- Adds seven USB 2.0 ports from a single USB connection
Description
StarTech.com ST7200USBM. Host interface: USB 2.0 Type-B, Hub interfaces: USB 2.0. Data transfer rate: 480 Mbit/s, Product color: Black, Housing material: Steel. Input voltage: 7 - 24 V. Width: 2.42" (61.5 mm), Depth: 5.24" (133 mm), Height: 1.43" (36.3 mm). Package width: 8.5" (216 mm), Package depth: 5.94" (151 mm), Package height: 2.01" (51 mm)
Specifications
| Ports & interfaces |
|---|
| Host interface |
USB 2.0 Type-B |
| Terminal block port |
Yes |
| Hub interfaces |
USB 2.0 |
| USB 2.0 ports quantity |
7 |
| Ports quantity |
7 |
| Features |
|---|
| Surge protection |
Yes |
| Plug and Play |
Yes |
| LED indicators |
Yes |
| Hot-swap |
Yes |
| Product colour |
Black |
| Certification |
CE, FCC, RoHS, REACH, TAA |
| Data transfer rate |
480 Mbit/s |
| Housing material |
Steel |
| Host interface |
USB 2.0 Type-B |
| Data transmission |
|---|
| Data transfer rate |
480 Mbit/s |
| Power |
|---|
| Input voltage |
7 - 24 V |
| Technical details |
|---|
| Plug and Play |
Yes |
| Hot-swap |
Yes |
| Product colour |
Black |
| Performance |
|---|
| Certification |
CE, FCC, RoHS, REACH, TAA |
| Surge protection |
Yes |
| Plug and Play |
Yes |
| Hot-swap |
Yes |
| Data transfer rate |
480 Mbit/s |
| Mean time between failures (MTBF) |
170227 h |
| Harmonized System (HS) code |
84719000 |
| Weight & dimensions |
|---|
| Weight |
9.98 oz (283 g) |
| Width |
2.42" (61.5 mm) |
| Depth |
5.24" (133 mm) |
| Height |
1.43" (36.3 mm) |
| Package width |
8.5" (216 mm) |
| Package depth |
5.94" (151 mm) |
| Package height |
2.01" (51 mm) |
| Package weight |
17.6 oz (500 g) |
| Packaging data |
|---|
| Package width |
8.5" (216 mm) |
| Package depth |
5.94" (151 mm) |
| Package height |
2.01" (51 mm) |
| Package weight |
17.6 oz (500 g) |
| Packaging content |
|---|

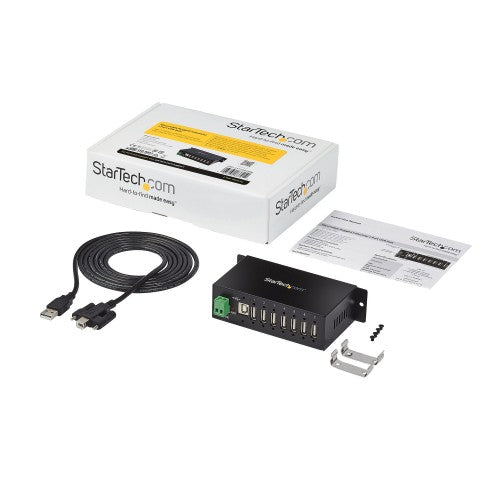

| Manual |
Yes |
| Cables included |
USB |
| DIN rail kit included |
Yes |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
CE, FCC, RoHS, REACH, TAA |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS, REACH, TAA |
| Indication |
|---|
| LED indicators |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
17.2" (436 mm) |
| Master (outer) case length |
20.2" (514 mm) |
| Master (outer) case height |
10.4" (264 mm) |
| Products per master (outer) case |
25 pc(s) |
| Harmonized System (HS) code |
84719000 |
| Other features |
|---|
| Chipset |
Terminus - FE2.1 |
