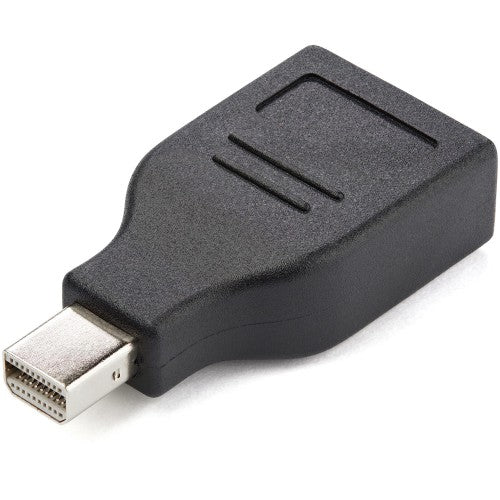

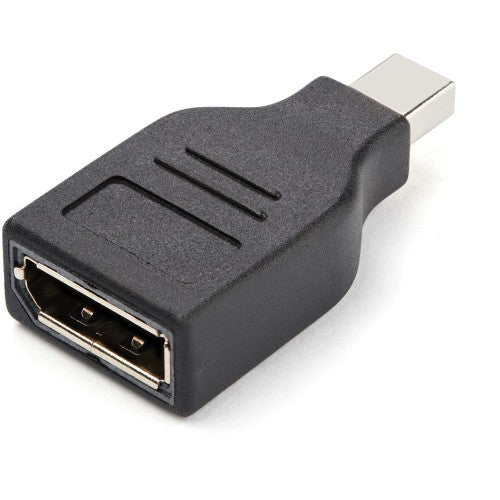

StarTech.com Compact Mini DisplayPort to DisplayPort Adapter - 4K x 2K Video - UHD Mini DP to DP Converter - mDP to DP 1.2 Adapter - mDP PC/Computer to DisplayPort Monitor/Display - M/F (GCMDP2DPMF)
Key Features
- MINI DISPLAYPORT to DISPLAYPORT 1.2 ADAPTER: mDP v1.2 to Standard DP female adapter supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- DURABLE AND COMPACT DESIGN: 4K/Full HD high performance fully molded Mini DisplayPort to DisplayPort adapter with long lasting PVC mold for high strength and reliability; Small 1.4"(37mm)L x 0.9"(22mm)W x 0.4"(11mm)H size for convenience
- MINI DP TO DP CONVERTER: This mDP to DP adapter allows you to convert mini-DP port on your laptop/desktop into a standard DP port output; Cost effective way to make the most out of your Mini DisplayPort device
- APPLICATIONS: Ideal for home/office/boardroom/classroom works w/laptop (with Mini-DP port)/professional workstations with AMD FirePro™ W9100/8100, NVIDIA NVS 810/510 graphic card; UHD/4K monitor/projector/display; Microsoft Surface Pro 1-6
- SPECS: 1.4"(37mm) L x 0.9"(22mm) W x 0.4"(11mm) H / Black / DisplayPort v1.2 / Mini-DP Male to Standard DP Female port video adapter / PVC mold / Protocols: HBR 2, MST, GTC / Backwards compatible with DP1.1 / Lifetime Warranty
Description
Connect to your mini DisplayPort-equipped devices using a standard DisplayPort cable.
The GCMDP2DPMF Mini DisplayPort to DisplayPort adapter/converter allows you to add a standard DisplayPort connection port to your
existing laptop or Mac® Mini. Easy to use and install, this cost-effective solution makes it easy for you to go from Mini DP to DP, in order to get the most from your Mini DisplayPort device.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| DisplayPort version |
1.2 |
| Connector contacts plating |
Nickel |
| Connector 2 |
DisplayPort |
| Connector 1 |
Mini DisplayPort |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Performance |
|---|
| Housing material |
Polyvinyl chloride (PVC) |
| Maximum refresh rate |
120 Hz |
| Maximum resolution |
3840 x 2400 pixels |
| Product colour |
Black |
| DisplayPort version |
1.2 |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Width |
0.433" (11 mm) |
| Weight |
0.6 oz (17 g) |
| Height |
1.73" (44 mm) |
| Depth |
0.866" (22 mm) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
3.54" (90 mm) |
| Package height |
0.512" (13 mm) |
| Package depth |
4.92" (125 mm) |
| Package weight |
0.705 oz (20 g) |
| Technical details |
|---|
| Maximum resolution |
3840 x 2400 pixels |
| Product colour |
Black |
| Housing material |
Polyvinyl chloride (PVC) |
| Maximum port bandwidth |
21.6 Gbps |
| Compliance certificates |
CE, RoHS |
| Design |
|---|
| Housing material |
Polyvinyl chloride (PVC) |
| Product colour |
Black |
| Logistics data |
|---|
| Products per master (outer) case |
800 pc(s) |
| Master (outer) case width |
11.8" (300 mm) |
| Master (outer) case length |
16.9" (430 mm) |
| Master (outer) case height |
19.7" (500 mm) |
