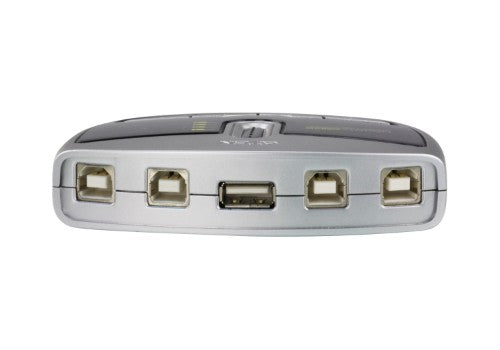

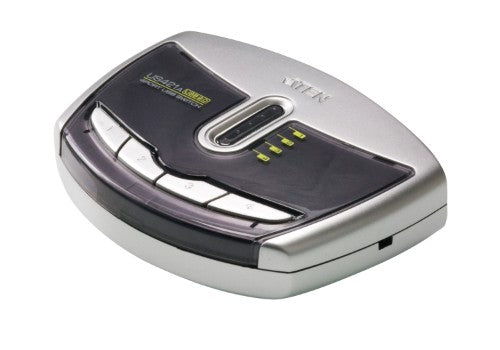

4-Port USB 2.0 Peripheral Switch
Key Features
- Enables four computers to share a single USB peripheral device
- Simple port selection via pushbuttons, configuration utility, or Auto Switch function
- Auto Switch Function - no need for print server
- USB 2.0 compliant
- Supports transfer rates up to 480 Mbps
- Multiplatform support - Windows and Mac
- LED indicators display port focus
- Overcurrent protection
- Bus-powered
- Hot pluggable
- Buzzer indicates switching between computers
- Supports multifunction printers
Description
The US421A is a 4-port USB 2.0 Peripheral Switch that allows up to 4 computers to share the use of a single USB peripheral device (such as a printer, scanner, mass storage drive, etc.) on a one-at-a-time basis.
The peripheral focus can be given to a computer manually by using pushbuttons on the switch, using the software-based configuration utility, or by the Auto Switch function.
Compatible with both Windows and Mac, and with multifunction printer support, the US421A is the ideal way to share the latest USB 2.0 peripherals in a multimedia office environment.
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
4 |
| Console ports |
USB B |
| USB version |
2.0 |
| USB connector type |
USB Type-A, USB Type-B |
| Number of computers controlled |
4 |
| Keyboard port type |
No |
| Mouse port type |
No |
| Console port |
USB |
| USB 2.0 Type-B ports quantity |
4 |
| Performance |
|---|
| Data transfer rate (max) |
0.48 Gbit/s |
| Plug and Play |
Yes |
| Technical details |
|---|
| Product colour |
Black, Silver |
| Rack mounting |
No |
| Plug and Play |
Yes |
| Push button |
Yes |
| LED indicators |
Yes |
| USB version |
2.0 |
| Design |
|---|
| Product colour |
Black, Silver |
| Rack mounting |
No |
| Push button |
Yes |
| LED indicators |
Yes |
| Housing material |
Plastic |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| USB powered |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
3.13" (79.6 mm) |
| Depth |
4.09" (104 mm) |
| Height |
0.866" (22 mm) |
| Weight |
3.42 oz (97 g) |
| Other features |
|---|
| Push button |
Yes |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
