StarTech.com ST1000SPEX2T network card Internal Ethernet

StarTech.com 1-Port Gigabit PCIe Network Adapter Card, PCI Express LAN Card, NIC, Realtek RTL8111H, TAA Compliant

Key Features

• TAA-COMPLIANT GIGABIT ETHERNET CARD: Network Card with Realtek RTL8111H chip adds a gigabit ethernet interface to a desktop or server; Features link speed and activity LED indicators allowing users to visually diagnose issues and confirm network speeds
• PLUG & PLAY COMPATIBILITY: Network Interface Card drivers auto-install in most major operating systems including Windows, Windows Server, and Linux; Works with Intel and AMD hardware platforms that have a PCI Express x1, x2, x4, x8, or x16 slot
• PERFORMANCE & MANAGEMENT: PCIe Network Adapter Card supports 9K jumbo frames to reduce packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100/1000Mbps, and VLANs for efficient network management

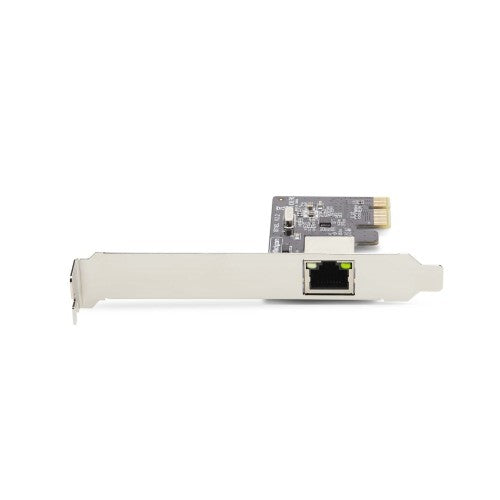

• UNIVERSAL FIT: PCI Express NIC comes with a pre-installed standard-profile bracket for full-sized desktops and servers, and it includes a low-profile bracket for compatibility with small form-factor computers
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 1-port network card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

Description

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot

This TAA-compliant Gigabit Ethernet card adds a gigabit Ethernet interface to a desktop or server.

Plug And Play Compatible

This 1-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.

Performance and Management

This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.

This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100/1000Mbps, and VLANs for streamlined network management.

Universal Fit

The PCI Express NIC includes a pre-installed standard-profile bracket for full-sized desktops and servers, as well as a low-profile bracket for compatibility with small form-factor computers.

The StarTech.com Advantage

Specifications

Ports & interfaces
Internal	Yes
Ethernet LAN (RJ-45) ports	1
PCI Card form factor	Full-height (low-profile)
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Network
Chipset	Realtek RTL8111H
Jumbo frames	9000
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready	Yes
Jumbo frames support	Yes
Auto-negotiation	Yes
VLAN support	Yes
Technical details
Product colour	Black
Wake-on-LAN ready	Yes
PCI Card form factor	Full-height (low-profile)
Design
Product colour	Black
Chipset	Realtek RTL8111H
Internal	Yes
PCI Card form factor	Full-height (low-profile)
LED indicators	Activity, Link
Component for	PC/server
Software
Windows operating systems supported	Windows 11 Enterprise x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 8 Enterprise, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 8 Pro, Windows 10 Pro, Windows 8 Pro x64, Windows 10 Pro x64, Windows 8 x64, Windows 10 x64, Windows 8.1, Windows 11, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 8.1 Enterprise x64
Linux operating systems supported	Yes
Indication
LED indicators	Activity, Link
System requirements
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022
Windows operating systems supported	Windows 11 Enterprise x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 8 Enterprise, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 8 Pro, Windows 10 Pro, Windows 8 Pro x64, Windows 10 Pro x64, Windows 8 x64, Windows 10 x64, Windows 8.1, Windows 11, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 8.1 Enterprise x64
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	5 - 70 °C
Storage temperature (T-T)	0 - 80 °C
Operating relative humidity (H-H)	10 - 80%
Weight & dimensions
Weight	1.2 oz (34 g)
Package width	5.59" (142 mm)
Package depth	6.69" (170 mm)
Package height	1.18" (30 mm)
Package weight	3.55 oz (100.5 g)
Packaging data
Package width	5.59" (142 mm)
Package depth	6.69" (170 mm)
Package height	1.18" (30 mm)
Package weight	3.55 oz (100.5 g)
Performance
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022
Wake-on-LAN ready	Yes
Windows operating systems supported	Windows 11 Enterprise x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 8 Enterprise, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 8 Pro, Windows 10 Pro, Windows 8 Pro x64, Windows 10 Pro x64, Windows 8 x64, Windows 10 x64, Windows 8.1, Windows 11, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 8.1 Enterprise x64
Linux operating systems supported	Yes
Auto-negotiation	Yes
Other features
Chipset	Realtek RTL8111H
Jumbo frames	9000
Logistics data
Master (outer) case width	27" (685 mm)
Master (outer) case length	13.6" (345 mm)
Master (outer) case height	12" (306 mm)
Products per master (outer) case	75 pc(s)
