Octa-core Arm Cortex-A53, Ethernet / Bluetooth, 32 GB eMMC, 3 GB RAM, PoE, Quick charge 2.0/3.0 power adapter, 9V DC, 2A, 1.42" gray-scale OLED, Anodized aluminum
Key Features
- Includes full UniFi application suite for device management
- Pre-installed 1TB SSD
- Connect and power using PoE
- Optional USB-C power with Quick Charge 2.0/3.0 compliant adapter only
- Bluetooth for instant setup
Description

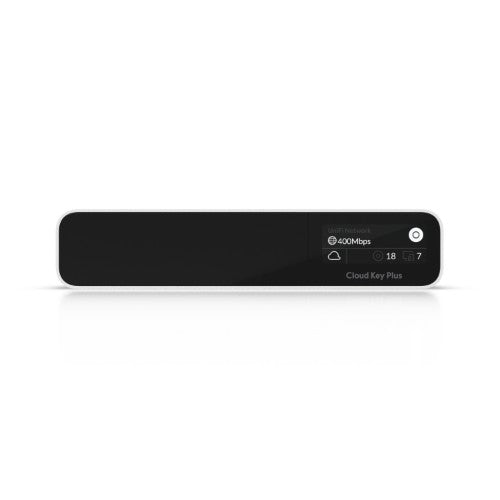

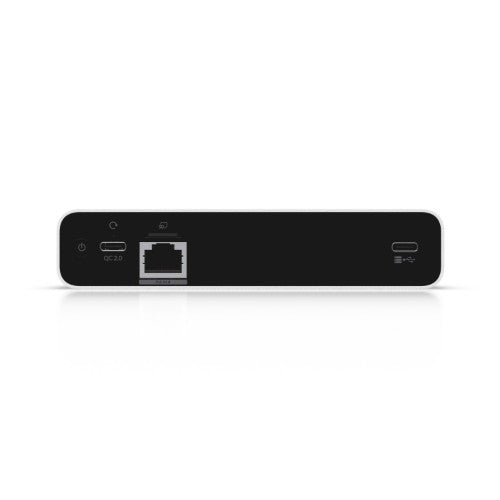

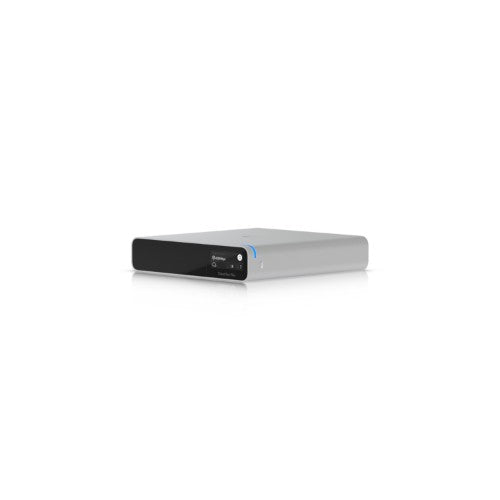

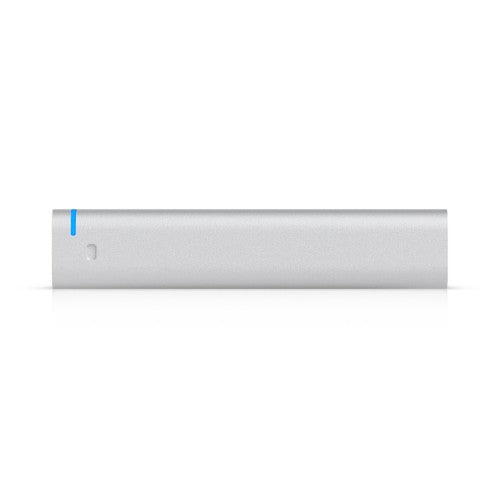

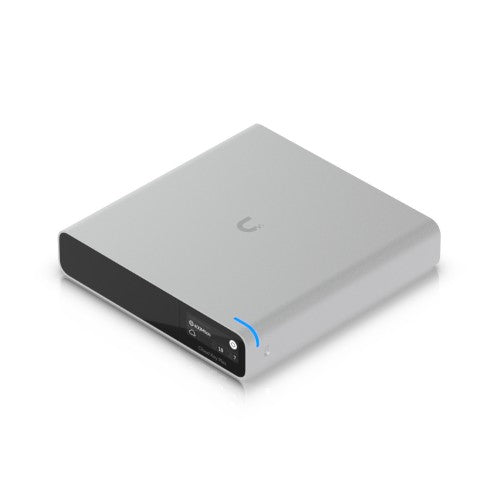

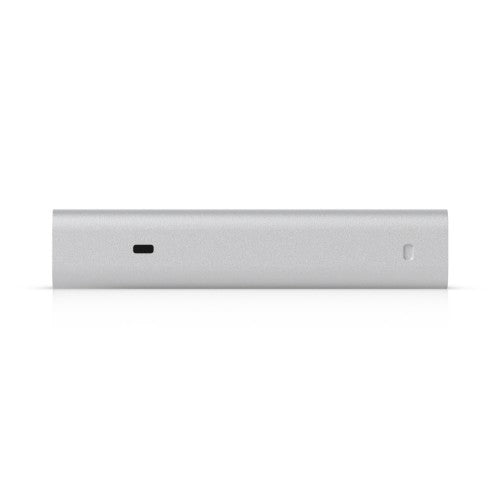

Compact UniFi Console that connects directly to the Site Manager at https://unifi.ui.com/ for powerful, multi-application site management.
Specifications
| Design |
|---|
| LED indicators |
Power |
| Mounting type |
Desktop/Rack mounting |
| Product colour |
Black, Gray |
| Enclosure material |
Aluminum |
| Features |
|---|
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Built-in processor |
Yes |
| Performance |
|---|
| Built-in processor |
Yes |
| Internal memory |
3000 MB |
| Flash memory |
32000 MB |
| Display type |
OLED |
| Control display unit |
Yes |
| Processor model |
Cortex-A53 |
| Processor manufacturer |
ARM |
| Processor family |
ARM Cortex |
| SSD capacity |
1 TB |
| Mounting type |
Desktop/Rack mounting |
| Product colour |
Black, Gray |
| Enclosure material |
Aluminum |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Bluetooth |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Management features |
|---|
| Reset button |
Yes |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Input current |
2 A |
| DC input voltage |
9 V |
| Power consumption (max) |
9.6 W |
| Weight & dimensions |
|---|
| Weight |
19.8 oz (560 g) |
| Width |
5.17" (131.2 mm) |
| Height |
1.07" (27.1 mm) |
| Depth |
5.28" (134.2 mm) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Technical details |
|---|
| Built-in processor |
Yes |
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Indication |
|---|
| LED indicators |
Power |
| Memory |
|---|
| Internal memory |
3000 MB |
| Flash memory |
32000 MB |
| Display |
|---|
| Display type |
OLED |
| Display diagonal |
1.42" |
| Control display unit |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
