InFocus MULTIMEDIA PROJECTOR, 4000 ANSI lumens, DLP, SVGA (800x600), 30000:1, 4:3, 23 - 300"
Description
InFocus MULTIMEDIA PROJECTOR. Projector brightness: 4000 ANSI lumens, Projection technology: DLP, Projector native resolution: SVGA (800x600). Light source type: Lamp, Service life of light source: 15000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Focal length range: 21.85 - 24.01 mm, Zoom type: Manual. Analog signal format system: NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM. Serial interface type: RS-232, HDMI connector type: Full-size, Service port type: USB Type-A
Specifications
| Projector |
|---|
| Projector native resolution |
SVGA (800x600) |
| Native aspect ratio |
4:3 |
| Supported aspect ratios |
4:3, 16:10, 16:9 |
| Screen size compatibility |
23 - 300" |
| Projection distance |
47.2 - 472.4" (1.2 - 12 m) |
| Contrast ratio (typical) |
30000:1 |
| Vertical synchronization (min) |
0.054 kHz |
| Vertical synchronization (max) |
0.085 kHz |
| Uniformity |
80% |
| Keystone correction, vertical |
40° |
| Horizontal synchronization (min) |
15 kHz |
| Horizontal synchronization (max) |
97.55 kHz |
| Projection technology |
DLP |
| Projector brightness |
4000 ANSI lumens |
| Smart projector |
No |
| Light source |
|---|
| Light source type |
Lamp |
| Service life of light source |
15000 h |
| Lamp type |
UHP |
| Lamp power |
203 W |
| Service life of light source (economic mode) |
10000 h |
| Lens system |
|---|
| Zoom ratio |
1.1:1 |
| Zoom capability |
Yes |
| Focus |
Manual |
| Focal length range |
21.85 - 24.01 mm |
| Throw ratio |
1.94 - 2.16:1 |
| Zoom type |
Manual |
| Video |
|---|
| Analog signal format system |
NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM |
| Full HD |
Yes |
| 3D |
Yes |

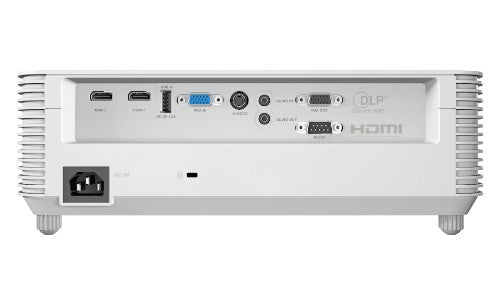

| Ports & interfaces |
|---|
| HDMI connector type |
Full-size |
| PC in (D-Sub) |
Yes |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
2 |
| Composite video in |
0 |
| Audio (L/R) in |
1 |
| Audio (L/R) out |
1 |
| S-Video inputs quantity |
1 |
| Serial interface type |
RS-232 |
| HDMI version |
1.4 |
| DVI port |
No |
| Component video (YPbPr/YCbCr) in |
0 |
| AC (power) in |
Yes |
| Service port type |
USB Type-A |
| USB 2.0 Type-A ports quantity |
1 |
| Network |
|---|
| Smart TV |
No |
| Ethernet LAN |
No |
| Wi-Fi |
No |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Interactive |
No |
| Noise level |
27 dB |
| Projection modes |
Ceiling, Front, Rear |
| Country of origin |
China |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Built-in woofer |
No |
| Design |
|---|
| Market positioning |
Education |
| Product type |
Standard throw projector |
| Housing material |
Plastic |
| Cable lock slot type |
Kensington |
| Product colour |
White |
| Cable lock slot |
Yes |
| Placement |
Ceiling, Desktop |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (max) |
267 W |
| Power source |
AC |
| Power consumption (typical) |
210 W |
| Power consumption (standby) |
0.5 W |
| Auto power off |
Yes |
| Certification |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Storage relative humidity (H-H) |
10 - 85% |
| Certificates |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Weight & dimensions |
|---|
| Package width |
15.6" (395 mm) |
| Package depth |
13.3" (337 mm) |
| Package height |
6.54" (166 mm) |
| Weight |
6.39 lbs (2.9 kg) |
| Width |
12.3" (313 mm) |
| Depth |
9.29" (236 mm) |
| Height |
3.82" (97 mm) |
| Package weight |
9.04 lbs (4.1 kg) |
| Packaging content |
|---|
| Tripod included |
No |
| Remote control included |
Yes |
| Mounting brackets included |
No |
| Manual |
Yes |
| Carrying case |
No |
| Cables included |
Power |
| Batteries included |
No |
| AC adapter included |
No |
| Interactive pen included |
No |
| Technical details |
|---|
| Warranty period |
2 year(s) |
