StarTech.com Crossbar Triple Monitor Desk Mount For Up To Three 27in Screens, VESA 75x75/100x100, Tool-Less Arm Adjustments
Key Features
- DESK MOUNT MONITOR ARM: Crossbar triple monitor VESA mount (75x75/100x100mm) supports up to 13.2lb (6kg) 27-inch displays; Articulating and height adjustable steel arm; C-clamp/grommet mounting
- SYNCHRONIZED MOTION: Micro height-adjustment screws on VESA plate to perfectly align monitors for a seamless visual experience; Ergonomic three-monitor mount w/toolless adjustments of +/-15° swivel, +5/-15° tilt, 360° screen rotation portrait/landscape
- ONE-TOUCH ADJUSTMENT: Spring-assisted arm w/height range of up to 13in (330mm); Built-in handle for smooth & effortless one-touch motion; Monitor stand includes tools to adjust the arm tension to match the monitor weight; Max arm extension 24.8in (630mm)

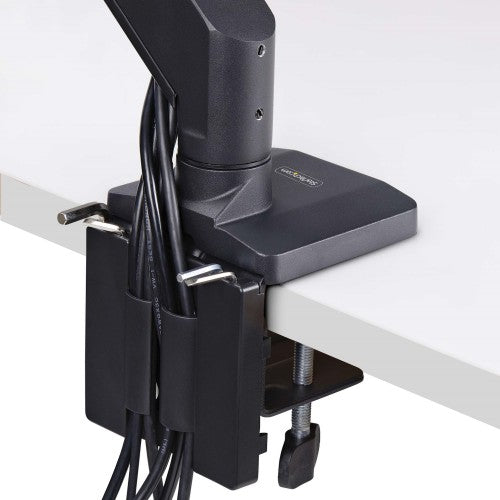

- MOUNTING OPTIONS: Interchangeable desk C-clamp or grommet mount for desks up to 3.1-inches (80mm) thick; When engaged, the rotation stop mechanism prevents the arm from rotating more than +/-90°(180° total), preventing the arm from hitting cubicle walls
- ORGANIZED WORKSPACE: Enhance productivity and multi-tasking on high-performance workstations; Multi-monitor mount with cable management channels along the arms to keep cables out of sight; A cable clip at the base helps maintain a tidy setup
Description

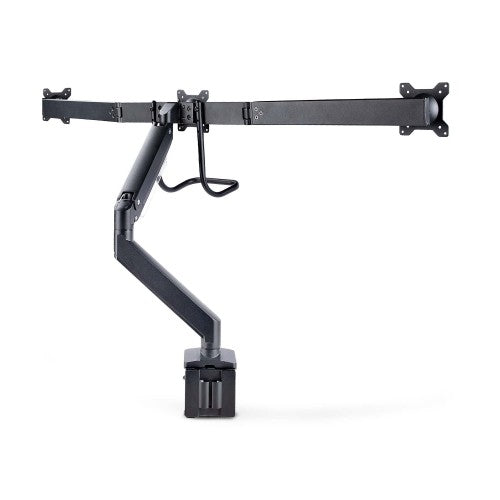

Triple monitor desk mount with support for up to 27" monitors with height adjustable crossbar

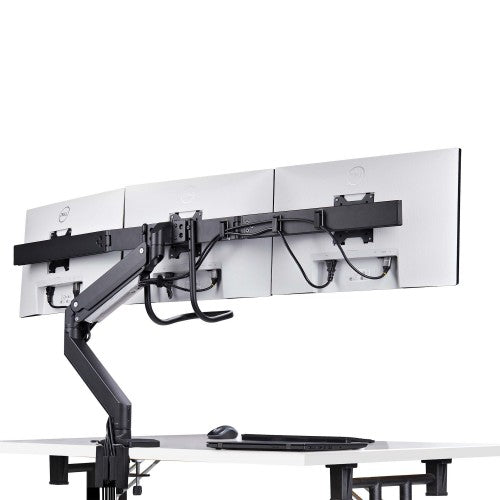

This crossbar monitor desk mount is designed to support up to three 27-inch displays, creating an ergonomic multi-monitor setup that provides an extensive viewing area for productivity. A built-in handle enables moving all monitors simultaneously, while the spring-assisted arm allows multiple adjustments to suit different ergonomic needs.
Height Adjustment with One Smooth Motion

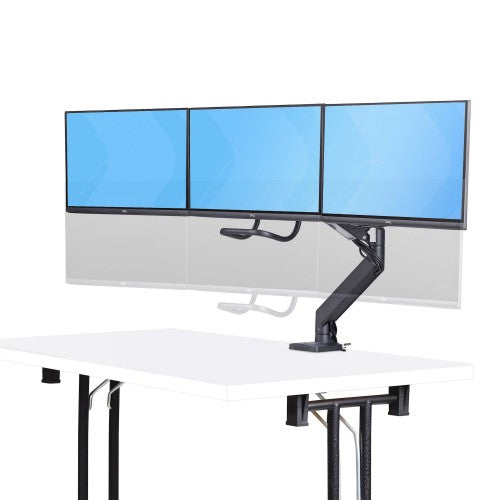

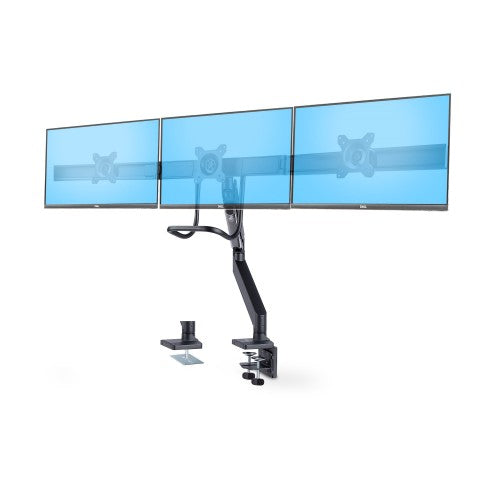

The spring arm enables toolless height adjustment of up to 13in (330mm) with effortless one-touch motion. The maximum arm extension is 24.8in (630mm), and the minimum arm extension is 4in (104mm). The weight capacity is 13.2lb (6kg) per VESA mount.
Visual Experience

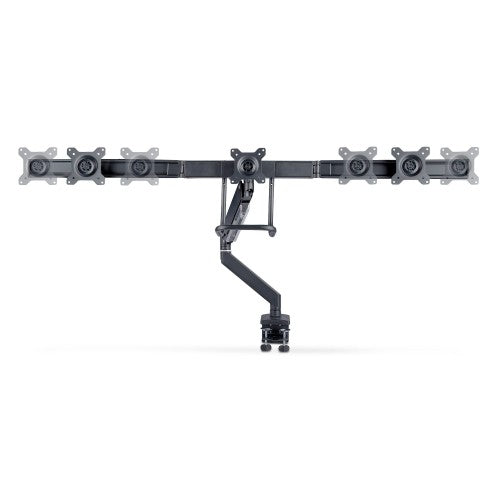

This triple monitor mount features micro height adjustment screws on the VESA plate that enable perfect alignment of all three monitors. This is ideal for bezel-less or slim bezel displays, helping to create a more extensive and seamless viewing area. The outer displays' VESA mounts slide along the crossbar, allowing further adjustments.
Range of Motion
The monitor crossbar allows toolless adjustments of +/-15° horizontal swivel of the outer displays. The monitors' VESA mounts enable +/-10° horizontal swivel, +5/-15° tilt, and 360° screen rotation for portrait or landscape orientations.
Cable Management

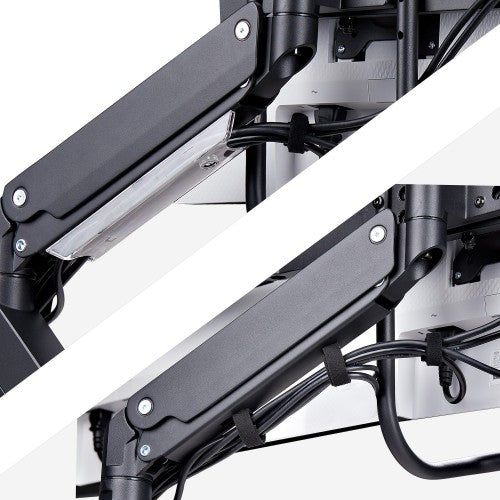

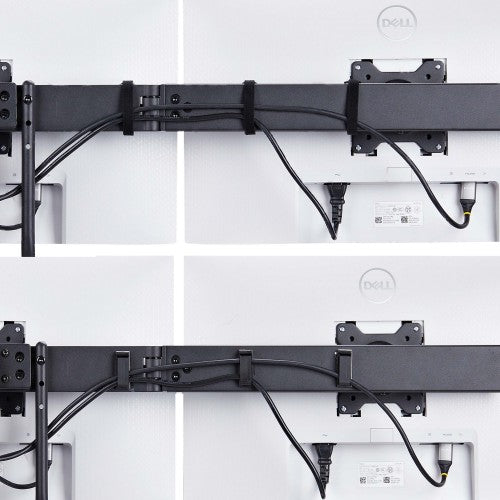

To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip at the base maintains an organized workspace.
The StarTech.com Advantage
Specifications
| Mounting |
|---|
| Maximum weight capacity (per display) |
13.2 lbs (6 kg) |
| Desk thickness (min) |
0.394" (1 cm) |
| Desk thickness (max) |
3.35" (8.5 cm) |
| Minimum screen size |
17" |
| Number of displays supported |
3 |
| Mounting type |
Desk |
| Minimum VESA mount |
2.95 x 2.95" (75 x 75 mm) |
| Maximum VESA mount |
3.94 x 3.94" (100 x 100 mm) |
| Mounting |
Clamp/Grommet |
| Maximum weight capacity |
39.7 lbs (18 kg) |
| Maximum screen size |
27" |
| Extension arm (max) |
20.7" (52.6 cm) |
| Ergonomics |
|---|
| Cable management |
Yes |
| Height adjustment |
Yes |
| Height adjustment range |
10.4 - 23.4" (265 - 595 mm) |
| Pivot angle |
-180 - 180° |
| Swivel angle range |
-10 - 10° |
| Tilt angle range |
-15 - 5° |
| Angle of rotation |
360° |
| Rotating |
Yes |
| Design |
|---|
| Product colour |
Black, Silver |
| Housing material |
Aluminum, Plastic, Steel |
| Anti-theft function |
No |
| Technical details |
|---|
| Mounting type |
Desk |
| Product colour |
Black, Silver |
| Cable management |
Yes |
| Weight & dimensions |
|---|
| Width |
24.8" (630 mm) |
| Depth |
55.1" (1400 mm) |
| Height |
23.4" (595 mm) |
| Weight |
18.5 lbs (8.4 kg) |
| Package width |
13" (330 mm) |
| Package depth |
24" (610 mm) |
| Package height |
5.91" (150 mm) |
| Package weight |
22 lbs (10 kg) |
| Packaging data |
|---|
| Package width |
13" (330 mm) |
| Package depth |
24" (610 mm) |
| Package height |
5.91" (150 mm) |
| Package weight |
22 lbs (10 kg) |
| Wrench type |
Hexagonal wrench |
| Screws included |
Yes |
| Wrench included |
Yes |
| Manual |
Yes |
| Packaging content |
|---|
| Wrench type |
Hexagonal wrench |
| Screws included |
Yes |
| Wrench included |
Yes |
| Manual |
Yes |
| Number of screws |
47 |
| Number of washers included |
14 |
| Grommet base plate included |
Yes |
| VESA mount included |
Yes |
| Number of cable clips |
6 |
| Logistics data |
|---|
| Master (outer) case width |
13" (330 mm) |
| Master (outer) case length |
24" (610 mm) |
| Master (outer) case height |
5.91" (150 mm) |
| Products per master (outer) case |
1 pc(s) |
| Other features |
|---|
| Mounting type |
Desk |
| Mounting |
Clamp/Grommet |
