5 x 10/100/1000 Mbps, auto MDI/MDIX, IEEE 802.3/u/x/ab, CDMA/CD, EU
Description

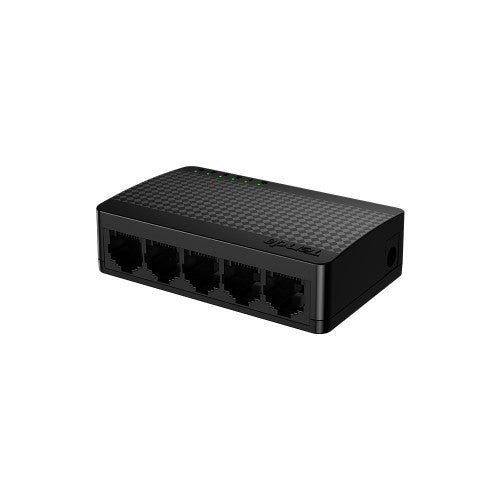

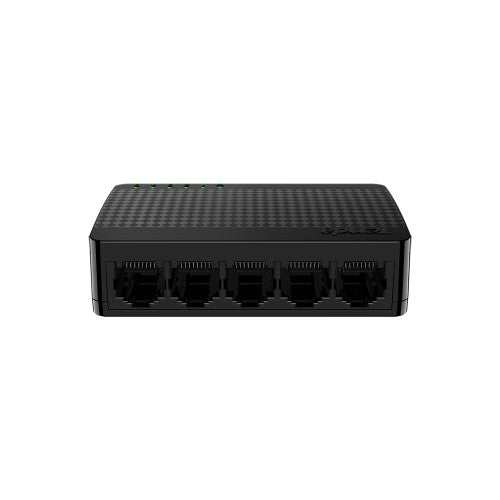

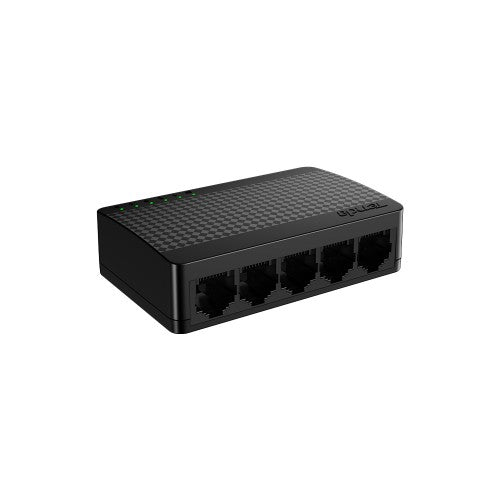

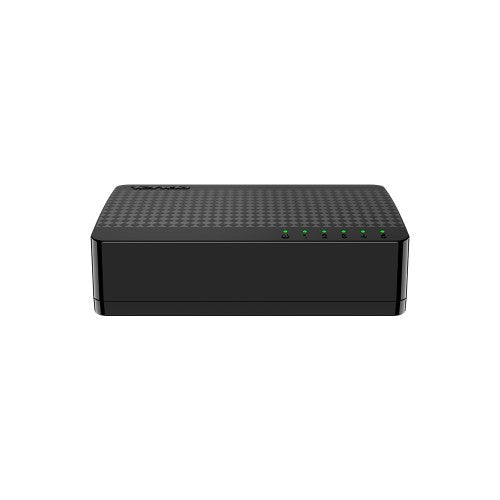

All Gigabit Ports, High-speed Network5-Port Gigabit Ethernet Switch SG105M
Full Gigabit Port, Full Speed ConnectionEquipped with 5*GE, the transmission rate of up to 2000Mbps in full duplex mode, with higher bandwidth processing capacity, can effectively solve the problems of video delay and picture loss in HD monitoring environment, easily loaded 400W HD surveillance cameras.
Small And Exquisite, Save More Space82*52*22mm super mini body, smaller than a bank card. It also supports a wall mount and can be placed anywhere.
Plug And Play, Convenient NetworkingEach port supports MDI/MDIX auto-flip. Plug in the networkcable to access the Internet, without unnecessary Settings, simple and convenient.
Wide ApplicationIt is compatible with network devices such as surveillance cameras, computers, printers, smart TVs, and smart game consoles to better meet the networking requirements of enterprises and household environments.
Specifications
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
5 |
| Console port |
RJ-45 |
| Power connector |
DC-in jack |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Network |
|---|
| Cable types supported |
Cat3, Cat5, Cat5e |
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards |
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| Data transmission |
|---|
| Jumbo frames |
15 |
| Packet buffer memory |
1 MB |
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Forwarding rate |
7.44 Mpps |
| Design |
|---|
| Wall mountable |
Yes |
| Product colour |
Black |
| Stackable |
No |
| LED indicators |
Activity, Link, Power |
| Housing material |
Plastic |
| Rack mounting |
No |
| Certification |
CE, FCC, RoHS |
| Power |
|---|
| Power consumption (max) |
1.7 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| Power source |
AC |
| Power connector |
DC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
3.23" (82 mm) |
| Depth |
2.05" (52 mm) |
| Height |
0.866" (22 mm) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Performance |
|---|
| Packet buffer memory |
1 MB |
| Stackable |
No |
| Technical details |
|---|
| Product colour |
Black |
| Stackable |
No |
| Housing material |
Plastic |
| Rack mounting |
No |
| Memory |
|---|
| Packet buffer memory |
1 MB |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Indication |
|---|
| LED indicators |
Activity, Link, Power |
| Packaging data |
|---|
| Quick start guide |
Yes |
