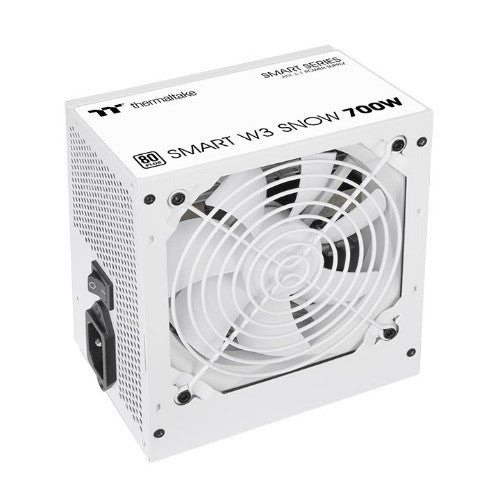

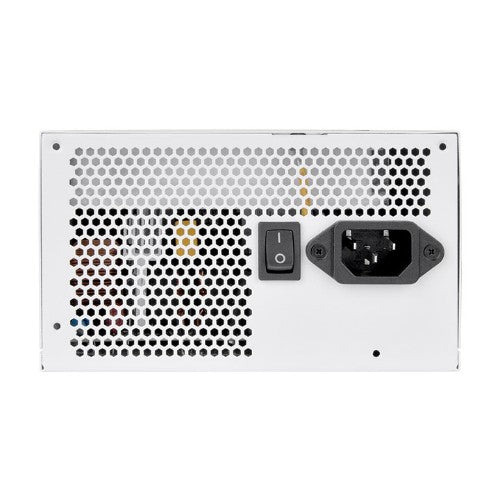

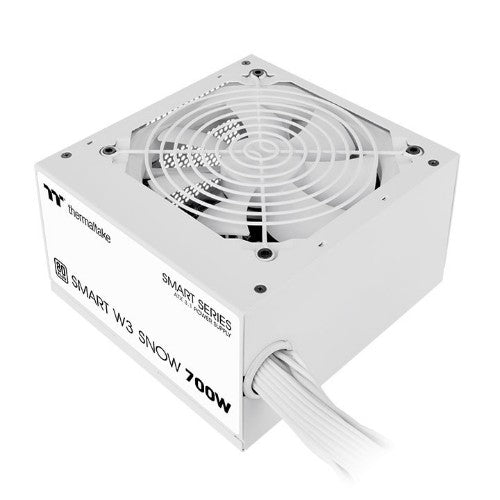

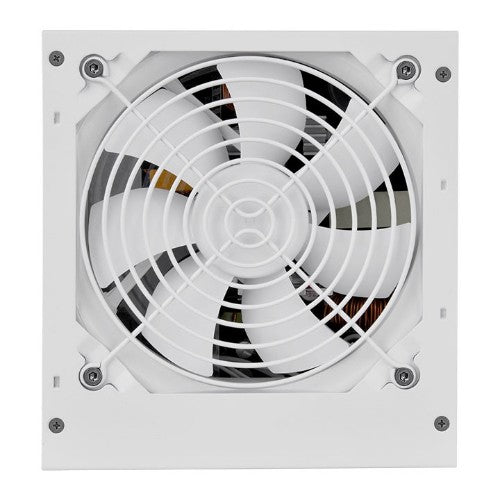

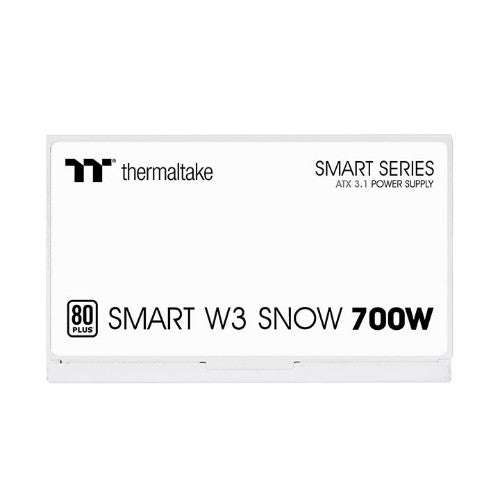

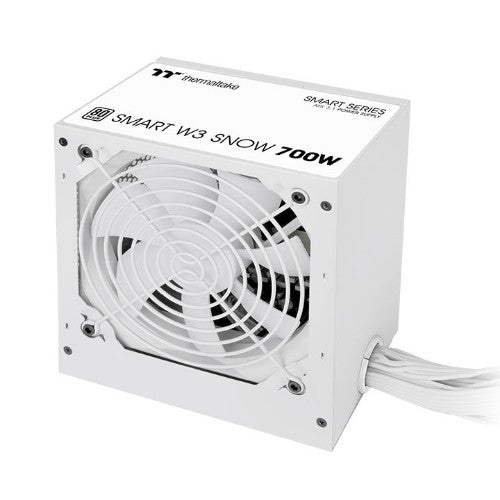

Thermaltake Smart W3, 700 W, 100 - 240 V, 50/60 Hz, 12 - 6 A, 12 A, 6 A
Description
Thermaltake Smart W3. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product color: Black, Cooling type: Active, Fan diameter: 4.72" (12 cm). Compliance certificates: CB, Federal Communications Commission (FCC), ICES, UKCA, cTUVus
Specifications
| Cooling |
|---|
| Fan diameter |
4.72" (12 cm) |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Performance |
|---|
| On/off switch |
Yes |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS |
| Purpose |
PC |
| ATX version |
3.1 |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
FDB |
| Design |
|---|
| 80 PLUS certification |
80 PLUS |
| Product colour |
Black |
| Fan diameter |
4.72" (12 cm) |
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| On/off fan switch |
Yes |
| Power |
|---|
| Total power |
700 W |
| Maximum input current (@220V) |
6 A |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
12 - 6 A |
| Power Factor Correction (PFC) type |
Active |
| Maximum input current (@110V) |
12 A |
| Combined power (+3.3V) |
110 W |
| Combined power (+12V) |
700 W |
| Combined power (+5V) |
110 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
18 A |
| Max output current (+12V) |
58.33 A |
| Max output current (+5V) |
18 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
3 A |
| Power protection features |
Over current, Over power, Over voltage, Short circuit, Under voltage |
| Hold time |
17 ms |
| Ports & interfaces |
|---|
| Motherboard power connector |
24-pin ATX |
| Number of SATA power connectors |
4 |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| PCI Express power connectors (6+2 pin) |
2 |
| CPU power connector (4+4 pin) |
Yes |
| Cabling type |
Non-Modular |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-40 - 55 °C |
| Operating relative humidity (H-H) |
20 - 85% |
| Storage relative humidity (H-H) |
10 - 95% |
| Certificates |
|---|
| Compliance certificates |
CB, Federal Communications Commission (FCC), ICES, UKCA, cTUVus |
| 80 PLUS certification |
80 PLUS |
| Weight & dimensions |
|---|
| Width |
5.91" (150 mm) |
| Depth |
5.51" (140 mm) |
| Height |
3.39" (86 mm) |
| Technical details |
|---|
| Compliance certificates |
CB, Federal Communications Commission (FCC), ICES, UKCA, cTUVus |
