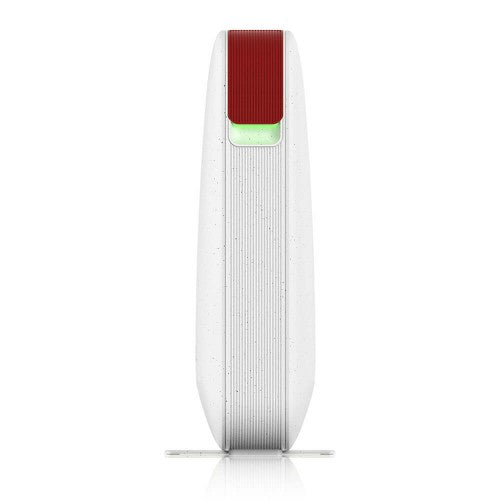

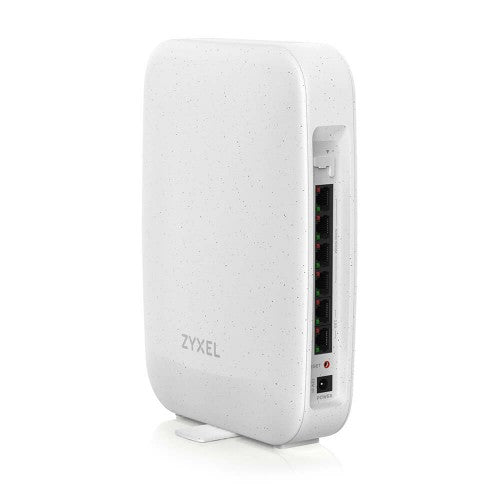

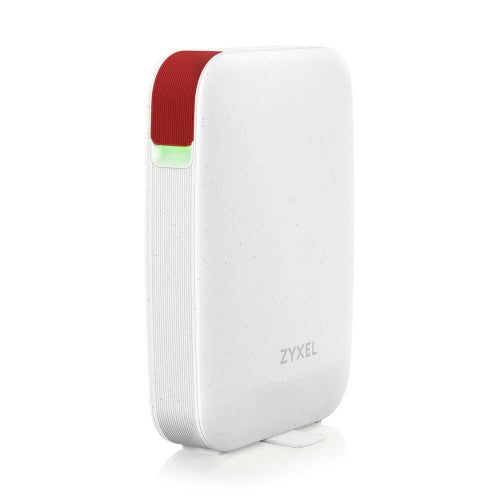

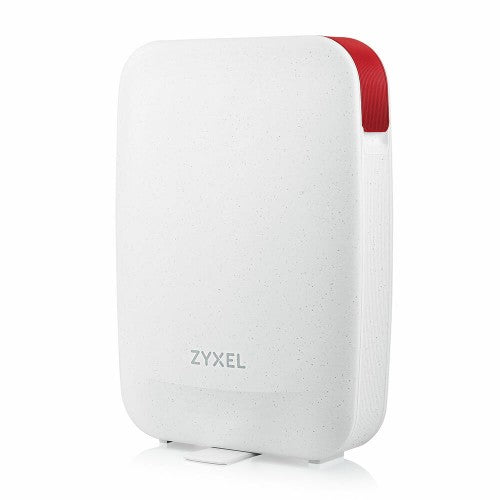

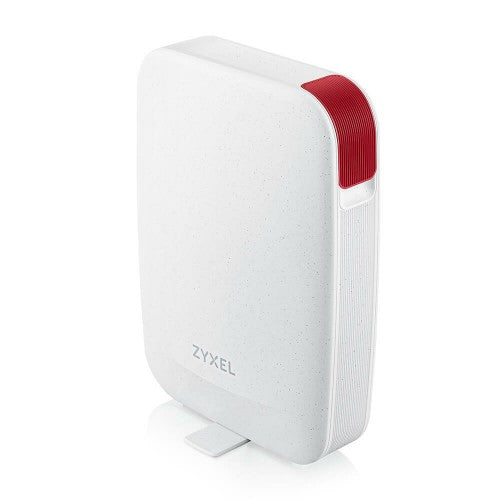

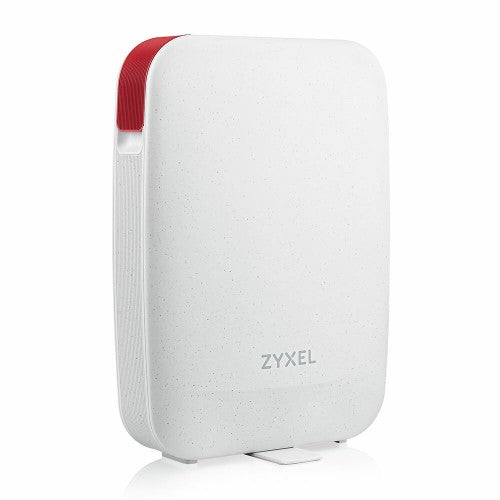

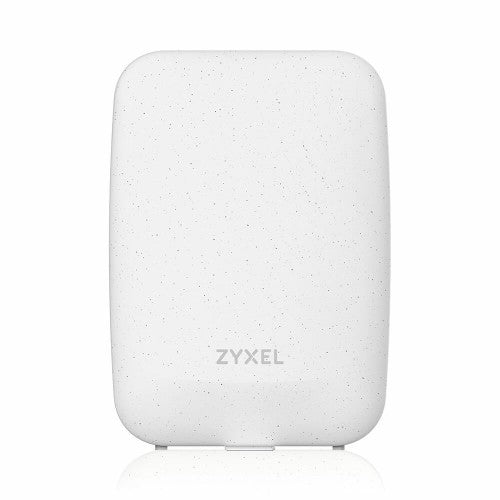

USG LITE 60AX
Key Features
- Get the Highlights
- USG LITE 60AX
- Security
- Subscription-free ransomware protection
- 2.5 GbE
- Dual 2.5 GbE mGig connectivity
- Nebula
- Intelligent cloud management
- WiFi 6
- Blazingly Fast WiFi 6
Reasons To Buy
Speed. Safety. Simplicity.
Get the Highlights
Security Subscription-free ransomware protection
2.5 GbE Dual 2.5 GbE mGig connectivity
Nebula Intelligent cloud management
WiFi & Blazingly Fast WiFi 6
Description
Speed. Safety. Simplicity.
Built-in WiFi 6 & Ransomware Protection
Specifications
| Ethernet LAN features |
|---|
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Network |
|---|
| Guest access |
Yes |
| Port forwarding |
Yes |
| Concurrent connections |
20000 |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Switching capacity |
2 Gbit/s |
| Number of users |
10 user(s) |
| Throughput |
2 Gbit/s |
| Forwarding rate |
2000 Mpps |
| Policy-based routing |
Yes |
| VLAN support |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Memory |
|---|
| Flash memory |
512 MB |
| Internal memory |
1000 MB |
| Performance |
|---|
| Concurrent connections |
20000 |
| Storage media |
Flash |
| Flash memory |
512 MB |
| Internal memory |
1000 MB |
| Built-in processor |
Yes |
| Processor frequency |
2000 MHz |
| WAN connection |
|---|
| SFP WAN |
No |
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| Management features |
|---|
| Web-based management |
Yes |
| Ports & interfaces |
|---|

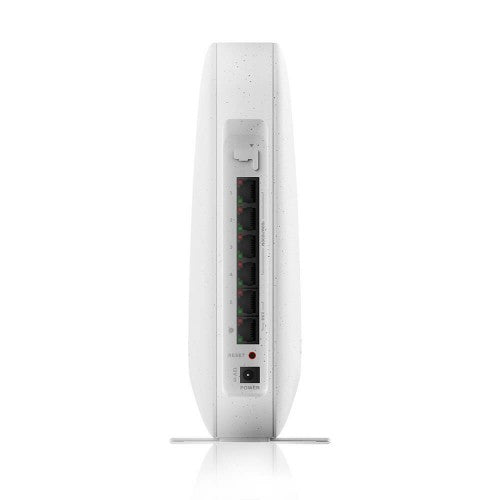

| Ethernet LAN (RJ-45) ports |
5 |
| Protocols |
|---|
| DHCP server |
Yes |
| DHCP client |
Yes |
| Technical details |
|---|
| On/off switch |
Yes |
| Rack mounting |
No |
| Built-in processor |
Yes |
| Processor frequency |
2000 MHz |
| Switching capacity |
2 Gbit/s |
| LED indicators |
Power |
| Product colour |
White |
| Package tare weight |
2.58 lbs (1.17 kg) |
| Policy-based routing |
Yes |
| Shipping (inner) case net weight |
3.26 lbs (1.48 kg) |
| Shipping (inner) case height |
2.87" (7.3 cm) |
| Products per shipping (inner) case |
1 pc(s) |
| Products per pallet (sea) |
240 pc(s) |
| Products per pallet (air) |
240 pc(s) |
| Pallet gross width |
31.5" (80 cm) |
| Pallet gross length |
47.2" (120 cm) |
| Pallet height (sea) |
86.6" (2.2 m) |
| Pallet height (air) |
86.6" (2.2 m) |
| Master (outer) cases per pallet (sea) |
24 pc(s) |
| Master (outer) cases per pallet (air) |
24 pc(s) |
| Introduction year |
2024 |
| Introduction month |
June |
| Warranty period |
2 year(s) |
| Security |
|---|
| Guest access |
Yes |
| Firewall |
Yes |
| Security algorithms |
WPA2 |
| VPN tunnels quantity |
5 |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| User Guide on CD-ROM |
No |
| Quick start guide |
Yes |
| Manual |
Yes |
| Cables included |
LAN (RJ-45) |
| Bundled software |
License free Ransomware & Cybersecurity |
| Package type |
Box |
| Software |
|---|
| Bundled software |
License free Ransomware & Cybersecurity |
| Features |
|---|
| Storage media |
Flash |
| Flash memory |
512 MB |
| Internal memory |
1000 MB |
| Built-in processor |
Yes |
| Processor frequency |
2000 MHz |
| Processor manufacturer |
Qualcomm |
| Design |
|---|
| Housing material |
Polycarbonate (PC) |
| Country of origin |
Taiwan |
| Wall mountable |
No |
| On/off switch |
Yes |
| Rack mounting |
No |
| LED indicators |
Power |
| Product colour |
White |
| Built-in display |
No |
| Touchscreen |
No |
| Power |
|---|
| Power source type |
DC |
| Output voltage |
12 V |
| Output current |
3 A |
| AC input voltage |
110 - 240 V |
| Power over Ethernet (PoE) |
No |
| Redundant power supply (RPS) support |
No |
| Power consumption (max) |
31 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
6.37" (161.7 mm) |
| Depth |
2.56" (65 mm) |
| Height |
9.02" (229 mm) |
| Weight |
24.9 oz (707 g) |
| Package width |
10.2" (259 mm) |
| Package depth |
10.5" (266 mm) |
| Package height |
2.87" (73 mm) |
| Package weight |
3.26 lbs (1.48 kg) |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Package type |
Box |
| Package tare weight |
2.58 lbs (1.17 kg) |
| AC adapter included |
Yes |
| Package width |
10.2" (259 mm) |
| Package depth |
10.5" (266 mm) |
| Package height |
2.87" (73 mm) |
| User Guide on CD-ROM |
No |
| Quick start guide |
Yes |
| Package weight |
3.26 lbs (1.48 kg) |
| Manual |
Yes |
| Cables included |
LAN (RJ-45) |
| Bundled software |
License free Ransomware & Cybersecurity |
| Logistics data |
|---|
| Shipping (inner) case net weight |
3.26 lbs (1.48 kg) |
| Shipping (inner) case height |
2.87" (7.3 cm) |
| Products per shipping (inner) case |
1 pc(s) |
| Products per pallet (sea) |
240 pc(s) |
| Products per pallet (air) |
240 pc(s) |
| Pallet gross width |
31.5" (80 cm) |
| Pallet gross length |
47.2" (120 cm) |
| Pallet height (sea) |
86.6" (2.2 m) |
| Pallet height (air) |
86.6" (2.2 m) |
| Master (outer) cases per pallet (sea) |
24 pc(s) |
| Master (outer) cases per pallet (air) |
24 pc(s) |
| Other features |
|---|
| Switching capacity |
2 Gbit/s |
