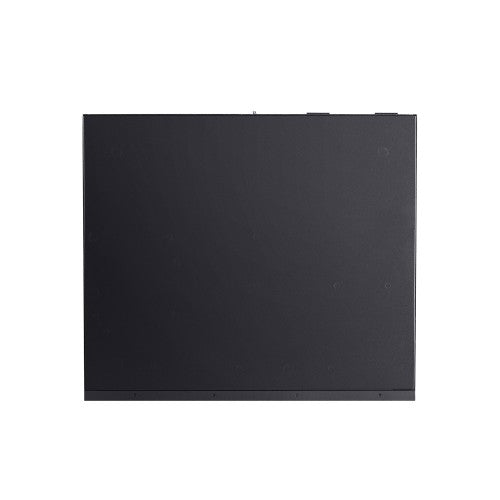

TP-Link Omada SG6428X network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

24x 10/100/1000 Mbps RJ45, 4x 10G SFP+, 2x USB 2.0, 1x RJ45, 1× USB Type-C, 1× RJ45 Management, 128 Gbps, 32 K MAC, 9 KB Jumbo, 440 x 380 x 44 mm

Key Features

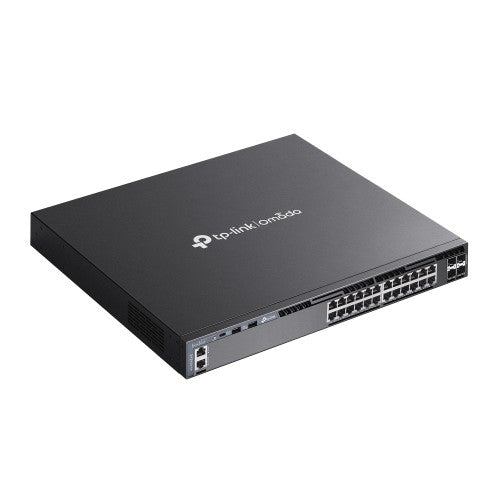

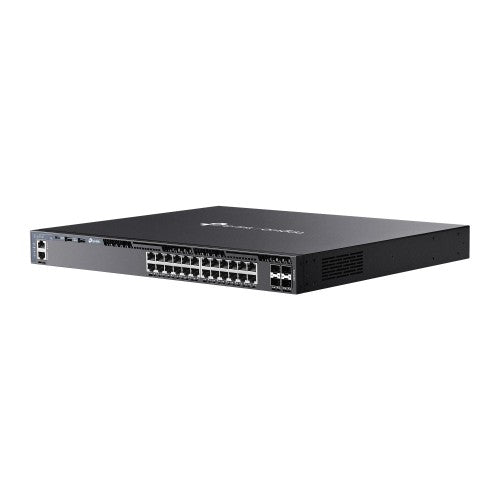

• 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
• 128 Gbps switching capacity per unit
• Physical stacking for built-in redundancy and performance
• L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Security Strategies: ACL, Port Security, DoS Defend, 802.1X
• Highly Available with two internal fixed power supplies, VRRP, and ERPS
• Centralized cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON

Description

What This Product Does
Omada SG6428X is a high-performance L3 managed switch tailored for the convergence layer, featuring L3 routing, fast 10 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 24× Gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG6428X offers a dependable networking solution for SMBs, enterprises, and ISPs.

High-speed Connectivity and Powerful Stacking
24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 512 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.

Highly Available

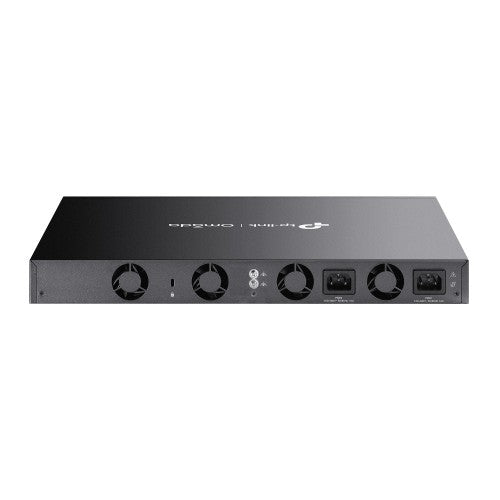

Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.

Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG6428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Specifications

Management features
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity	2
Console port	RJ-45/USB Type-C
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	4000
IP routing	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
10G support	No
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
IGMP snooping	Yes
IGMP entries	2048
Data transmission
Jumbo frames	9000
Packet buffer memory	3 MB
MAC address table	32000 entries
Switching capacity	128 Gbit/s
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	95.2 Mpps
Number of VLANs	4000
Security
Loop protection	Yes
Authentication	Auto VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
IGMP entries	2048
DHCP features	DHCP relay, DHCP snooping, DHCPv6 snooping
Multicast features
Multicast support	Yes
Design
Form factor	1U
Product colour	Black
Stackable	Yes
LED indicators	Yes
Rack mounting	Yes
Number of fans	4 fan(s)
Power
Power consumption (max)	28.4 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	96.91 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	4000
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Weight & dimensions
Width	17.3" (440 mm)
Depth	15" (380 mm)
Height	1.73" (44 mm)
Packaging content
Manual	Yes
Cables included	AC, LAN (RJ-45)
Performance
Packet buffer memory	3 MB
Stackable	Yes
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Memory
Packet buffer memory	3 MB
Indication
LED indicators	Yes
Packaging data
Manual	Yes
Cables included	AC, LAN (RJ-45)
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
