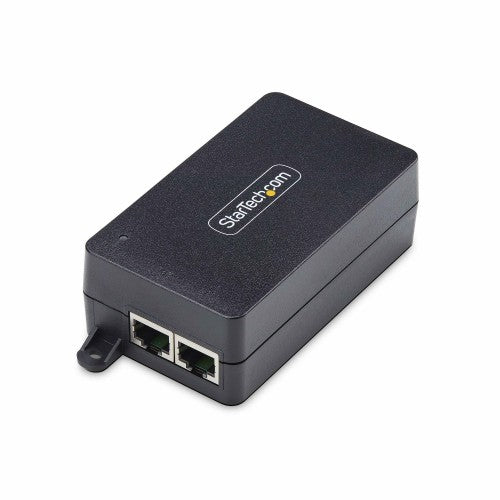

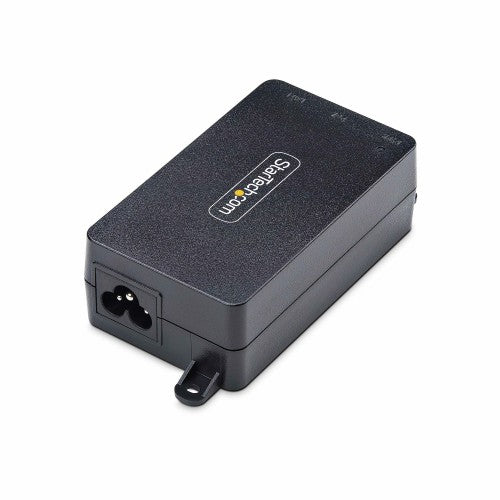

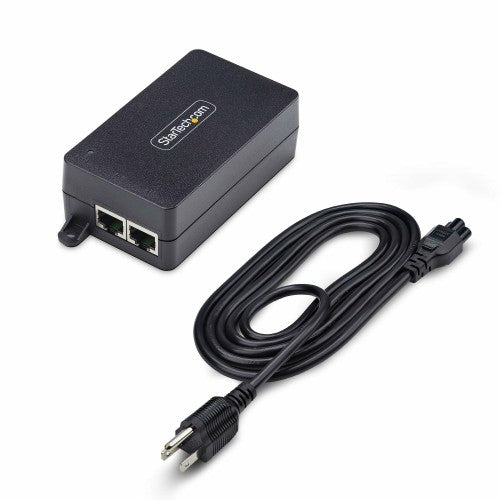

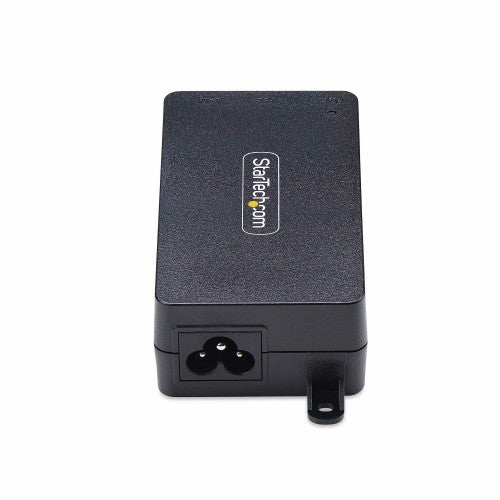

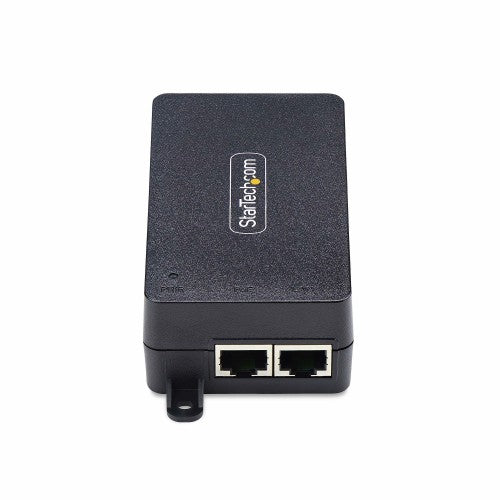

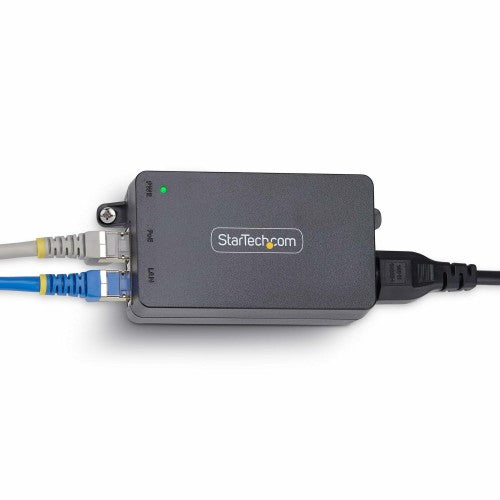

StarTech.com 1-Port 2.5GbE PoE+ Injector, 10M/100M/1G/2.5G Ethernet, PoE/PoE+ (802.3af/802.3at), Multi-Gigabit, Midspan, 30W
Key Features
- 2.5GbE POE INJECTOR: Multi-gigabit single port midspan PoE+ injector supports up to 2.5Gbps with auto-negotiation; TAA-compliant Power Sourcing Equipment supports up to 30W PoE/PoE+; Features level-4 ESD protection for reliable performance and durability
- NETWORK FLEXABILITY: Auto-negotiation between 2.5Gbps & 10/100/1000Mbps Ethernet; Deliver data/power to PoE devices up to 328ft/100m w/Cat5/5e/6/6a cabling; Unmanaged inline injector w/built-in LAN transformer for electrical isolation; 2K surge protection
- HASSLE-FREE INSTALLATION: Integrated anchor points for surface mounting; Streamline deployment without additional software/settings; Connect the PoE injector to the network (e.g., switch or router) & the remote PD via standard Cat5/e or Cat6/6a cabling
- APPLICATIONS: Enable data & power over a single RJ45 connection in high end enterprise access points such as high resolution IP cameras; Maintain existing network infrastructure while adding PoE functionality to support remote devices
- TECH SPECS: x2 RJ45 ports (data/data+power); 54VDC 0.6A output; 30W max output; Compliant with IEEE 802.3af and 802.3at; 10M/100M/1G/2.5G with auto negotiation; WoL/PXE/9K jumbo frames; Wall mountable; Dimensions 4x2.3x1.3-inch (100x58.4x33.4mm)
Description
Supply power and data to a remote Powered Device (PD) with this PoE/PoE+ injector
This 1-port 2.5GbE PoE+ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10Mbps, 100Mbps, 1Gbps, and 2.5Gbps. This TAA-compliant midspan inline injector can transmit network data and power up to 328ft (100m) for remote Powered Devices (PD).
Versatile PoE Injector
Multi-Gigabit single port PoE injector supports the IEEE 802.3af and 802.3at PSE standards, and delivers up to 30W output (54V DC, 0.6A). This enables seamless data and power transmission over Cat5/5e/6/6a to remote Powered Devices (PD) such as IP cameras, access control devices, remote kiosks (POSs), wireless access points (APs), PoE lighting, and digital signage. A built-in LAN Transformer reduces EMI to maintain strong, reliable signal strength across different environments.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch-100x58.4x33.4 mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation. Integrated anchor points allow for surface and wall mounting.
The StarTech.com Advantage
Specifications
| Network |
|---|
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Auto MDI/MDI-X |
Yes |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet interface type |
1.25 Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Cable types supported |
Cat5, Cat5e, Cat6, Cat6a |
| Chipset |
Monolithic Power Systems - MP3924 |
| Features |
|---|
| Surge protection |
Yes |
| Maximum operating distance |
3937" (100 m) |
| Product colour |
Black |
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| LED indicators |
Power |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Auto-negotiation |
Yes |
| Ports & interfaces |
|---|
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| Power |
|---|
| Output current |
0.6 A |
| Power over Ethernet (PoE) power per port |
30 W |
| AC adapter output voltage |
54 V |
| Power consumption (typical) |
32.4 W |
| Input current |
0.8 A |
| AC adapter input voltage |
100 - 240 V |
| Surge protection voltage |
2 kV |
| Technical details |
|---|
| Package width |
4.88" (124 mm) |
| Package height |
2.01" (51 mm) |
| Power over Ethernet (PoE) |
Yes |
| Power consumption (typical) |
32.4 W |
| Input current |
0.8 A |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet interface type |
1.25 Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Package weight |
12.8 oz (364 g) |
| Package depth |
8.27" (210 mm) |
| Package width |
4.88" (124 mm) |
| Package height |
2.01" (51 mm) |
| Weight |
3.53 oz (100 g) |
| Packaging data |
|---|
| Package weight |
12.8 oz (364 g) |
| Package depth |
8.27" (210 mm) |
| Package width |
4.88" (124 mm) |
| Package height |
2.01" (51 mm) |
| Packaging content |
|---|
| Power cord included |
Yes |
| Quick installation guide |
Yes |
| Indication |
|---|
| LED indicators |
Power |
| Logistics data |
|---|
| Master (outer) case width |
20.5" (520 mm) |
| Master (outer) case length |
11.2" (285 mm) |
| Master (outer) case height |
17.9" (455 mm) |
| Products per master (outer) case |
40 pc(s) |
