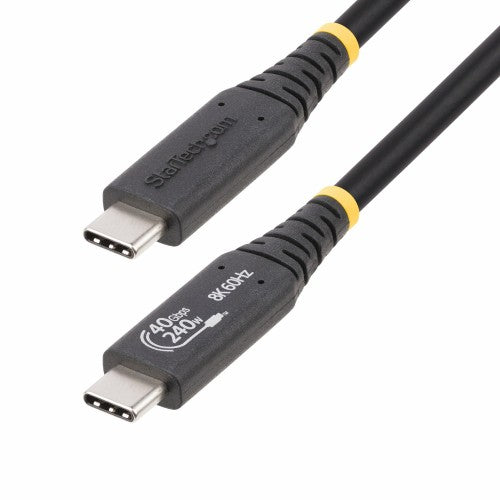

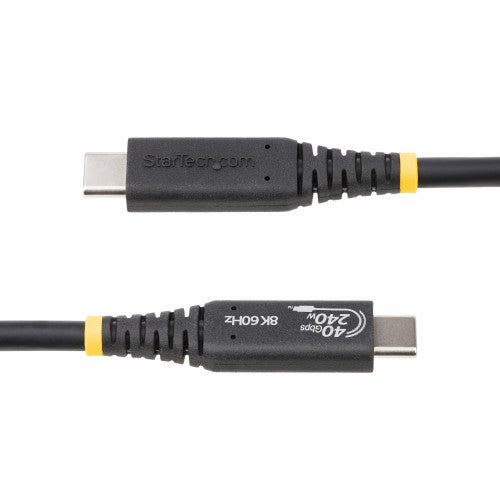

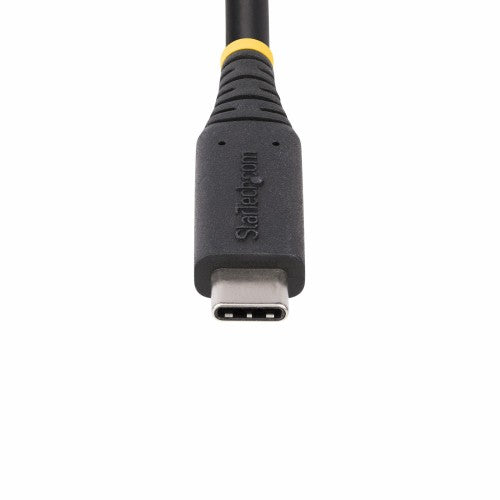

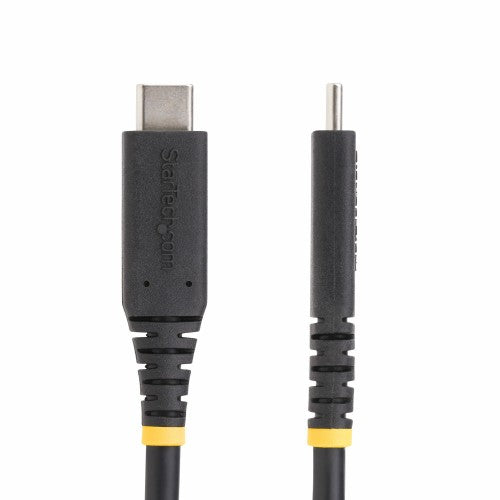

StarTech.com 3.3ft (1m) USB4 Cable 40Gbps, 240W (5A) PD, 8K 120Hz/4K 240Hz DP Alt Mode, USB-IF Certified, Thunderbolt Compat.
Key Features

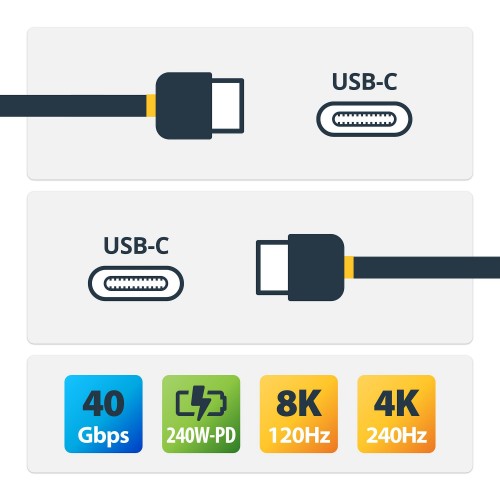

- HIGH PERFORMANCE: Deliver full USB4 capabilities using this USB-C Cable; Enhance productivity with 8K/4K video, 40Gbps, and 240W charging over a single connection; Connector markings identify data/video/power specs; Choose the right USB4 cable at-a-glance
- GUARANTEED COMPATIBILITY: Universal compatibility w/USB-C and Thunderbolt devices; USB-IF certified with E-Marker chip for safe and consistent Power Delivery output to USB-C devices; Supports DisplayPort 1.4 with DSC; Compliant with PCIe 3.0
- QUALITY CONSTRUCTION: Nickel-plated connectors with robust strain reliefs for durability; Coaxial wire with Mylar shield for enhanced EMI protection; Flexible TPE cable jacket is environmentally friendly, non-toxic, halogen-free, and RoHS compliant
- APPLICATIONS: Ideal for high-performance laptops requiring extra power, including 16in MacBook Pro M3 Pro/M3 Max; Seamless connectivity with USB-C and Thunderbolt laptops, docking stations, portable monitors, and USB-C mobile devices
- SPECS: 3.3-foot (1-meter); USB4 (40 Gbps); 240W PD 3.1 Extended Power Range (EPR); Up to 8K 60Hz, 4K 120Hz; DisplayPort 1.4 DP Alt Mode w/DSC/HDR/HBR3; PCIe 3.0; Backward Compatible with USB 3.2/3.0/2.0; 30/34 AWG; Cable Outer Diam.: 0.19in (4.8mm)
Description
Use this USB-IF Certified USB-C cable for fast and reliable connections to your USB4 devices
Connect reliably to USB Type-C® (USB4), Thunderbolt™; and PCIe-enabled devices, delivering up to 40Gbps, 8K/4K video, and 240W of Power Delivery. The connector markings enable quick visual identification, distinguishing this USB4 cable from other similar-looking or unmarked USB-C cables. Eliminate guesswork and always choose the appropriate cable to support full USB4 capabilities.
240W Extended Power Range
The USB4 Charger Cord supports up to 240W of Extended Power Range (EPR) Power Delivery 3.1. It is ideal for high performance USB-C laptops requiring extra power, such as 16in MacBook Pro M3 Pro/M3 Max. Connect the cable from the laptop to a USB-C wall charger or compatible docking station.
Establish Fast and Stable Power/Data Connections
This USB4 Type-C cable is USB-IF certified for guaranteed USB-C compatibility. It reliably delivers consistent transfer rates and power output. It facilitates 40Gbps data transfer to external USB-C-enabled external storage devices or serves as a single-cable connection from a USB-C dock to a laptop.
This cable has undergone rigorous USB-IF compliance testing to meet USB4 specifications. This includes electrical and mechanical standards which ensure a reliable, high-quality cable for USB-C devices. StarTech.com's cables are designed to meet the technical requirements of wide variety of applications. Our in-house specialists subject our products to multiple rounds of comprehensive testing for interoperability and reliability with the latest devices.

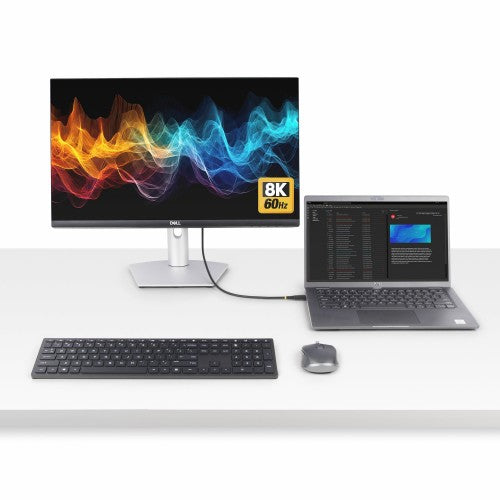

Experience 8K Video with DisplayPort 1.4 Alt Mode
The USB4 cable supports up to 8K 60Hz video over DisplayPort 1.4 Alt Mode with DSC, HDR, and HBR3, and is compatible with 4K 60Hz and lower resolutions.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Cable shielding |
Aluminum mylar foil |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| AWG wire size |
26/32 |
| USB version |
USB4 Gen 3x2 |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Cable length |
39.4" (1 m) |
| Connector contacts plating |
Nickel |
| Maximum data transfer rate |
40000 Mbit/s |
| Product colour |
Black |
| Cable type |
Round cable |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| USB Power Delivery (USB PD) |
Yes |
| Cable jacket material |
Thermoplastic elastomer (TPE) |
| USB Power Delivery up to |
240 W |
| USB Power Delivery revision |
3.1 |
| Maximum refresh rate |
120 Hz |
| High Dynamic Range (HDR) supported |
Yes |
| DisplayPort version |
1.4 |
| Display Stream Compression (DSC) |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Maximum data transfer rate |
40 Gbit/s |
| Input voltage |
48 V |
| Cable diameter |
0.189" (4.8 mm) |
| Input current (max) |
5 A |
| Weight |
1.62 oz (46 g) |
| Quantity per pack |
1 pc(s) |
| Power |
|---|
| Input voltage |
48 V |
| Input current (max) |
5 A |
| Weight & dimensions |
|---|
| Cable diameter |
0.189" (4.8 mm) |
| Cable length |
39.4" (1 m) |
| Weight |
1.62 oz (46 g) |
| Package width |
5.12" (130 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.512" (13 mm) |
| Package weight |
1.83 oz (52 g) |
| Packaging data |
|---|
| Package width |
5.12" (130 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.512" (13 mm) |
| Package weight |
1.83 oz (52 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Ports & interfaces |
|---|
| USB version |
USB4 Gen 3x2 |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Connector contacts plating |
Nickel |
| Data transmission |
|---|
| Maximum data transfer rate |
40000 Mbit/s |
| Technical details |
|---|
| Product colour |
Black |
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
| Other features |
|---|
| Product colour |
Black |
| Cable type |
Round cable |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
| Logistics data |
|---|
| Products per master (outer) case |
150 pc(s) |
| Master (outer) case width |
12.4" (315 mm) |
| Master (outer) case length |
12.2" (310 mm) |
| Master (outer) case height |
13" (330 mm) |
