Mid Tower, ATX, 4x 120 mm, ARGB, 2.5”/3.5", 7 Expansion Slots, USB, 410 x 285 x 442 mm, 6.93 kg, Black
Description
The View 380 TG ARGB focuses on maximizing viewing angles of components thanks to front and side tempered glass panel, and a spacious dual chamber design, while still maintaining mid tower height. Along with that the View 380 TG ARGB supports Universal ATX and comes with four 120mm ARGB Lite Fans preinstalled.

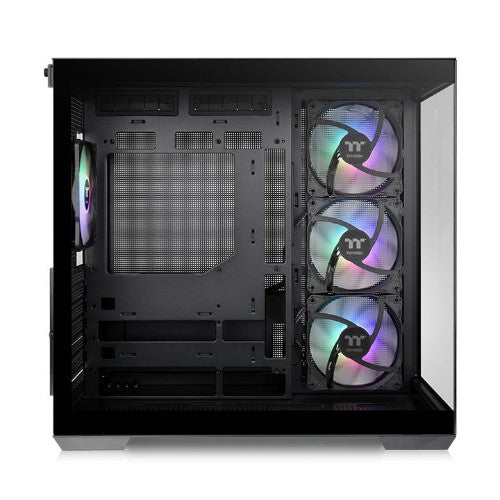

View 380 TG ARGB Mid Tower ChassisDual ChamberFeaturing a dual chamber layout, the View 380 provides plenty of room for installation of components and cooling in the main chamber. And in the rear chamber cable management is made easy even when using hidden connector motherboards and even provides additional mounting points for storage too.
Take in the ViewTake in the view thanks to front and left tempered glass panels for better visibility of your build inside.

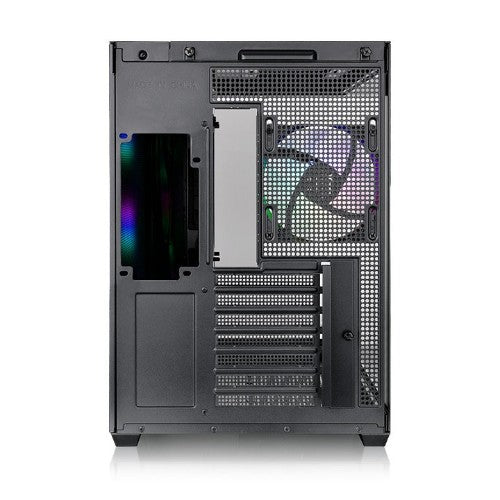

Universal ATX SupportWith new innovative motherboard layouts, we wanted the View 380 to be ready for current and future designs whether it’s a standard ATX configuration or a hidden connector board. To support this the View 380 implements our Universal ATX layout, which features additional cutouts to allow access in the rear of the case for connectors.

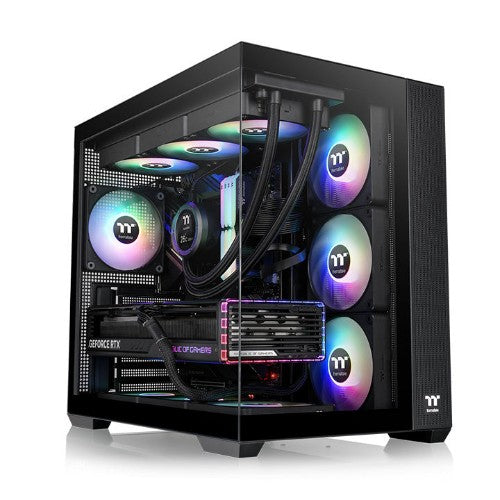

Up to 360mm Radiator SupportThe View 380 is capable of accepting up to a 360mm radiator on the top of the chassis as well as up to a 280mm radiator on the side of the chassis. Check out the links below for some options from TT.

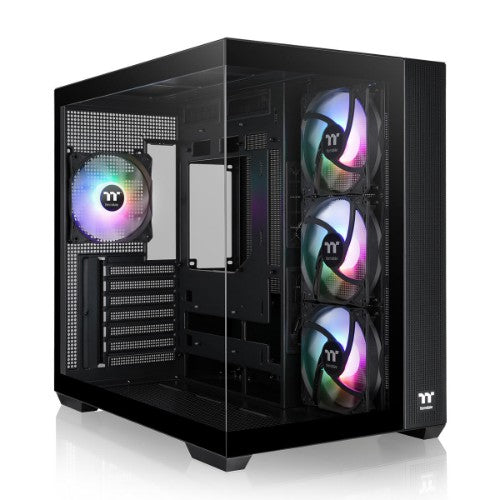

Four 120mm ARGB Lite Fans Pre-InstalledThe View 380 comes with four 120mm ARGB Lite Fans pre-installed, with one at the rear of the chassis to provide exhaust and an additional three mounted on the side to provide intake. Daisy Chain connections for 5V ARGB and PWM fan control make wiring simple and lighting can be controlled through motherboard software from Asus, Gigabyte, MSI and ASRock.
Storage for Your StorageThe View 380 supports up to two 2.5" SSDs on the outside of the support tray and can support one 3.5" HDD on the inside of the support tray.

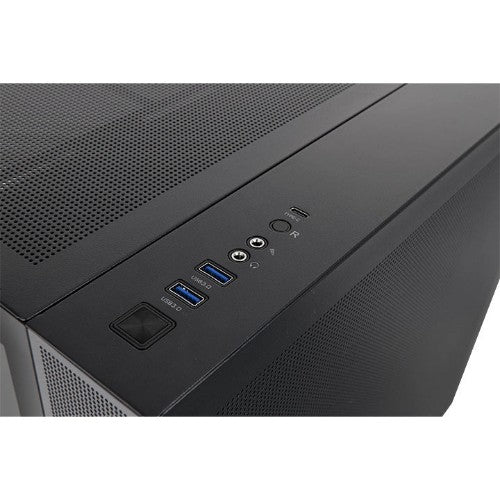

Handy I/O PortsTwo USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.
Sync with Motherboard RGB SoftwareDesigned to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers.
Specifications
| Technical details |
|---|
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
1 |
| Number of 2.5" bays |
2 |
| Number of internal 3.5" bays |
1 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ITX |
| Supported HDD sizes |
2.5,3.5" |
| Suitable for |
Gaming |
| Side window |
Yes |
| Reset button |
Yes |
| Product colour |
Black |
| Number of expansion slots |
7 |
| Maximum CPU cooler height |
6.3" (16 cm) |
| Maximum graphics card length |
16.3" (41.5 cm) |
| Maximum PSU length |
7.87" (20 cm) |
| Type |
PC |
| Form factor |
Midi Tower |
| Material |
|---|
| Material |
SPCC, Tempered glass |
| Indication |
|---|
| LED indicators |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Ergonomics |
|---|
| Reset button |
Yes |
| LED indicators |
Yes |
| On/off button |
Yes |
| Design |
|---|
| Number of external 5.25" bays |
0 |
| Material |
SPCC, Tempered glass |
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
1 |
| Number of 2.5" bays |
2 |
| Number of internal 3.5" bays |
1 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ITX |
| Suitable for |
Gaming |
| Side window |
Yes |
| Reset button |
Yes |
| LED indicators |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Product colour |
Black |
| Number of expansion slots |
7 |
| Maximum CPU cooler height |
6.3" (16 cm) |
| Maximum graphics card length |
16.3" (41.5 cm) |
| Maximum PSU length |
7.87" (20 cm) |
| Type |
PC |
| Form factor |
Midi Tower |
| On/off button |
Yes |
| Tempered glass panel(s) |
Yes |
| Power supply |
|---|
| Supported power supply form factors |
PS2 |
| Power supply included |
No |
| Power supply location |
Side |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Audio input |
Yes |
| Audio output |
Yes |
| USB 2.0 ports quantity |
0 |
| Cooling |
|---|
| Front radiator installed |
No |
| Rear radiator installed |
No |
| Rear radiator sizes supported |
120 mm |
| Top radiator installed |
Yes |
| Top radiator sizes supported |
120,240,360 mm |
| Side fans installed |
3x 120 mm |
| Number of side fans supported (max) |
3 |
| Side fans diameters supported |
120,140 mm |
| Rear fans installed |
1x 120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120 mm |
| Number of top fans supported (max) |
3 |
| Top fans diameters supported |
120 mm |
| Number of bottom fans supported (max) |
3 |
| Bottom fans diameters supported |
120 mm |
| Fan speed |
0 - 1000 RPM |
| Liquid cooling capability |
Yes |
| Bottom radiator sizes supported |
120,240,360 mm |
| Side radiator sizes supported |
120,140,240,280 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
|---|
| Width |
11.2" (285 mm) |
| Depth |
17.4" (442 mm) |
| Height |
16.1" (410 mm) |
| Weight |
15.3 lbs (6.93 kg) |
