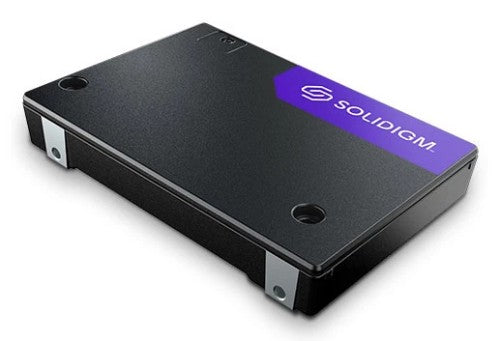

Solidigm D7-PS1010 3.84 TB U.2 PCI Express 5.0 NVMe 3D TLC NAND

Enterprise SSD, 3.84 TB, PCI Express 5.0 x4 (NVMe), U.2, black, 140 g

Description

Next-Gen Performance and Efficiency​

Combining class-leading performance and performance optimizations for real-world IO conditions, the Solidigm D7-PS1010 accelerates enterprise and cloud workloads such as AI/ML, HPC, databases, general purpose servers, and more. Designed for the long run, the D7-PS1010 delivers up to 90% IOPS consistency across the life of the drive.

PCIe 5.0 Performance Done Right

With powerful PCIe 5.0 performance, Solidigm D7-PS1010 accelerates a wide range of cloud and enterprise applications. Built to excel at every stage of the AI data pipeline, the Solidigm D7-PS1010 provides up to 50% higher throughput in certain pipeline phases.

Storage Optimized for the AI Era

Artificial Intelligence is everywhere and it’s creating higher demands for data infrastructure performance and efficiency. Our leading combination of high capacity and high- performance drives helps our partners save power and space. Step up your AI workloads with the Solidigm SSD portfolio optimized for the AI era.

Unmatched Performance Efficiency

With class-leading performance and up to 70% better IOPS/watt than leading competitors, the Solidigm D7-PS1010 improves operational efficiency without sacrificing performance. This drive delivers world-class consistency, quality, and reliability.


Fast and Flexible

Whether it’s a PCIe 5.0 or PCIe 4.0 solution, the class-leading performance of the Solidigm D7-PS1010 accelerates a wide range of workloads. Available in U.2 and E3.S form factors, these products enable both legacy and modern chassis designs to realize their fullest value.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	3.84 TB
Memory type	3D TLC NAND
Data transmission
Random write (4KB)	315000 IOPS
Random read (4KB)	3100000 IOPS
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^18 bits read
Mean time between failures (MTBF)	2500000 h
Features
Interface	PCI Express 5.0
Component for	Server/workstation
NVMe	Yes
PCI Express interface data lanes	x4
SSD capacity	3.84 TB
Memory type	3D TLC NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^18 bits read
Random write (4KB)	315000 IOPS
Random read (4KB)	3100000 IOPS
Mean time between failures (MTBF)	2500000 h
SSD form factor	U.2
Random latency - read (up to)	60 µs
Random latency - write (up to)	7 µs
Sequential latency - read (up to)	60 µs
Sequential latency - write (up to)	7 µs
Use conditions	Server/Enterprise
Drive writes per day (DWPD)	1
Power
Power consumption (max)	19 W
Power consumption (idle)	5 W
Performance
Interface	PCI Express 5.0
Component for	Server/workstation
NVMe	Yes
PCI Express interface data lanes	x4
SSD capacity	3.84 TB
Memory type	3D TLC NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^18 bits read
Random write (4KB)	315000 IOPS
Random read (4KB)	3100000 IOPS
Mean time between failures (MTBF)	2500000 h
Design
Component for	Server/workstation
SSD form factor	U.2
Weight & dimensions
Weight	4.94 oz (140 g)
Operational conditions
Operating temperature (T-T)	0 - 77 °C
Operating shock	1000 G
Non-operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Technical details
Interface	PCI Express 5.0
Operating temperature (T-T)	0 - 77 °C
Operating shock	1000 G
Non-operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
SSD form factor	U.2
Sequential writing speed	8200 MB/s
Sequential reading	14500 MB/s
Other features
Sequential writing speed	8200 MB/s
Sequential reading	14500 MB/s
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^18 bits read
