StarTech.com 16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal, DIN/Surface/Rack Mountable, Dual-Host Hub/Switch
Key Features
- 16-PORT INDUSTRIAL USB HUB: USB 3.2 Gen 1 hub w/metal housing for durability in harsh environments & Level 4 ESD protection (15kV air/8kV contact); 16x USB-A Ports; 5Gbps shared; 10ft long host cable; USB Event Monitoring utility (available for download)
- FLEXIBLE MOUNTING OPTIONS: EIA-310 compliant mounting brackets for 1U 19" rackmount installation; Built-in mounting ears for wall/desk installation; DIN-rail mounting hardware; Screw-lock-enabled connectors on all ports facilitate reliable connections
- INCLUDED 160W POWER ADAPTER: The rugged USB Hub is powered by the included power adapter using the built-in DC 2-wire terminal block; Overcurrent protection protects connected devices from overdrawing power; DC barrel jack for optional power redundancy
- POWER & CHARGE: When connected to the power adapter, the multiport USB expansion hub supports BC 1.2 charging; 120W is shared across all ports with 16 ports simultaneously charging at max 1.5A/7.5W per port, or up to 8 ports at max 2.0A/10W charging
- DUAL-HOST SWITCH: With a 2-port host switch, this USB hub can connect to two separate desktop or laptop computers and seamlessly switch between primary host devices, using the manual rocker switch
Description
Add 16x USB 3.2 Gen 1 (5 Gbps) ports to two host computers, using this DIN-rail/Surface/Rack-mountable industrial hub
The 16-Port Industrial USB 5Gbps Hub with Power Adapter features 16 downstream USB-A ports. The rugged all-metal construction is suitable for use in industrial rackmount applications. Level-4 Electrostatic Discharge (ESD) protection safeguards against 15kV Air / 8kV Contact discharges. The hub features a 2-port host switch, enabling users to switch between two host devices.
Engineered for Use in Industrial Environments
This USB hub is built to withstand harsh industrial environments. It features a rugged steel housing that protects against physical hazards such as drops and impacts. It is equipped with Level-4 ESD protection, with 15kV air and 8kV contact discharge ratings, to safeguard against damage caused by static electricity.
Three Mounting Options

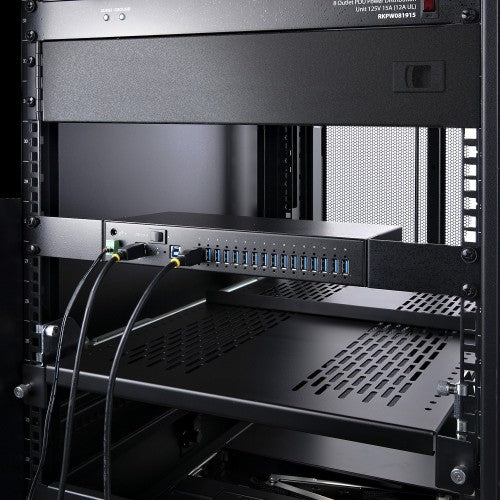

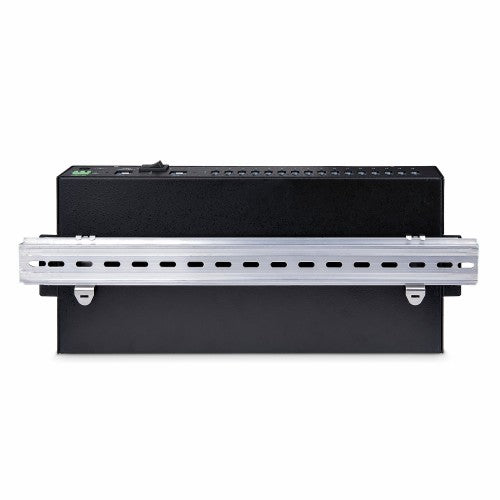

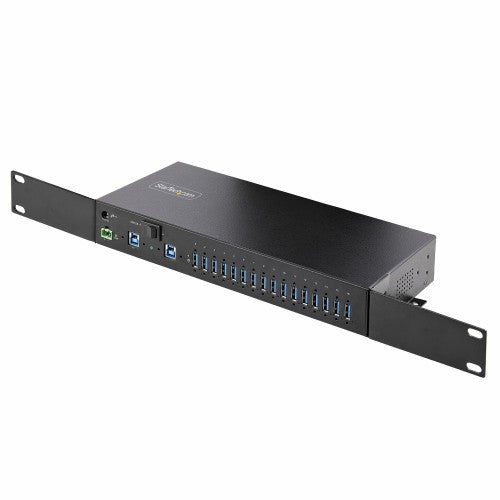

The 16-Port USB hub can be attached to a surface (e.g., atop/underneath a desk or wall mounted), rack mounted, or DIN-rail mounted. The 19" rackmount rails are compliant with EIA-310-D standards, ensuring compatibility with standard racks. These rails can be used to install the USB hub into 1U of rack space for applications in data centers and server rooms. Mount industrial automation and control equipment in an electrical enclosure or cabinet, using the standard DIN-rail (Top Hat/TH) mounting hardware.
Power Adapter Included
This USB hub includes a 160W power adapter that connects to the 2-wire terminal block connector. When connected to the power adapter, the USB hub supports USB Battery Charging Specification 1.2 (BC 1.2) with 120W shared across all ports. Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports a maximum of 3.0A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used.
For optional power redundancy, the USB hub features a secondary power input where a barrel-power adapter (not included) can be connected. The barrel-power input supports a 12-to-24-volt input range, and can be ideal for mission critical applications.
Dual-Host Switch
The USB Hub connects to two desktop or laptop computers, and features a dual-host switch enables easy toggling between the host devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. This product utilizes the USB Event Monitoring utility. Use this utility to track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Host interface |
2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Terminal block port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
16 |
| Hub interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Ports quantity |
16 |
| Features |
|---|
| Plug and Play |
Yes |
| LED indicators |
Power, Status |
| Product colour |
Black |
| Data transfer rate |
5000 Mbit/s |
| Housing material |
Steel |
| Electrostatic Discharge (ESD) protection (air) |
15 kV |
| Electrostatic Discharge (ESD) protection (contact) |
8 kV |
| Host interface |
2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Data transmission |
|---|
| Data transfer rate |
5000 Mbit/s |
| Power |
|---|
| Power consumption (max) |
158.4 W |
| Input current |
3.5 A |
| Output voltage |
24 V |
| Output current |
6.6 A |
| Input voltage |
100 - 240 V |
| Technical details |
|---|
| Plug and Play |
Yes |
| Product colour |
Black |
| Sustainability compliance |
Yes |
| Compliance certificates |
Trade Agreements Act (TAA) |
| Weight & dimensions |
|---|
| Weight |
2.43 lbs (1.1 kg) |
| Package width |
10.7" (273 mm) |
| Package depth |
14.5" (368 mm) |
| Package height |
3.86" (98 mm) |
| Package weight |
3.97 lbs (1.8 kg) |
| Packaging data |
|---|
| Package width |
10.7" (273 mm) |
| Package depth |
14.5" (368 mm) |
| Package height |
3.86" (98 mm) |
| Package weight |
3.97 lbs (1.8 kg) |
| Performance |
|---|
| Plug and Play |
Yes |
| Data transfer rate |
5000 Mbit/s |
| Mean time between failures (MTBF) |
122383.8 h |
| Packaging content |
|---|
| Terminal block included |
Yes |
| Cables included |
USB Type-A to USB Type-B |
| AC adapter included |
Yes |
| DIN rail kit included |
Yes |
| Quick start guide |
Yes |
| Design |
|---|
| LED indicators |
Power, Status |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-20 - 75 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Indication |
|---|
| LED indicators |
Power, Status |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
20" (508 mm) |
| Master (outer) case length |
15.9" (403 mm) |
| Master (outer) case height |
12.5" (318 mm) |
| Products per master (outer) case |
5 pc(s) |
| Other features |
|---|
| Rack mounting |
Yes |
| Chipset |
Genesys Logic - GL3523 |
