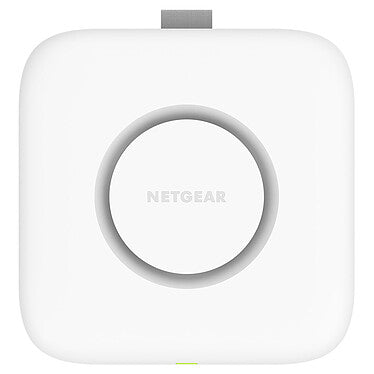

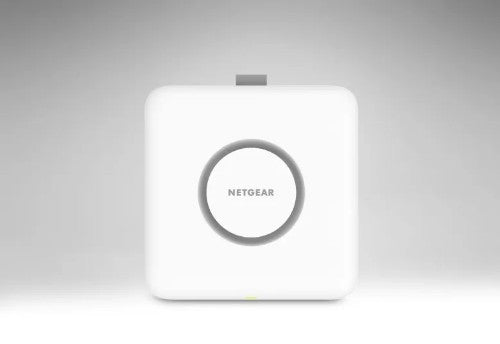

Tri-Band PoE 2.5G Insight Manageable WiFi 7 Access Point
Key Features
- Tri-band access point delivering 9.4Gbps of data throughput
- Multi-gig Ethernet port ensures full bandwidth connection for maximum speed
- Up to 8 separate wireless networks (SSIDs)
- 37 MIMO per group for faster data transmission
- WPA3 encryption for the highest level of WiFi connection security
- Cloud management without the need for a controller
- Small form factor for a more incognito appearance
- Simplified deployment with PoE+ for single cable power & data
- Backwards compatible with older WiFi devices for a futureproof solution
Description
THE FUTURE OF BUSINESS IS HERE
Achieve real-time responsiveness, super low latency, and greater capacity while doubling the data throughput of WiFi 6E.
Experience advanced WiFi for advanced business.
Multi-Link Operation
Blocks interfering frequencies and uses the adjacent frequencies available in that channel, instead of making the entire channel unusable.
Preamble Puncturing
Reduces signal interference, which allows WiFi devices to use parts of different channels to transmit data, greatly reducing network congestion.
Lower Environmental Impact
Built with a mix of partially to fully recycled materials and features that support power saving modes via NETGEAR Insight Remote Management.
Higher Bandwidth
Accommodates ultra-wide 320MHz channels for transmission speeds up to 5Gbps to WiFi 7 end-point devices.
NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 4-year subscription is included.
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates |
2500 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Auto Wireless Distribution System (WDS) |
Yes |
| Web-based management |
Yes |
| VLAN support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
2500 Mbit/s |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Network |
|---|
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Management features |
|---|
| VLAN support |
Yes |
| Web-based management |
Yes |
| Features |
|---|
| 6 GHz |
Yes |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| VLAN support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
2500 Mbit/s |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2882 Mbit/s |
| Throughput data rate |
9400 Mbit/s |
| Maximum data transfer rate (6 GHz) |
5765 Mbit/s |
| Security |
|---|
| Auto Wireless Distribution System (WDS) |
Yes |
| Security algorithms |
802.1x RADIUS, SSL/TLS, WPA, WPA2, WPA3 |
| MAC address filtering |
Yes |
| Access Control List (ACL) |
Yes |
| Service Set Identifier (SSID) features |
SSID broadcast |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Power |
|---|
| Power consumption (max) |
25 W |
| Power over Ethernet (PoE) |
Yes |
| Input current |
2.5 A |
| DC voltage range |
12 V |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| LED indicators |
Yes |
| Antenna |
|---|
| Antenna type |
Internal |
| Indication |
|---|
| LED indicators |
Yes |
| Software |
|---|
| Access Control List (ACL) |
Yes |
| Weight & dimensions |
|---|
| Width |
6.18" (157 mm) |
| Depth |
6.18" (157 mm) |
| Weight |
24.3 oz (690 g) |
| Height |
1.57" (40 mm) |
| Packaging data |
|---|
| Mounting kit |
Yes |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
