Thermaltake View 170 TG ARGB Micro Micro Tower Black

Micro Tower, 3x 120 mm, ARGB, 2.5”/3.5", 4 Expansion Slots, USB, 438 x 212 x 377.5 mm, 6.93 kg, Black

Description

Built for amazing views thanks to the front and side tempered glass side panels the View 170 TG ARGB is sure to impress. Supporting M-ATX builds, mounting points for up to 7 fans, and a ventilated bottom shroud the View 170 TG ARGB brings flexibility in a small package.

View 170 TG ARGB Micro Chassis

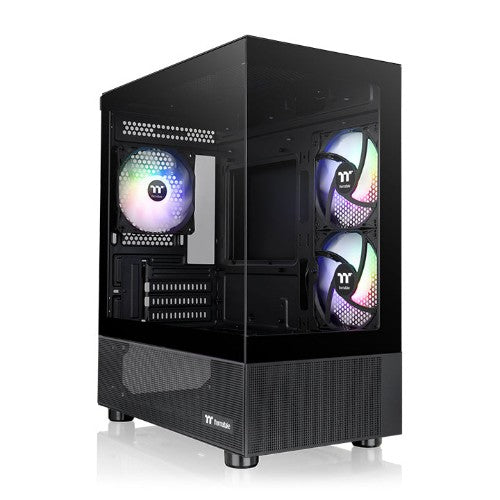

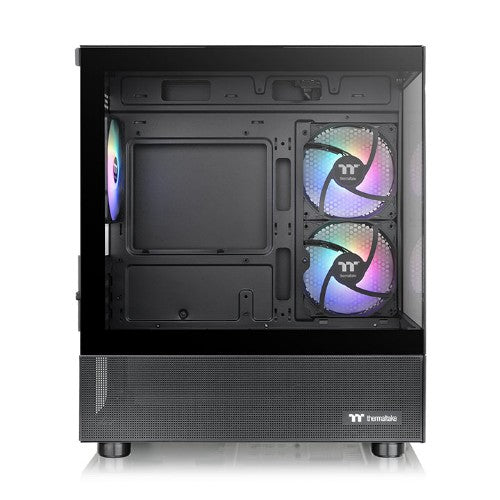

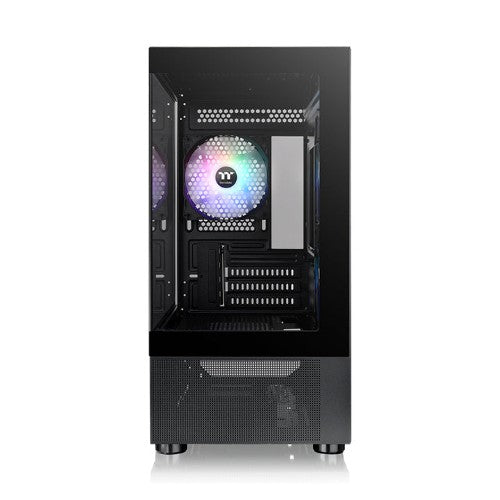

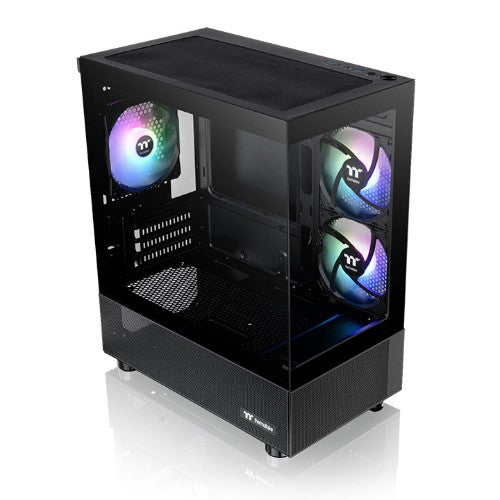

Tempered Glass Front and Side

The View 170 TG ARGB comes equipped with two Tempered Glass panels located on the front and side of the case to provide the best viewing angles for your system inside.

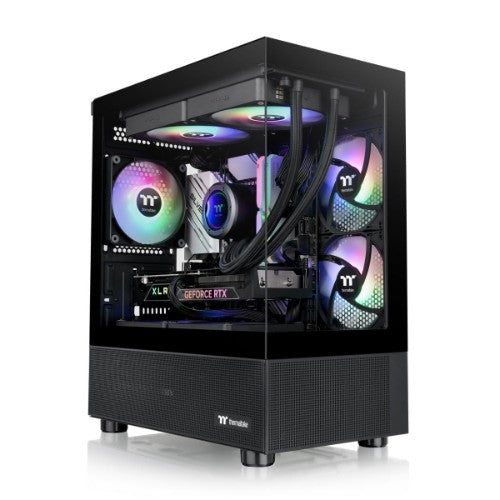

Up to 280mm Radiator Support

Supporting up to 280mm radiators on the top of the chassis, the View 170 TG ARGB can meet the cooling needs for some of the more demanding systems all while maintaining a show appearance to show off your components. Check out the link below for some options from TT.

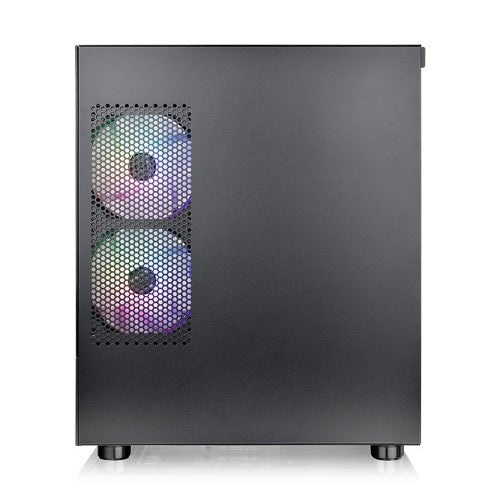

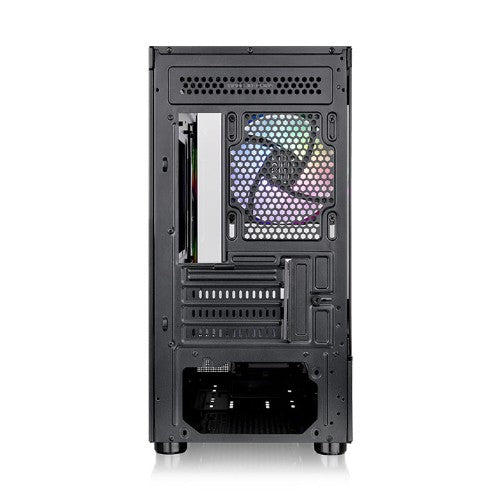

Three 120mm ARGB Lite Fans Pre-Installed

The View 170 TG ARGB comes with three 120mm ARGB Lite Fans pre-installed into the rear and side of the chassis. Lighting can be controlled through any supported ARGB software such as those from Asus, Gigabyte, MSI, and ASRock.

Space for Your Storage

The View 170 can support up to two 2.5” SSDs as well as one 3.5” HDD in total.

Handy I/O Ports

Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	1
Number of 2.5" bays	2
Number of internal 3.5" bays	1
Supported motherboard form factors	micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Reset button	Yes
Product colour	Black
Number of expansion slots	4
Maximum CPU cooler height	6.3" (16 cm)
Maximum graphics card length	13.4" (34 cm)
Maximum PSU length	7.09" (18 cm)
Type	PC
Form factor	Micro Tower
Material
Material	SPCC, Tempered glass
Indication
LED indicators	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Ergonomics
Reset button	Yes
LED indicators	Yes
On/off button	Yes
Design
Material	SPCC, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	1
Number of 2.5" bays	2
Number of internal 3.5" bays	1
Supported motherboard form factors	micro ATX, Mini-ITX
Suitable for	Gaming
Side window	Yes
Reset button	Yes
LED indicators	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Product colour	Black
Number of expansion slots	4
Maximum CPU cooler height	6.3" (16 cm)
Maximum graphics card length	13.4" (34 cm)
Maximum PSU length	7.09" (18 cm)
Type	PC
Form factor	Micro Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	PS2
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	0
Cooling
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,140,240,280 mm
Side fans installed	2x 120 mm
Number of side fans supported (max)	2
Side fans diameters supported	120 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	2
Bottom fans diameters supported	120 mm
Liquid cooling capability	Yes
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	8.35" (212 mm)
Depth	14.9" (377.5 mm)
Height	17.2" (438 mm)
Weight	14 lbs (6.35 kg)
