Zyxel SFP-SX-D network transceiver module Fiber optic 1000 Mbit/s 850 nm

GbE Fiber Transceiver, LC, 850 nm, 0.55 km/ 601 yd

Description

Reliable Transceiver Modules for Different Connectivity Demands

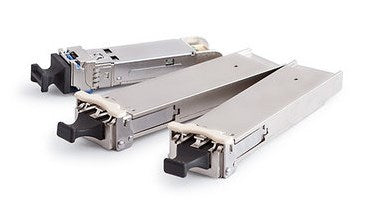

The ZyXEL Transceiver Series is a complete range of industry standard, hot-pluggable transceiver modules consists of Fast, Gigabit and 10 Gigabit variations.

Standard-based design assures compatibility
The ZyXEL transceiver family follows industry standards to assure compatibility with switches from other manufacturers without barrier set by proprietary technologies.

Comprehensive portfolio for different connectivity demands
With ZyXEL’s comprehensive Fast, Gigabit and 10 Gigabit transceiver product range, also Direct Attached Cable 1M /3M, users can just plug the proper model onto the network to extend the physical coverage.

Hot-swappable design facilitates network maintenance
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.

Bi-directional transceivers maximizes usage of existing fiber plant
Traditional fiber optic networking requires two strands of fiber to accomplish communications, in which one strand is reserved for sending signals, while the other is for receiving. On the other hand, bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber by using two separate optical wavelengths: one receives and the other transmits signals. Transmission capacity can be expanded immediately without additional cost laying new fiber.

Supporting Digital Diagnostics Monitoring Interface (DDMI) SFP enhances management capability
The enhanced digital interface enables a real time link to be established between the switch and the SFP transceiver. This enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals.
In addition, the DDMI functionality enables the capability to implement digital alarms and warnings.
This feature ensures that the business can be proactive in preventative maintenance of the network and ensure business continuity.

DDMI Monitors:

- Temperature
- Supply voltage
- Transmitted bias current
- Transmitted power
- Received power

All features listed above include alarm and warning thresholds.

Specifications

Performance
SFP transceiver type	Fiber optic
Interface type	SFP
Maximum data transfer rate	1000 Mbit/s
Fiber optic connector	LC
Maximum transfer distance	21653.5" (550 m)
Wavelength	850 nm
Fiber ports quantity	1
Cabling technology	1000BASE-SX
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SX
Power
Maximum current	0.25 A
Input voltage	3.5 V
Certificates
Certification	Class 1 Laser 21 CFR 1040.10 and 1040.11 compliant CSA (10 Gigabit XFP, Gigabit SFP and Fast Ethernet SFP Series) TUV CE (10 Gigabit SFP+ Series, DAC10G Series) FDA (10 Gigabit SFP+ Series)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	32 - 158 °F
Network
SFP transceiver type	Fiber optic
Interface type	SFP
Maximum data transfer rate	1000 Mbit/s
Fiber optic connector	LC
Fiber ports quantity	1
Cabling technology	1000BASE-SX
Weight & dimensions
Width	0.528" (13.4 mm)
Depth	2.2" (56 mm)
Height	0.488" (12.4 mm)
Weight	0.847 oz (24 g)
Features
Certification	Class 1 Laser 21 CFR 1040.10 and 1040.11 compliant CSA (10 Gigabit XFP, Gigabit SFP and Fast Ethernet SFP Series) TUV CE (10 Gigabit SFP+ Series, DAC10G Series) FDA (10 Gigabit SFP+ Series)
