8-Port, 2.5 G, 9.24 W, 158 x 101 x 27 mm, 430 g
Description
NETGEAR 8-Port 2.5G Multi-Gigabit Ethernet Unmanaged Switch

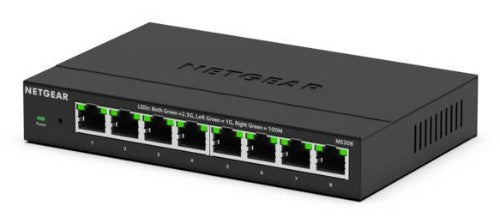

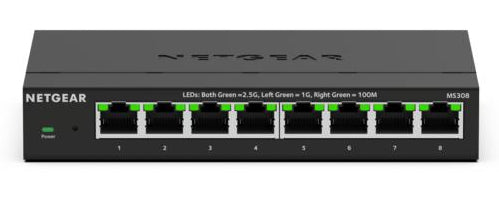

The NETGEAR 8-port 2.5G Multi-Gigabit Unmanaged Switch, MS308, offers businesses an affordable solution to upgrade their networks to multi-gig speeds. Featuring eight (8) 2.5G ports encased in durable metal, the MS308 Multi-Gigabit Ethernet Switch is designed for versatility—it can be placed on a desk, mounted on a wall, or under a table using the included kit.
RELIABLE PERFORMANCESuperior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise
ENERGY EFFICIENTEnergy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAYNo software to install. No configuration needed. Zero maintenance required
SILENT OPERATIONThe fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONSInstall your switch on your desktop, or mount it to your wall with the hardware provided in the box.
Specifications
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Network |
|---|
| Cable length detection |
Yes |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Half duplex |
Yes |
| Data transmission |
|---|
| Jumbo frames |
12288 |
| Latency (1 Gbps) |
4.9 µs |
| Packet buffer memory |
1 MB |
| MAC address table |
16000 entries |
| Switching capacity |
40 Gbit/s |
| Jumbo frames support |
Yes |
| Forwarding rate |
3.72 Mpps |
| Design |
|---|
| Wall mountable |
Yes |
| Product colour |
Black |
| Stackable |
No |
| LED indicators |
Yes |
| Housing material |
Metal |
| Rack mounting |
No |
| Number of fans |
0 fan(s) |
| Performance |
|---|
| Noise level |
0 dB |
| Mean time between failures (MTBF) |
3309911 h |
| Fanless |
Yes |
| Packet buffer memory |
1 MB |
| Stackable |
No |
| Power |
|---|
| Power consumption (max) |
7.98 W |
| Power supply included |
Yes |
| Input voltage |
12 V |
| Input current |
1 A |
| DC input voltage |
12 V |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Other features |
|---|
| Warranty period |
3 year(s) |
| Input voltage |
12 V |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions |
|---|
| Width |
6.22" (158 mm) |
| Depth |
3.98" (101 mm) |
| Height |
1.06" (27 mm) |
| Weight |
15.2 oz (430 g) |
| Technical details |
|---|
| Product colour |
Black |
| Stackable |
No |
| Noise level |
0 dB |
| Mean time between failures (MTBF) |
3309911 h |
| Housing material |
Metal |
| Rack mounting |
No |
| Warranty period |
3 year(s) |
| Compliance certificates |
CCC, Low Voltage Directive (LVD) |
| Memory |
|---|
| Packet buffer memory |
1 MB |
| Certificates |
|---|
| Compliance certificates |
CCC, Low Voltage Directive (LVD) |
| Indication |
|---|
| LED indicators |
Yes |
