2× 48MP, DFOV 120°, 4k 60fps, 2x 10W, 650 x 62 x 80 mm
Key Features
- 2x 48MP built-in dual-eye camera system, 120° FoV
- AI-powered video features: IntelliFocus, Video Fence, Virtual Background
- Built-in 8-MEMS beamforming microphones, full-duplex audio
- AI-enhanced noise cancellation and reverberation suppression
- 2x stereo speakers
Description

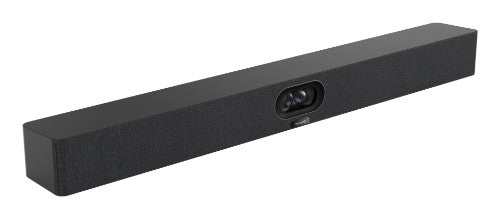

Yealink SmartVision 40 is a USB video bar for small to medium meeting rooms. The dual-eye camera system delivers an ultra-wide view even at long distances. The IntelliFocus feature shows the last active speakers, helping to focus on the ongoing conversation. With the AI-powered audio system, MVC S40 delivers voice clearly and eliminate noise, creating a face-to-face meeting experience for hybrid meetings.
Specifications
| Performance |
|---|
| Product type | Group video conferencing system |
| Product colour | Black |
| Auto framing | Yes |
| Technical details |
|---|
| Product type | Group video conferencing system |
| Product colour | Black |
| Video |
|---|
| HD type | 4K Ultra HD |
| Megapixel (approx.) | 48 MP |
| Digital zoom | 6x |
| Supported video modes | 2160p |
| Supported graphics resolutions | 3840 x 2160 |
| Maximum frame rate | 60 fps |
| Picture-in-Picture | Yes |
| Total megapixels | 48 MP |
| Maximum video resolution | 3840 x 2160 pixels |
| Audio |
|---|
| Microphone pick-up range | 236.2" (6 m) |
| Frequency range | 100 - 20000 Hz |
| Speaker power | 10 W |
| Echo cancellation | Yes |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Audio system full duplex | Yes |

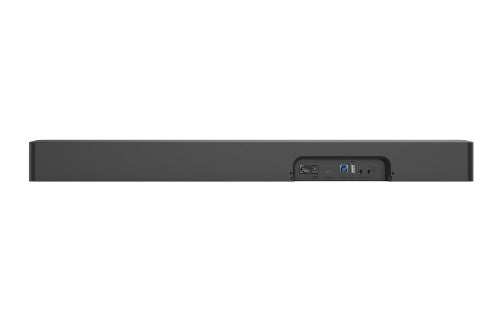

| Ports & interfaces |
|---|
| DC-in jack | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| HDMI output ports quantity | 1 |
| Reset slot | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Network |
|---|
| Wi-Fi | Yes |
| Camera |
|---|
| Megapixel (approx.) | 48 MP |
| Digital zoom | 6x |
| Number of camera presets | 9 |
| Diagonal field of view | 120° |
| Camera type | Dual camera |
| Second camera resolution | 48 MP |
| Zoom capability | Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions |
|---|
| Camera dimensions (WxDxH) | 25.6 x 2.44 x 3.15" (650 x 62 x 80 mm) |
| Package weight | 13.4 lbs (6.07 kg) |
| Camera weight | 12.2 lbs (5.54 kg) |
