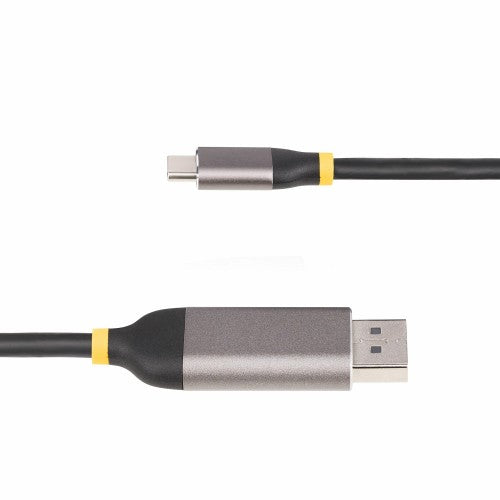

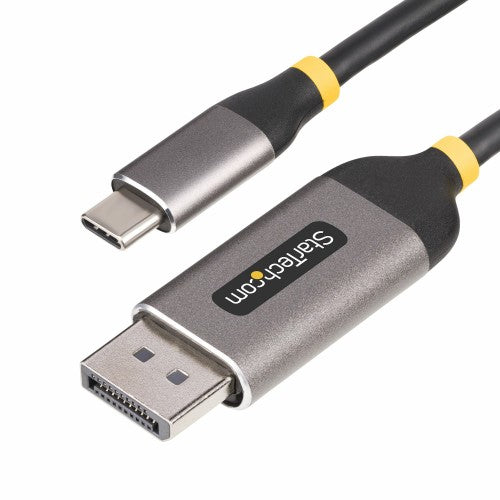

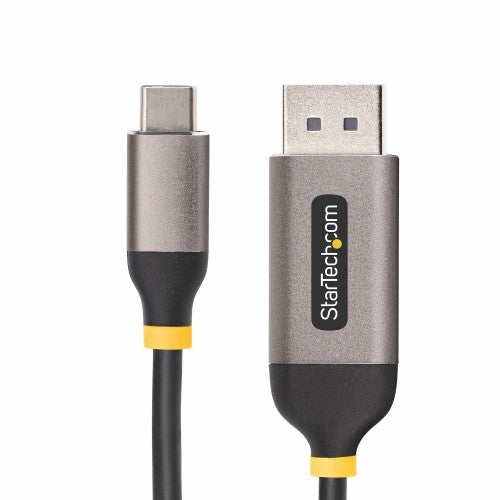

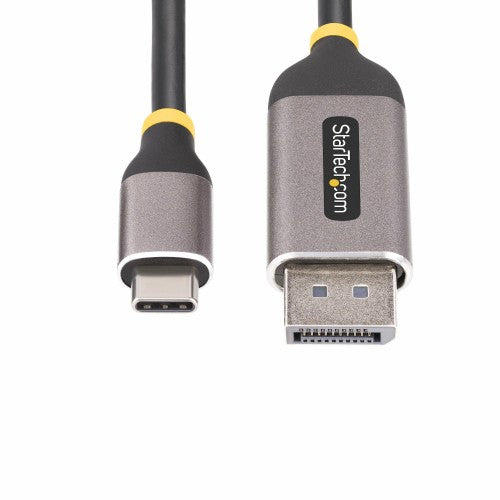

StarTech.com 10ft (3m) USB-C to DisplayPort Adapter Cable, 8K 60Hz, 4K 144Hz, HDR10, USB Type-C to DP 1.4 Converter
Key Features
- HIGH PERFORMANCE: 9.8ft (3m) USB-C to DisplayPort Adapter Cable connects a USB-C DP Alt-mode source to an 8K 60Hz/4K 144Hz DisplayPort monitor; Connect a primary or secondary display in extended or mirrored mode
- NO DRIVERS OR SOFTWARE: Universal Adapter Cable is compatible with all hardware platforms and any operating system; USB Type-C to DisplayPort Cable works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices
- HOST COMPATIBILITY: Active DP Converter Cable works with laptops and devices from Dell, HP, Lenovo, Microsoft, and more; Apple M1/M2/M3 devices (e.g. MacBook Pro) only support up to 4K 60Hz over USB-C DP Alt Mode and will not be able to achieve 8K 60Hz
- BUILD QUALITY & DESIGN: Integrated video adapter and cable minimizes failure points and signal loss; Latching DisplayPort connector ensures a secure connection, minimizing the risk of accidental disconnection; Aluminum shell provides EMI shielding
- TECH SPECS: 9.8ft USBC to DP Cable is DisplayPort 1.4/1.2 compliant, supporting HDR10, HBR3, and DSC; HDCP 1.4/2.3; 32.4Gbps Bandwidth; Supports 2ch DP audio; Works at lower resolutions (i.e., 4K and 1080p); TPE Jacket; Outside Cable Diameter: 4.3mm
Description
Connect a DisplayPort Alt Mode-enabled USB-C source to a DisplayPort monitor with support for resolutions up to 8K at 60Hz
Connect an 8K 60Hz or 4K 144Hz DisplayPort monitor to a DP Alt Mode-enabled USB Type-C source up to 9.8ft (3m) away with this USB-C to DisplayPort adapter cable.
High-Resolution HDR Video
This USB-C to DisplayPort Cable enables resolutions of up to 8K 60Hz and is DisplayPort 1.4 compliant. It supports HDR10, DSC, and 2 channel audio.
Hardware Platform
Single Monitor
DisplayPort Alt Mode
Intel 11th Gen & Later Processors
8K 60Hz or 4K 144Hz*
DisplayPort 1.4
Nvidia RTX3000 and AMD RX6000 or later
8K 60Hz or 4K 144Hz
DisplayPort 1.4
Intel 10th Gen & Earlier
4K 60Hz
DisplayPort 1.4
Apple M1/M2/M3 + Pro & Max
4K 60Hz**
DisplayPort 1.4
*DSC support required to reach maximum resolution capabilities on Intel 11th Gen or later
**Apple MacBook's with M1/M2/M3 Pro/Max silicon do not support 8K 60Hz over USB-C DP Alt Mode
Universal Compatibility
The USB-C to DisplayPort Converter Cable is compatible with laptops and devices from various brands such as Dell, HP, Lenovo, Microsoft, and more. It works with all hardware platforms and any operating system. The USB Type-C to DisplayPort Cable requires no drivers or software and works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.
Thoughtfully Designed
Combining a video adapter and cable minimizes potential points of failure and signal loss. A latching DisplayPort connector reduces the risk of accidental disconnections. The cable is equipped with aluminum connector shells, providing enhanced durability, and shielding from Electromagnetic Interference (EMI).
The StarTech.com Advantage
Specifications
| Features |
|---|
| Chipset |
VL103 |
| DisplayPort version |
1.4 |
| Product colour |
Black, Gray |
| Cable length |
118.1" (3 m) |
| Connector 1 |
USB Type-C |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Jacket material |
Thermoplastic elastomer (TPE) |
| Bandwidth |
32400 MB/s |
| Supported graphics resolutions |
800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 768 (WXGA), 1280 x 800, 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2560 x 1080, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 5120 x 2880, 7680 x 4320 |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
144 Hz |
| HDCP version |
1.4/2.2/2.3 |
| High Dynamic Range (HDR) supported |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Latching connectors |
Yes |
| Cable type |
Round cable |
| Refresh rate at maximum resolution |
60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 70 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
0.169" (4.3 mm) |
| Weight |
3.92 oz (111 g) |
| Package width |
5.91" (150 mm) |
| Package depth |
3.94" (100 mm) |
| Package height |
3.94" (100 mm) |
| Package weight |
2.82 oz (80 g) |
| Packaging data |
|---|
| Package width |
5.91" (150 mm) |
| Package depth |
3.94" (100 mm) |
| Package height |
3.94" (100 mm) |
| Package weight |
2.82 oz (80 g) |
| Logistics data |
|---|
| Master (outer) case width |
11.8" (300 mm) |
| Master (outer) case length |
11.8" (300 mm) |
| Master (outer) case height |
13.8" (350 mm) |
| Products per master (outer) case |
100 pc(s) |
