StarTech.com Wireless HDMI Extender, 4K 60Hz, Transmitter and Receiver Kit, Up to 165ft (50m), No Line-Of-Sight Required
Key Features
- HDMI OVER WIRELESS: Transmit 4K 60Hz HDMI signals wirelessly up to 165 feet (50 meters) in a point-to-point signal; No line-of-sight required for operation making it ideal for media closets/cabinets; No cable run ensures a clutter-free, rapid setup
- LOCAL HDMI PASS-THROUGH: Transmitter features an HDMI output (loop-out) to connect a local display; Ideal for presentation centers, boardrooms/meeting rooms, classrooms, trade shows, and conference centers
- NO DRIVERS OR SOFTWARE: No IP configuration, software, or drivers are required, ensuring a streamlined cable-free extension; 5GHz point-to-point connection from transmitter to receiver supports channel switching to avoid interference in busy environments
- INSTALLATION OPTIONS: Included mounting kit for transmitter/receiver provides versatile installation options; Up to 4 paired extender kits in one local area; IR Blaster/Receiver for IR extension; Rubber feet included for stability/surface protection
- TECHNICAL SPECIFICATIONS: HDMI 2.1 TMDS supporting 18Gbps bandwidth, HDCP 1.4/2.2, 2.1ch audio, and Audio Return Channel (ARC); 5GHz wireless dual-antenna design; 8kV air and 6kV contact level-3 ESD protection
Description
Wirelessly extend an HDMI signal to a remote display up to 50m (165ft) away, supporting resolutions up to 4K 60Hz
Connect the Transmitter Unit to an HDMI source and the Receiver Unit to an HDMI display to wirelessly transmit 4K 60Hz HDMI at distance of up to 165 feet (50 meters), using this Wireless HDMI Extender Kit.
No Line-Of-Sight Required
This wireless HDMI extender eliminates the need for a separate ethernet cable between the transmitter and receiver, providing a clean and flexible setup. Operates with or without line of sight (LOS/NLOS), making it ideal for media closets and cabinets. Also, the transmitter features an HDMI output for connecting a local display, making it ideal for presentations and conferences. A 5GHz point-to-point connection between the transmitter and receiver avoids the more congested 2.4GHz wireless frequencies. Up to four paired extender kits can be used in the same area.
No Drivers or Software
This wireless HDMI extender offers a straightforward, plug-and-play experience, eliminating the need for IP configurations, software installations, or driver setups, making it an accessible solution for various applications.
Versatile Installation Options

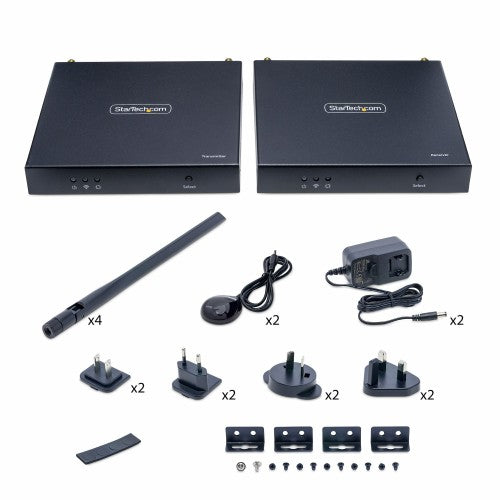

The included mounting kits enable versatile installation options for both the transmitter and receiver. An IR blaster and receiver are also included to extend infrared signals. Optional rubber feet are included for added stability and surface protection.
High-Performance Wireless Extender
This extender supports HDMI 2.1 TMDS with 18Gbps bandwidth, HDCP 1.4/2.2, 2.1 channel audio, and Audio Return Channel (ARC). It uses a dual-antenna design for improved wireless performance. This wireless HDMI extender features 8kV air and 6kV contact electrostatic discharge (ESD) protection.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Material |
Metal |
| HDCP |
Yes |
| Rack mounting |
No |
| Maximum refresh rate |
60 Hz |
| Type |
AV transmitter & transceiver |
| Maximum resolution |
4096 x 2160 pixels |
| Maximum transfer distance |
1968.5" (50 m) |
| Supported graphics resolutions |
800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 768 (WXGA), 1280 x 800, 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1600 x 1200, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 1440, 2048 x 1536 (QXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| LED indicators |
Yes |
| Bandwidth |
18 Gbit/s |
| Product colour |
Black |
| Integrated antenna |
No |
| Antennas quantity |
4 |
| Frequency range |
5.1 - 5.2 GHz |
| Rubber feet |
Yes |
| HDCP version |
2.2 |
| Ports & interfaces |
|---|
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| USB ports quantity |
2 |
| USB connector type |
Micro-USB B |
| HDMI in |
1 |
| Number of HDMI outputs |
2 |
| HDMI version |
2.1 |
| DC-in jack |
Yes |
| Connectivity technology |
Wireless |
| Power |
|---|
| External power adapter |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
|---|
| Width |
4.53" (115 mm) |
| Height |
0.827" (21 mm) |
| Depth |
4.92" (125 mm) |
| Weight |
12.2 oz (346 g) |
| Packaging data |
|---|
| Package depth |
6.02" (153 mm) |
| Package width |
14.1" (357 mm) |
| Package height |
3.35" (85 mm) |
| Package weight |
2.43 lbs (1.1 kg) |
| Packaging content |
|---|
| IR receiver included |
Yes |
| IR blaster included |
Yes |
| Mounting kit |
Yes |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Included power plug types |
EU, UK, US |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
18.7" (475 mm) |
| Master (outer) case length |
14.6" (370 mm) |
| Master (outer) case height |
12.6" (320 mm) |
| Products per master (outer) case |
10 pc(s) |
