13.3'', 16:9, 1920 x 1080, 60 Hz, 311.52 x 191.86 x 14.88 mm
Description
Razor thin design.
Brilliant touchscreen.Built to be one of the thinnest commercial-grade 13-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the- art optical bonding - all with brilliant display clarity.
Secure your cables into place.With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.

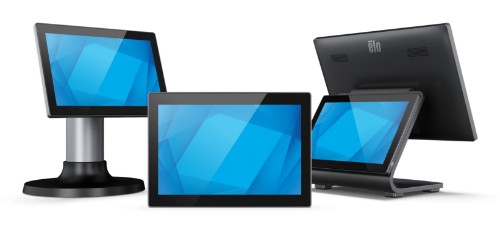

A clean slate for touch experiences.The perfect pairing for your POS terminal.Whether you want to pair the 1304LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.
Get peace of mind with EloCare.SMFrom advance unit replacement to extended warranties, EloCare delivers service and support from the people
who know your Elo products best.
Specifications
| Display |
|---|
| Display number of colours |
16.7 million colors |
| Panel type |
TFT-LCD |
| Number of simultaneous touchpoints |
10 |
| Touchscreen |
Yes |
| Active display area (W x H) |
11.6 x 6.51" (293.8 x 165.2 mm) |
| Display technology |
LED |
| Display diagonal |
13.3" |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
300 cd/m² |
| Response time |
27 ms |
| Contrast ratio (typical) |
600:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display diagonal (metric) |
133" (337.8 cm) |
| Horizontal scan range |
30 - 82 kHz |
| Anti-glare screen |
Yes |
| Number of displays |
1 |
| Touchscreen technology |
Projected capacitive system |
| Native refresh rate |
60 Hz |
| Multi-touch |
Yes |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-C |
| USB port |
Yes |
| Ethernet LAN |
No |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
4 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Orientation |
Horizontal/Vertical |
| Product colour |
Gray |

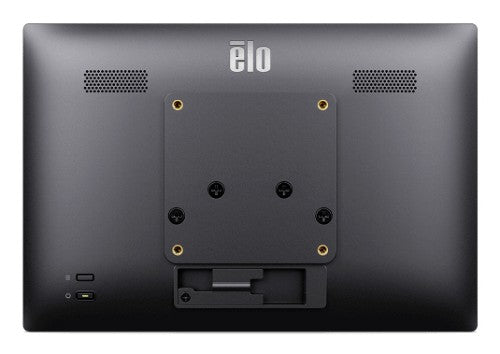

| VESA mounting |
Yes |
| Anti-glare screen |
Yes |
| Screen shape |
Flat |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
8 |
| Power |
|---|
| Power consumption (sleep) |
0.8 W |
| Power consumption (off) |
0.15 W |
| Power consumption (typical) |
6.6 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
D |
| Weight & dimensions |
|---|
| Display width |
12.3" (311.5 mm) |
| Display depth |
0.586" (14.9 mm) |
| Display height |
7.55" (191.9 mm) |
| Display weight |
30.7 oz (870 g) |
| Packaging data |
|---|
| Package width |
14.9" (378 mm) |
| Package depth |
3.62" (92 mm) |
| Package height |
9.92" (252 mm) |
| Package weight |
3.42 lbs (1.55 kg) |
| Cables included |
USB Type-C |
| Packaging content |
|---|
| Cables included |
USB Type-C |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 95% |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-C |
| Panel type |
TFT-LCD |
| Number of simultaneous touchpoints |
10 |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| USB connector type |
USB Type-C |
| Panel type |
TFT-LCD |
| Number of simultaneous touchpoints |
10 |
| Mean time between failures (MTBF) |
50000 h |
| Display technology |
LED |
| Aspect ratio |
16:9 |
| Energy efficiency scale |
A to G |
