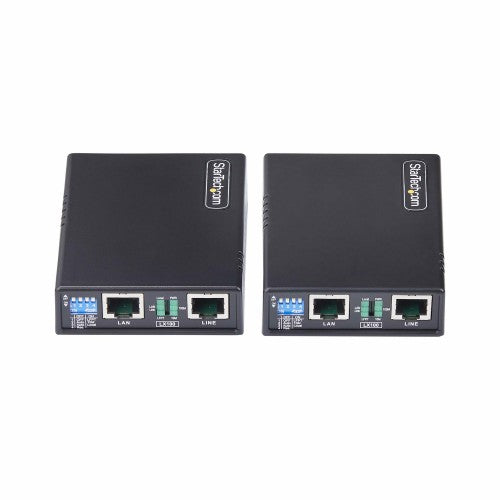

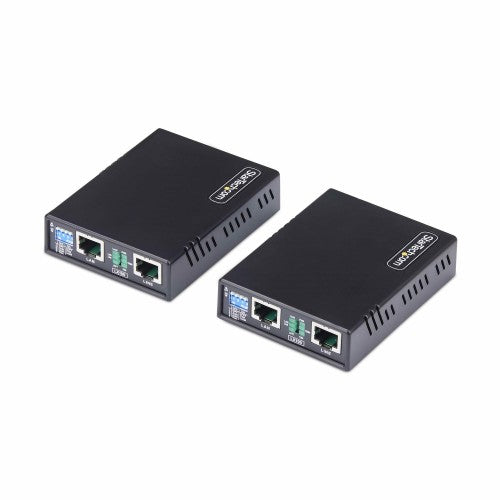

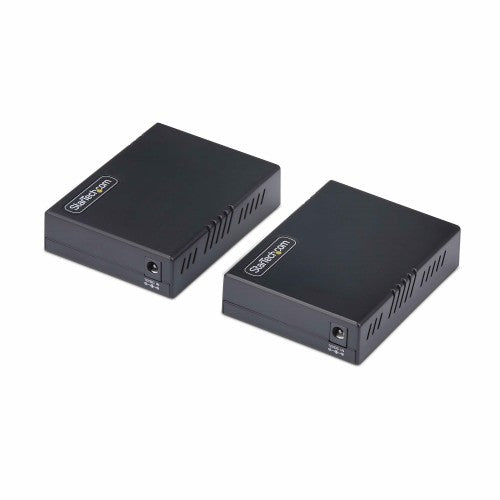

StarTech.com C2-ETHERNET-EXTENDER network extender Network transmitter & receiver Black 10, 100 Mbit/s

StarTech.com 10/100 Ethernet Extender Kit Up to 0.5mi (800m), Long-Range LAN Over Single Pair Wire/RJ45 UTP, Ethernet Booster

Key Features

• ETHERNET LAN EXTENDER: Unmanaged single-port dual-speed (10/100Mbps) RJ45 network extender kit; Reach distances of up to 0.5mi (800m) to overcome the typical limit of 328ft (100m) for Cat5/Cat5e/Cat6 copper Unshielded Twisted Pair (UTP) Ethernet cable
• EXTENDED RANGE: Use one or two pairs of cable for variable bandwidth and distance; Reach up to 984ft (300m) at 100Mbps using a single-pair Ethernet cabling & up to 2,624ft (800m) at 10Mbps using two-pair ethernet cabling
• FEATURES: Network extension kit acts as a transparent network device seamlessly passing Ethernet protocols; IEEE 802.1q VLAN tag pass-through, WoL, 16K jumbo, PXE, and more; Supports RJ11/phone line cabling; Includes power adapters for remote/local units

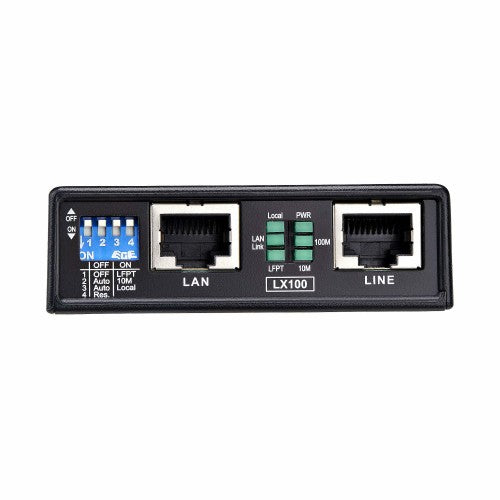

• READY TO USE: Long-range Ethernet booster ships ready for deployment; DIP switches for configuration; LED indicators for power, remote/master mode, network status, LAN speed, and LFPT, allowing IT administrators to monitor and assess network connectivity
• APPLICATIONS: Use the Ethernet range extender for remote Internet or network access, IP video surveillance, remote equipment diagnosis, management and control, WiFi APs, automation, VoIP, remote sensors, and more

Description

Extend a 10/100Mbps network up to 0.5mi (800m) using RJ45 or RJ11 cabling

Extend a network or control remote equipment using this Ethernet Extender. Use UTP, Cat5, Cat5e, or Cat6 RJ45 terminated cable for distances of up to 0.5mi (800m). Dual-speed (10/100Mbps) Ethernet signal booster enables efficient and reliable network connectivity.

Extend Network Connectivity

The unmanaged LAN extender utilizes the pairs of wires within a UTP cable to function as a bridge, extending a local network beyond the standard 328ft (100m) limit of a UTP cable. Use one or two pairs of twisted wire to achieve different speeds and distances to better suit the setup. Achieve up to 984ft (300m) at 100Mbps with a single pair of wires and up to 0.5mi (800m) at 10Mbps with two pairs of wires.

Thoughtful Design

The booster kit ships ready to use in a standard setup (remote and local units). DIP switches allow to change the settings and behavior of the units for a custom deployment. Status LEDs provide a visual indication of the network and various settings that allow quick assessment of the setup.

Versatile

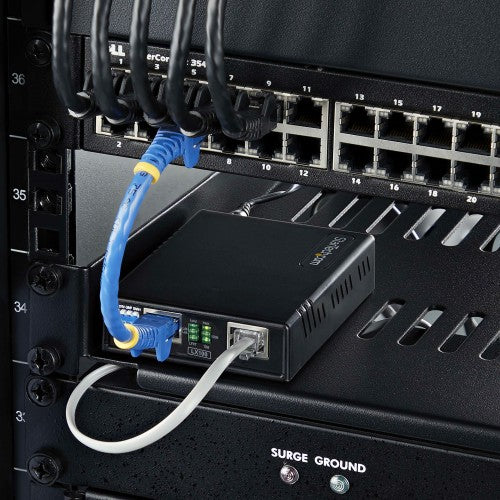

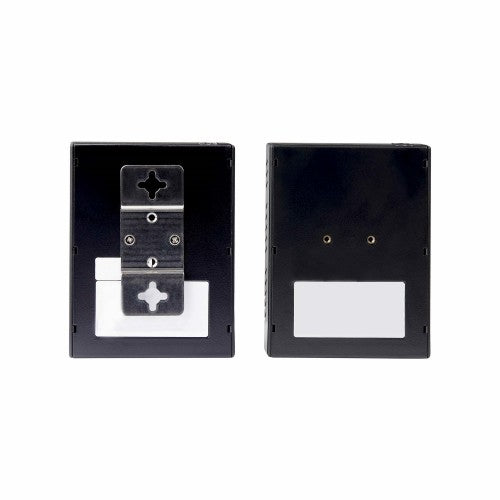

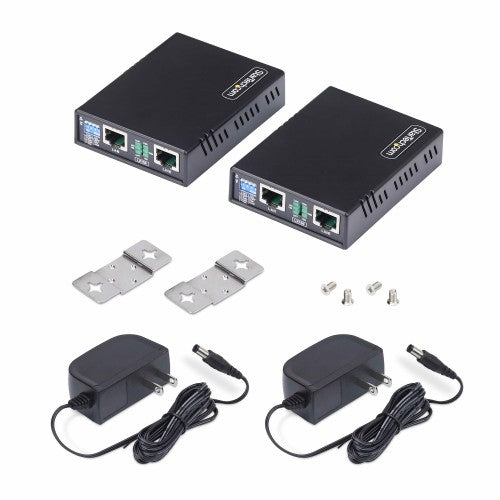

The Long-Range LAN Extender can be wall-mounted, using the included hardware. The kit includes power adapters for each unit. Use the LAN extender adapter for Internet or network access to remote office or branch locations, create remote WiFi APs (Access Points), remote IP-based video surveillance, equipment management and control, VoIP, automation, and more. For maximum compatibility, RJ11 copper cable is supported to connect the remote and local units.

Being a transparent network device allows the network extender to support the following Ethernet protocols, such as WoL (Wake-on-LAN), 16K Jumbo frames, 802.1Q VLAN tagging, and PXE boot.

The StarTech.com Advantage

Specifications

Performance
Jumbo frames support	Yes
Plug and Play	Yes
Ethernet LAN data rates	10,100 Mbit/s
Type	Network transmitter & receiver
Maximum transfer distance	31496.1" (800 m)
Data transfer rate	100 Mbit/s
Cable types supported	Cat5, Cat5e, Cat6, Cat6a
Auto MDIX IEEE	No
Technical details
Jumbo frames support	Yes
Plug and Play	Yes
Ethernet LAN data rates	10,100 Mbit/s
LED indicators	Yes
Type	Network transmitter & receiver
Maximum transfer distance	31496.1" (800 m)
Data transfer rate	100 Mbit/s
Cable types supported	Cat5, Cat5e, Cat6, Cat6a
Auto MDIX IEEE	No
Sustainability compliance	Yes
Compliance certificates	RoHS
Network
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.1x, IEEE 802.3i, IEEE 802.3u
Ports & interfaces
RJ-45 ports quantity (transmitter)	2
RJ-45 ports quantity (receiver)	2

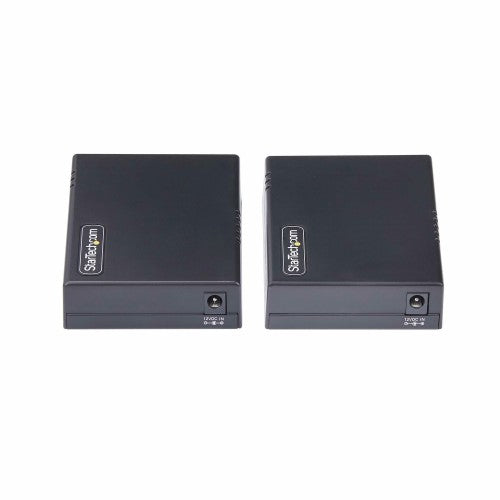

DC-in jack	Yes
Design
Housing material	Plastic, Steel
LED indicators	Yes
Product colour	Black
Power
Power plug type	Type M
AC input voltage	100 - 240 V
Input current	0.5 A
Power consumption (typical)	3.8 W
Output voltage	12 V
Output current	1 A
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	3.78" (96 mm)
Depth	0.906" (23 mm)
Height	2.87" (73 mm)
Weight	2.59 oz (73.5 g)
Colour
Product colour	Black
Packaging content
AC adapter included	Yes
Quick start guide	Yes
Packaging data
Package width	5.12" (130 mm)
Package depth	5.91" (150 mm)
Package height	7.09" (180 mm)
Package weight	31.7 oz (900 g)
Logistics data
Master (outer) case width	20.3" (515 mm)
Master (outer) case length	12" (305 mm)
Master (outer) case height	16.7" (425 mm)
Products per master (outer) case	15 pc(s)
