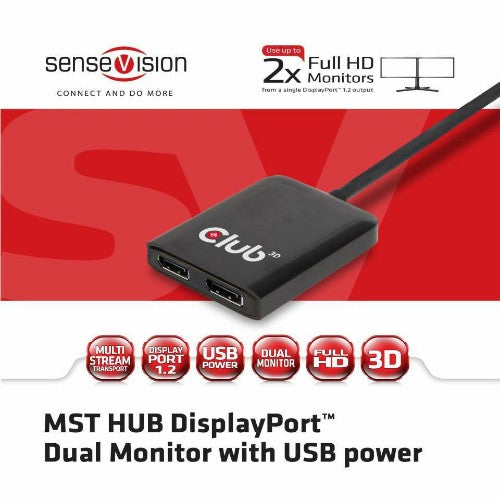

Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor
Key Features
- Connect 2 Screens to a single DisplayPor™ t 1.2 output
- Supports resolutions up to 2 x 3840x2160 30Hz or 250x1600 60 Hz
- Powered by USB
Description
CSV-6200 - The Club3D SenseVision MST Hubs utilise Multi Stream Transport, a unique DisplayPort™ 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming.
This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected screens. The CSV-6200 is Plug & Play and does not require any driver installation.
The Club3D MST Hubs do not increase the bandwidth of the DisplayPort™ 1.2 output of the source system, but it enables the optimal use of it.
Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.
Specifications
| Ports & interfaces |
|---|
| Video ports quantity |
2 |
| Video port type |
DisplayPort |
| Video out |
2x Displayport |
| Video in |
Displayport 1.2 |
| DC-in jack |
Yes |
| Cable length |
7.87" (0.2 m) |
| Features |
|---|
| Maximum refresh rate |
60 Hz |
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Maximum resolution |
3840 x 2160 pixels |
| Full HD |
Yes |
| HD-Ready |
Yes |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Easy to install |
Yes |
| Product colour |
Black |
| Certification |
EMI CE, FCC, ROHs, WEEE |
| 3D |
Yes |
| Cable length |
7.87" (0.2 m) |
| Power |
|---|
| Input current |
2 A |
| USB powered |
Yes |
| AC input voltage |
5 V |
| Weight & dimensions |
|---|
| Weight |
1.9 oz (54 g) |
| Dimensions (WxDxH) |
9.61 x 1.93 x 0.433" (244 x 49 x 11 mm) |
| Package weight |
0.317 oz (9 g) |
| Package type |
Polybag |
| Package depth |
0.709" (18 mm) |
| Package width |
9.45" (240 mm) |
| Package length |
6.3" (16 cm) |
| Packaging data |
|---|
| Package weight |
0.317 oz (9 g) |
| Package type |
Polybag |
| Package depth |
0.709" (18 mm) |
| Package width |
9.45" (240 mm) |
| Package length |
6.3" (16 cm) |
| Quantity per pack |
1 pc(s) |

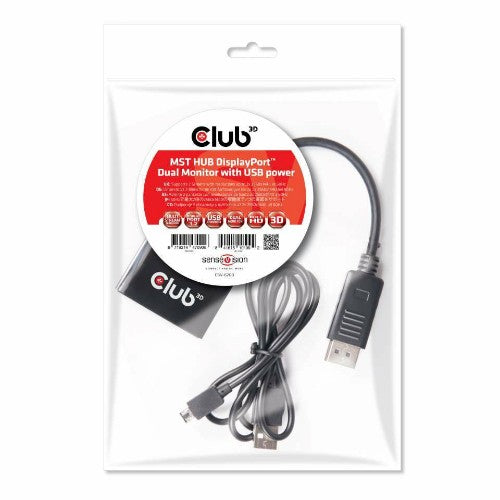

| Packaging content |
|---|
| Packaging content |

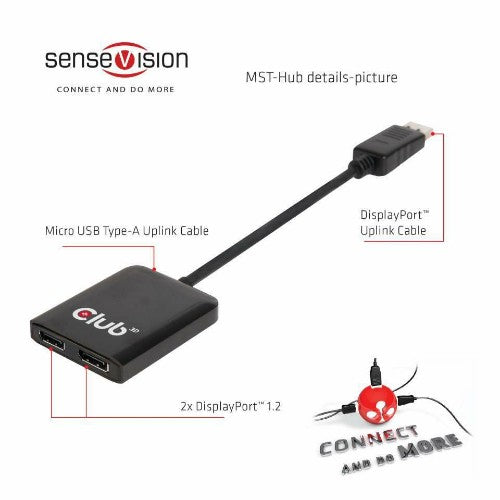

-Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Dual Monitor USB Powered
-USB to Micro USB Cable for power
-Quick install guide |
| Manual |
Yes |
| Cables included |
Micro-USB |
| Package type |
Polybag |
| Video |
|---|
| Maximum refresh rate |
60 Hz |
| Maximum resolution |
3840 x 2160 pixels |
| Full HD |
Yes |
| HD-Ready |
Yes |
| HDCP |
Yes |
| 3D |
Yes |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
EMI CE, FCC, ROHs, WEEE |
| Technical details |
|---|
| Connection to PC |
Yes |
| Package width |
9.45" (240 mm) |
| Package length |
6.3" (16 cm) |
| Video out |
2x Displayport |
| Video in |
Displayport 1.2 |
| Plug and Play |
Yes |
| Easy to install |
Yes |
| Technical features |

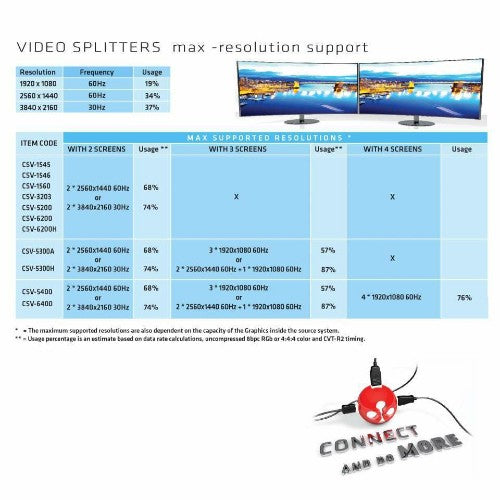

Resolutions up to:
2 x 3840 x 2160 at 30Hz or
2 x 2560 x 1440 at 60Hz |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Products per master (outer) case |
5 pc(s) |
| Harmonized System (HS) code |
85176990 |
