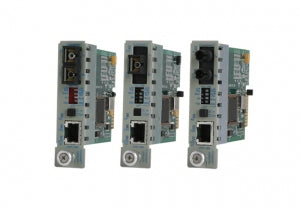

Omnitron iConverter 100Fx/Tx network media converter Internal 100 Mbit/s 1310 nm Multi-mode

100BASE-TX / 100BASE-FX, DF, MM, ST, RJ-45, 1310 nm, 5 km, 7 dBm

Description

The iConverter 100Fx/Tx is an IEEE 802.3 compatible 100BASE-TX UTP to 100BASE-FX fiber converter

- Supports multimode, single-mode, and single-fiber with ST, SC, LC and MT-RJ connectors
- UTP port supports Full or Half-Duplex 100Mbps Ethernet
- UTP crossover switch eliminates the need for a crossover cable
- User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
- Management is available with the addition of a management module to the chassis
- SNMP management via NetOutlook provides real-time port and module information, remote parameter configuration and trap notification
- Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
- LED displays for immediate visual status of each port
- Lifetime Warranty and free 24/7 Technical Support
- The iConverter 100Fx/Tx managed media converters are members of the modular iConverter product family, and provide 100BASE-TX UTP to 100BASE-FX fiber conversion.

The iConverter 100Fx/Tx models are available with multimode, single-mode and single-fiber options. They support ST, SC, LC and MT-RJ connectors. The UTP port supports 100BASE-TX in either Full or Half-Duplex mode. A UTP crossover switch eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs, switches and workstations.

The 100Fx/Tx features user-selectable Link Propagate, Link Segment, Remote Fault Detection and Symmetrical Fault Detection modes to facilitate quick fault detection, isolation and reporting.

iConverter 100Fx/Tx modules are hot-swappable and can be mounted in a 19-Module (2U high) or 5-Module (1U high) rack-mountable chassis (19-inch or 23-inch) with any combination of redundant AC, 24VDC or 48VDC power supplies. They can also be mounted in a 2-Module AC or 18 to 60VDC powered chassis, or in a 1-Module AC/DC powered chassis.

The iConverter family of managed fiber access media converters are used in Service Provider access networks and Enterprise LANs. iConverter media converters provide fiber connectivity with copper-to-fiber, multimode fiber to single-mode fiber, or dual fiber to single-fiber conversions.

Specifications

Network
Cabling technology	100BASE-FX, 100BASE-TX
Networking standards	IEEE 802.3
Duplex system	Full, Half
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	ST
Performance
Wavelength	1310 nm
Maximum transfer distance	196850.4" (5000 m)
Fiber mode structure	Multi-mode
Mean time between failures (MTBF)	730000 h
Hot-swap	Yes
Features
LED indicators	Yes
Hot-swap	Yes
Internal	Yes
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber optic connector	ST
Power
Input current	0.7 A
Weight & dimensions
Weight	8 oz (226.8 g)
Dimensions (WxDxH)	0.85 x 4.5 x 2.8" (21.6 x 114.3 x 71.1 mm)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	-3937 - 157480.3" (-100 - 4000 m)
Technical details
Wavelength	1310 nm
Maximum transfer distance	196850.4" (5000 m)
Fiber mode structure	Multi-mode
Hot-swap	Yes
Internal	Yes
Indication
LED indicators	Yes
Design
LED indicators	Yes
Certification	UL, CE, FCC Class A, NEBS Level 3
Internal	Yes
Endurance
Mean time between failures (MTBF)	730000 h
Management features
Hot-swap	Yes
Certificates
Certification	UL, CE, FCC Class A, NEBS Level 3
Other features
Transmit power range	-24 - -14 dBmW
Receive power	-31 - -14 dBmW
Cabling technology	100BASE-FX, 100BASE-TX
Power requirements	3.3VDC
Full duplex	Yes
Dimensions (WxDxH)	0.85 x 4.5 x 2.8" (21.6 x 114.3 x 71.1 mm)
