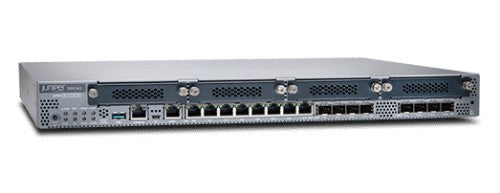

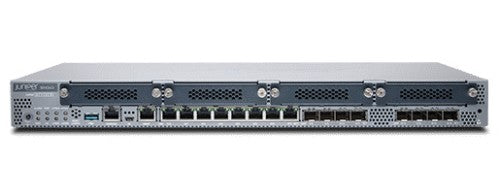

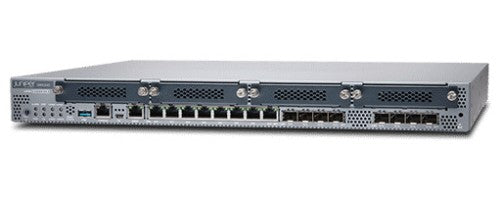

SRX340 Firewalls icl. hardware (16GbE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)
Key Features
- Secure SD-WAN
- Juniper Mist WAN Assurance
- Advanced Threat Prevention
- Next-Generation Firewall
- WAN and Wi-Fi Modules
- Network Segmentation
- On/Off-Box Automation
- Simple Deployment
Description
The SRX300 line of Firewalls provides next-generation security, networking, and SD‑WAN capabilities to support the changing needs of your cloud-enabled, AI-driven enterprise network. Managing the SRX300 line of Firewalls via the Juniper Mist cloud simplifies your branch operations. Whether you’re adding new applications in multiple locations, connecting to the cloud, or striving to improve operational efficiency, the SRX340 can help with scalable, secure, and easy-to-manage connectivity.
The SRX340 supports next-generation firewall features such as intrusion prevention, application visibility and control, and content security features that include anti-virus, anti-spam, and enhanced Web filtering.
Advanced Threat Prevention provides comprehensive threat defense with dynamic malware detection, SecIntel threat feeds, Encrypted Traffic Insights, and Adaptive Threat Profiling.
Specifications
| Technical details |
|---|
| Form factor |
1U |
| Remote access users |
150 |
| Concurrent connections |
256000 |
| Heat dissipation |
420 BTU/h |
| Compliance certificates |
Federal Communications Commission (FCC), RoHS |
| Data transmission |
|---|
| Firewall throughput |
4700 Mbit/s |
| VPN throughput |
733 Mbit/s |
| IPS/IDS throughput |
400 Mbit/s |
| Maximum firewall connections per second |
10000 |
| Security policies (max) |
2000 |
| IPSec VPN throughput |
0.239 Gbit/s |
| Firewall throughput |
4.7 Gbit/s |
| VPN throughput |
0.733 Gbit/s |
| Performance |
|---|
| Remote access users |
150 |
| Noise level |
45.5 dB |
| Concurrent connections |
256000 |
| Heat dissipation |
420 BTU/h |
| Network |
|---|
| VPN tunnels quantity |
1024 |
| Number of VLANs |
2000 |
| Security |
|---|
| Security algorithms |
FIPS 140-2 |
| Hard drive |
|---|
| Storage media type |
SSD |
| Total storage capacity |
8 GB |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| SFP module slots quantity |
8 |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
8 |
| Number of console ports |
1 |
| Storage |
|---|
| Storage media type |
SSD |
| Total storage capacity |
8 GB |
| Sound emission |
|---|
| Noise level |
45.5 dB |
| Design |
|---|
| Form factor |
1U |
| Power |
|---|
| Input current |
1.496 A |
| Power supply |
122 W |
| System requirements |
|---|
| Minimum RAM |
4000 MB |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Weight |
10.8 lbs (4.9 kg) |
| Width |
17.4" (440.9 mm) |
| Depth |
1.72" (43.6 mm) |
| Height |
14.6" (370.1 mm) |
| Other features |
|---|
| Firewall throughput |
4700 Mbit/s |
| VPN throughput |
733 Mbit/s |
