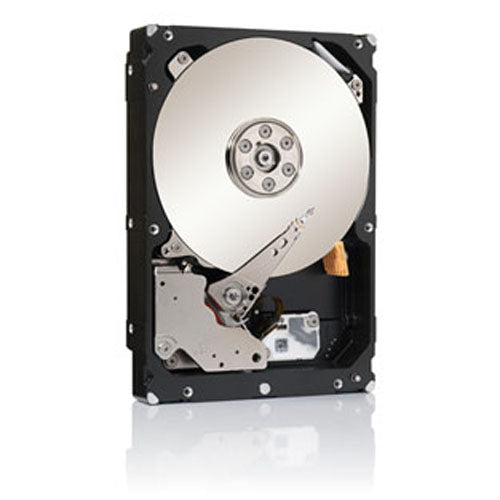

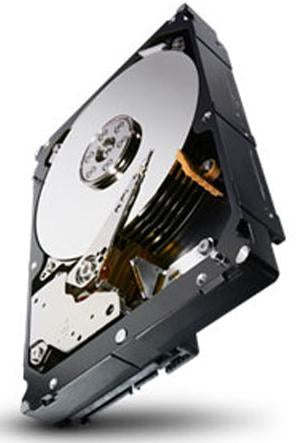

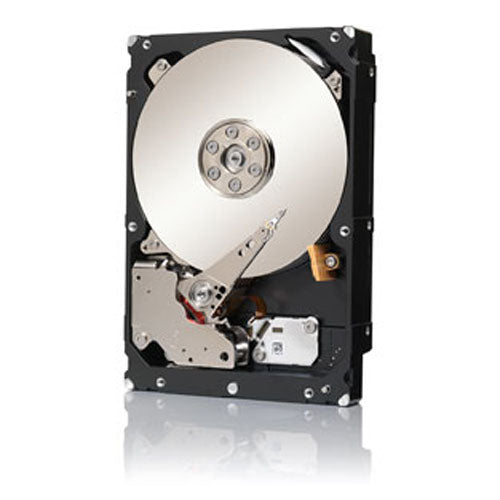

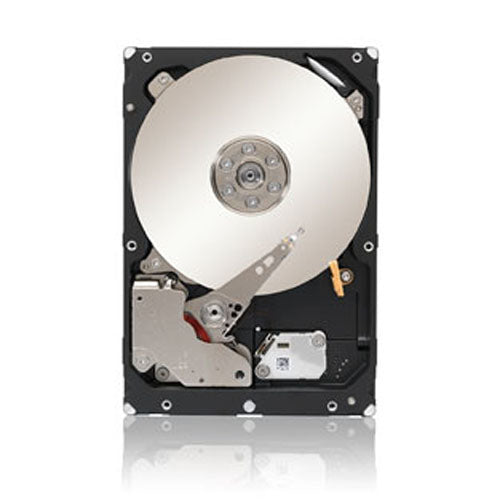

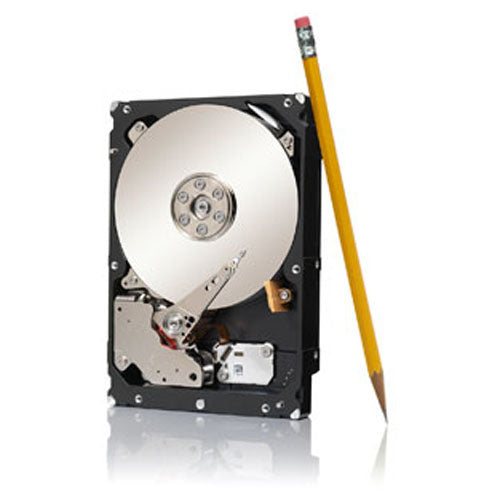

Seagate Constellation 1TBGB SATA, 7200rpm internal hard drive 1 TB 64 MB 3.5" Serial ATA

Constellation 1TB SATA, 3.5", 7200rpm, 6 GB/s, 64MB, 610g, Silver/Black

Description

Supersize your enterprise storage

The Seagate® Enterprise Capacity 3.5 HDD V.3 (formerly Constellation® ES.3) delivers the scalability that data centres need to reliably meet their demanding growth of unstructured data.

- Highest-capacity enterprise drive, up to 4TB for maximum density server and storage solutions
- Perfect for reliable, 24×7 bulk data storage
- Predictable 7,200-rpm performance even in the most rugged multi-drive SAS or SATA environments
- Best-in-class energy efficiency with low power and cooling requirements
- Protect your data and ease data disposal costs and management with the SED FIPS 140-2 option

Supersize your storage

The Constellation ES.3, with the industry's highest capacities in a 3.5 inch HDD form factor, is the perfect foundation for building maximum density server and storage solutions. These capacity-optimised hard drives support up to152TB of storage per square foot for a great return-on-investment for your enterprise storage.

Reliable bulk data storage for a 24x7 world

Building high capacity RAID storage solutions requires predictable and consistent performance. With the Constellation ES.3, we take it a step further and ensure that your data is stored reliably in multi-drive chassis solutions.

Boost your storage capacities – and conserve power

Storing massive amounts of unstructured data is easy and smart with the Constellation ES.3. Designed with best-in-class energy efficiency, it uses a minimum power and cooling envelope to store up to 152TB per square foot.

Specifications

Hard drive
Data transfer rate	6 Gbit/s
Write seek time	9.5 ms
Read seek time	8.5 ms
Average latency	4.16 ms
Mean time between failures (MTBF)	1200000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	1 TB
Data transmission
Sustained data rate	150 MB/s
Sound emission
Acoustic pressure emissions	2.7 dB
Features
Interface	Serial ATA
Write seek time	9.5 ms
Read seek time	8.5 ms
Average latency	4.16 ms
Mean time between failures (MTBF)	1200000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	1 TB
Storage drive buffer size	64 MB
Power
Power consumption (typical)	6.40 W
Power consumption (write)	6.21 W
Power consumption (read)	7.42 W
Power consumption (idle)	4.42 W
Start-up current	1.88 A
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.25 Gs
Operating shock	70 G
Non-operating vibration	4.9 Gs
Non-operating shock	350 G
Technical details
Interface	Serial ATA
Mean time between failures (MTBF)	1200000 h
Internal	Yes
Weight & dimensions
Width	4.01" (101.8 mm)
Weight	21.5 oz (610 g)
Height	1.03" (26.1 mm)
Depth	5.79" (147 mm)
Other features
Interface	Serial ATA
Internal	Yes
Data transfer rate	6 Gbit/s
Sustained data rate	150 MB/s
Acoustic pressure emissions	2.7 dB
