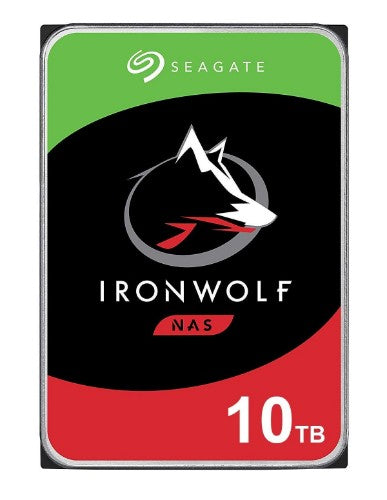

Seagate NAS HDD IronWolf internal hard drive 10 TB 7200 RPM 256 MB 3.5" Serial ATA III

NAS HDD 10TB IronWolf, 7200rpm, 6Gb/s, SATA 256MB, 3.5''

Description

The Best Comes From Within

Seagate has dominated the data storage industry for 40 years.
We understand your unique data storage challenges, and crafted the IronWolf® and IronWolf Pro 14 TB NAS hard drives to help you achieve your goals.

Be Tough. Be Ready.

For everything NAS, there’s IronWolf and IronWolf Pro — always on, always working.
Built for multi-user environments and high workload rates, these NAS hard drives are enhanced with AgileArray technology for optimal reliability and system scalability.

Drive Health and Data Recovery

IronWolf Health Management (IHM) means better drive health. When IronWolf or IronWolf Pro hard drives are integrated into compatible network attached storage (NAS) systems, the overall system reliability increases because the NAS system is constantly monitored and users are alerted if needed.

Built for Work. Built for Performance.

Multiple users can confidently upload and download data on a NAS system populated with IronWolf hard drives.
All IronWolf hard drives are equipped with RV sensors to maintain performance in multi-bay NAS enclosures.

Support Your Business

A small business needs data that can thrive.
IronWolf NAS hard drives can handle the vibrations and high workload rates of a high data network within a multi-RAID environment.

Be Creative. Keep Growing.

IronWolf and IronWolf Pro help keep you on schedule with 24×7 remote access, backup, and file sharing.
So keep doing what you do best. These drives will keep pace with your growing data storage requirements.

Specifications

Hard drive
Component for	NAS
HDD sustained transfer rate	210 MiB/s
HDD interface transfer rate	6 Gbit/s
Workload rate limit	180 TB/year
Mean time between failures (MTBF)	1000000 h
Start/stop cycles	600000
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	10 TB
Features
Type	HDD
Component for	NAS
HDD sustained transfer rate	210 MiB/s
HDD interface transfer rate	6 Gbit/s
Workload rate limit	180 TB/year
Interface	Serial ATA III
Mean time between failures (MTBF)	1000000 h
Start/stop cycles	600000
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	10 TB
Storage drive buffer size	256 MB
Power
Power consumption (typical)	7.8 W
Power consumption (standby)	0.8 W
Power consumption (idle)	5 W
Start-up current	1.8 A
Operational conditions
Operating temperature (T-T)	5 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Non-operating altitude	-12000 - 480000" (-304.8 - 12192 m)
Operating shock	70 G
Non-operating shock	250 G
Technical details
Doesn't contain	Halogen
Harmonized System (HS) code	84717050
Interface	Serial ATA III
Mean time between failures (MTBF)	1000000 h
Layers per pallet	8 pc(s)
Weight & dimensions
Width	4.01" (101.8 mm)
Weight	24.3 oz (690 g)
Height	1.03" (26.1 mm)
Depth	5.79" (147 mm)
Logistics data
Products per pallet	40 pc(s)
Quantity per box	20 pc(s)
Layers per pallet	8 pc(s)
Harmonized System (HS) code	84717050
Packaging data
Products per pallet	40 pc(s)
Quantity per box	20 pc(s)
Other features
Interface	Serial ATA III
Products per pallet	40 pc(s)
Quantity per box	20 pc(s)
Layers per pallet	8 pc(s)
