Description

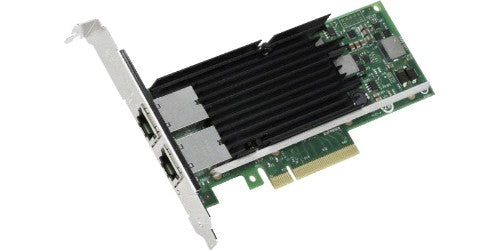

Intel® Ethernet Converged Network Adapter X540-T2, retail bulk
The Intel® Ethernet Converged Network Adapter X520 family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and storage area network (SAN) networking, and proven, reliable performance.
Description
Intel’s new family of Intel® Ethernet Converged Network Adapter X520 are the most flexible and scalable Ethernet adapters for today’s demanding data center and cloud environments.The Intel® Ethernet Converged Network Adapter X520 family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and storage area network (SAN) networking, and proven, reliable performance.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Network | |
| Chipset | X540 |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad |
| Maximum operating distance | 3937" (100 m) |
| LAN controller | Intel® X540 |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Antenna | |
| Quality of Service (QoS) support | Yes |
| Technical details | |
| Quality of Service (QoS) support | Yes |
| Interface type | PCIe v2.1 (5.0 GT/s) |
| Thermal power | 13.4 W |
| Speed & slot width | 5.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| PCI Card form factor | Full-height (low-profile) |
| On-chip QoS and Traffic Management | Yes |
| Low halogen options available | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | No |
| Intel Data Direct I/O Technology | Yes |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G135872 |
| Thermal Design Power (TDP) | 13.4 W |
| Product type | Network Interface Card |
| Status | Launched |
| Product brief URL | http://www.intel.com/content/www/us/en/network-adapters/10-gigabit-network-adapters/ethernet-x540-t2-brief.html |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Launch date | Q1'12 |
| Last change | 64826822 |
| Design | |
| Chipset | X540 |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Product family | Intel 10 Gigabit server adapter |
| Product series | 500 Series Network Adapters (up to 10GbE) |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Performance | |
| Ethernet adapter ARK ID | 58954 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Thermal power | 13.4 W |
| Speed & slot width | 5.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | No |
| Intel Data Direct I/O Technology | Yes |
| Other features | |
| Chipset | X540 |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Thermal Design Power (TDP) | 13.4 W |
| Product type | Network Interface Card |
| Ethernet adapter ARK ID | 58954 |
| Interface type | PCIe v2.1 (5.0 GT/s) |
| Cable type | RJ45 Category 6 up to 55 m; Category 6A up to 100 m |
| Thermal power | 13.4 W |
| Speed & slot width | 5.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| Low halogen options available | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | No |
| Intel Data Direct I/O Technology | Yes |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
| Status | Launched |
| Product brief URL | http://www.intel.com/content/www/us/en/network-adapters/10-gigabit-network-adapters/ethernet-x540-t2-brief.html |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Launch date | Q1'12 |
| Last change | 64826822 |
| Product family | Intel 10 Gigabit server adapter |
| Product series | 500 Series Network Adapters (up to 10GbE) |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G135872 |
| Controller type | Intel® Ethernet Controller X540 |
| Cabling type | RJ45 Category 6 up to 55 m; Category 6A up to 100 m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
