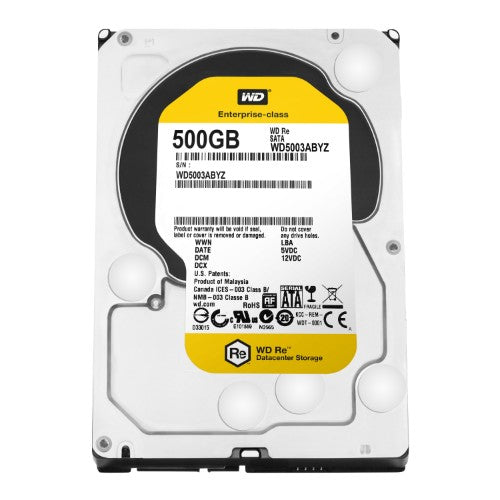

Western Digital RE internal hard drive 500 GB 7200 RPM 64 MB 3.5" Serial ATA III

RE 500GB 3.5" SATA III Enterprise Hard Drive

Description

Durable capacity storage for high-availability deployments

Ideal for enterprise servers and storage, video surveillance, and other write-intensive applications, WD Re 7200 RPM Enterprise SATA hard drives offer up to 4 TB capacity, 64 MB cache, 4th generation vibration tolerance and 5-year limited warranty.

Industry’s highest capacity nearline drive.
WD RE SATA hard drives are available in capacities up to 4 TB to suit even the most demanding storage needs.

Highest performance for business-critical applications.
WD RE delivers up to 6 Gb/s transfer rates, sustained sequential data rates of up to 171 MB/s and high random I/O rates.

Designed for quality and reliability.
With a field-tested 1.2 million hour MTBF, this high performance drive delivers the highest level of reliability for 24x7 operation in up to 100% duty cycle applications.

Dual processor.
Twice the processing power to maximize performance.

Vibration protection.
Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.

Dual actuator technology.
A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy. (2 TB models and above)

StableTrac.
The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations. (2 TB models and above)

Multi-axis shock sensor.
- Automatically detects the subtlest shock events and compensates to protect the data.
- RAID-specific, time-limited error recovery (TLER).
- Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.

NoTouch ramp load technology.
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Thermal extended burn-in test.
Each drive is put through extended burnin testing with thermal cycling to ensure reliable operation.

Dynamic fly height technology.
Each read-write head’s fly height is adjusted in real time for optimum reliability.

The WD advantage.
WD puts our products through extensive Functional Integrity Testing (F.I.T) prior to any product launch. This testing ensures our products consistently meet the highest quality and reliability standards of the WD brand. WD also has a detailed Knowledge Base with more than 1,000 helpful articles as well as helpful software and utilities. Our customer support lines have longer operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help or you can access our WD Support site for additional details.

Ideal for:
Ideal for servers, video surveillance and other demanding write-intensive applications.

Specifications

Hard drive
Data transfer rate	6 Gbit/s
Start/stop cycles	600000
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	500 GB
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Features
Interface	Serial ATA III
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Start/stop cycles	600000
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	500 GB
Storage drive buffer size	64 MB
Power
Power consumption (write)	6.5 W
Power consumption (read)	6.4 W
Power consumption (idle)	4.4 W
Operating voltage	5 / 12 V
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 90%
Operating shock	30 G
Non-operating shock	350 G
Technical details
Harmonized System (HS) code	84717050
Interface	Serial ATA III
Weight & dimensions
Width	4" (101.6 mm)
Weight	15.9 oz (450 g)
Height	1.03" (26.1 mm)
Depth	5.79" (147 mm)
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA III
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Data transfer rate	6 Gbit/s
