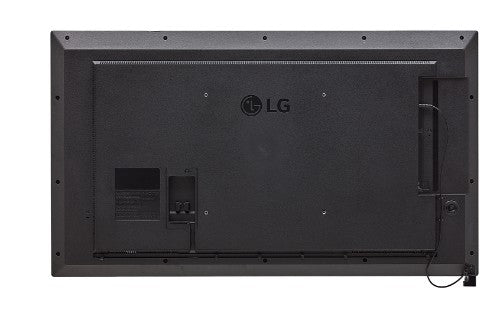

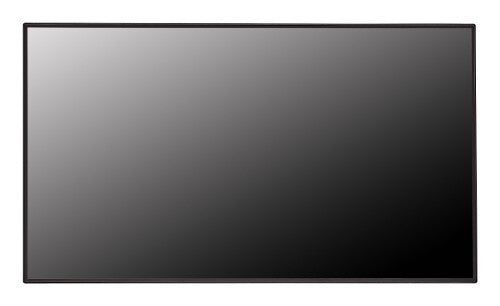

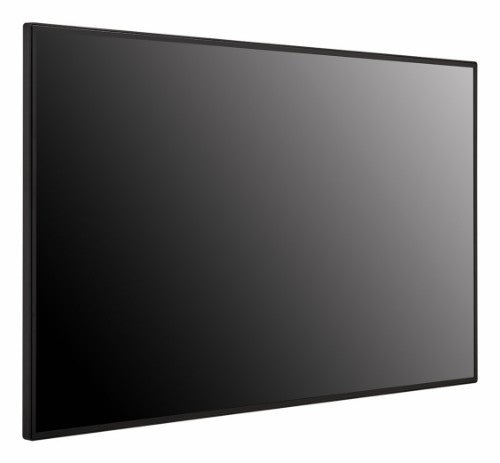

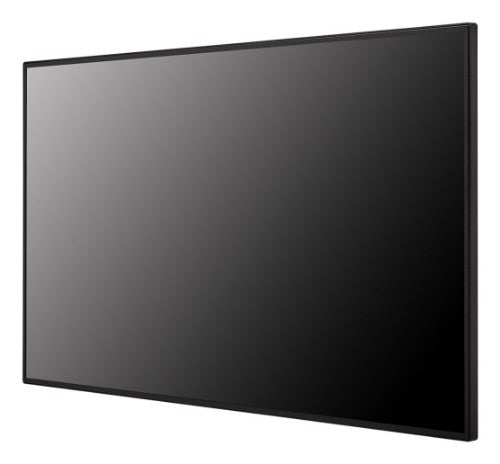

49", IPS, 16 : 9, 3,840 X 2,160 (4K UHD), 11.4Kg, Black
Key Features
- Resolution : 3,840 x 2,160 (UHD)
- Brightness (Typ.) : 500 nit
- EPEAT (US Only)
- The carbon footprint of this product has been certified and achieved a reduction.
- Bezel Width : 12.4 mm (T/B), 11.4 mm (R/L)
- Interface : HDMI(3) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
Description

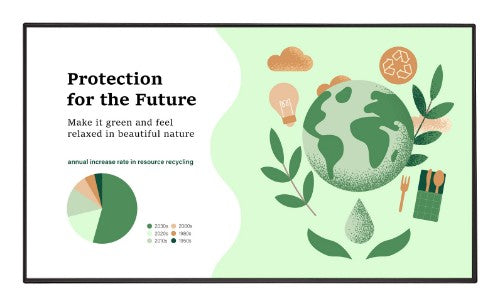

High Resolution DisplayIt offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS PlatformThe UM5N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Durability that Provides ReliabilityOptimized for business environments, the UM5N-E is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

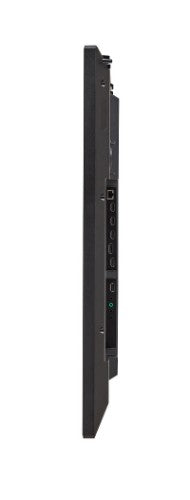

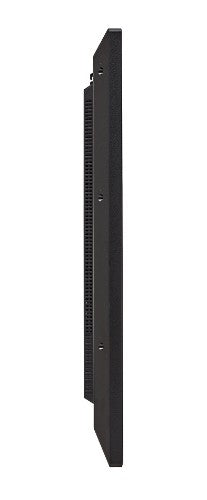

Design for Space UtilizationDesigned with thin bezels and simple cable management, the UM5N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Display number of colours |
1.07 billion colors |
| Panel type |
IPS |
| LED backlighting type |
Direct-LED |
| Touchscreen |
No |
| Display technology |
LCD |
| Colour gamut |
95% |
| Display diagonal |
49" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1100:1 |
| Contrast ratio (dynamic) |
1000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Panel life |
50000 h |
| Native aspect ratio |
16:9 |
| Colour depth |
10 bit |
| Native refresh rate |
60 Hz |
| Haze rate |
28% |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A |
| Remote (IR) input |
1 |
| USB port |
Yes |
| RS-232C |
Yes |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
1 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
4 |
| DVI port |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| USB version |
2.0 |
| USB ports quantity |
1 |
| HDMI input ports quantity |
3 |
| HDMI output ports quantity |
1 |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
0.488" (1.24 cm) |
| Bezel width (side) |
0.449" (1.14 cm) |
| Bezel width (bottom) |
0.488" (1.24 cm) |
| Product colour |
Black |
| Panel mounting interface |
300 x 300 mm |
| VESA mounting |
Yes |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| International Protection (IP) code |
IP5X |
| Picture-in-Picture |
Yes |
| On Screen Display (OSD) languages |
Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish |
| On Screen Display (OSD) |
Yes |
| HDCP |
Yes |
| Automatic brightness control |
Yes |
| Plug and Play |
Yes |
| HDCP version |
1.4/2.2 |
| Wi-Fi |
Yes |
| Panel life |
50000 h |
| Power |
|---|
| Power consumption (max) |
160 W |
| Power consumption (typical) |
120 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50-60 Hz |
| Computer system |
|---|
| Computer system |
Yes |
| Computer system type |
System on Chip (SoC) |
| Operating system installed |
WebOS |
| Internal memory |
16 GB |
| Operating system version |
6.0 |
| Weight & dimensions |
|---|
| Display width |
43.4" (1102 mm) |
| Display depth |
2.27" (57.7 mm) |
| Display height |
25" (634 mm) |
| Display weight |
25.1 lbs (11.4 kg) |
| Packaging data |
|---|
| Package width |
47.8" (1215 mm) |
| Package depth |
5.98" (152 mm) |
| Package height |
29" (736 mm) |
| Package weight |
31.7 lbs (14.4 kg) |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC, Phone |
| Packaging content |
|---|
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC, Phone |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A |
| Panel type |
IPS |
| LED backlighting type |
Direct-LED |
| Real Time Clock (RTC) |
Yes |
| Thin Client |
|---|
| Operating system installed |
WebOS |
| Internal memory |
16 GB |
| Other features |
|---|
| USB connector type |
USB Type-A |
| Panel type |
IPS |
| Wi-Fi |
Yes |
| Power consumption (PowerSave) |
84 W |
| Power consumption (max) |
160 W |
| Display technology |
LCD |
| Bezel width (top) |
0.488" (1.24 cm) |
| Bezel width (side) |
0.449" (1.14 cm) |
| Bezel width (bottom) |
0.488" (1.24 cm) |
| Audio output |
1 |
| Plug and Play |
Yes |
