PoE, 10/100 MbE port, Speaker, Buzzer, 80dB, In-wall/On-wall, 3W
Key Features
- Up to 80dB speaker sound
- Connect and power using PoE
Description
PoE plug-and-play notification device, designed to pair with a UniFi doorbell or door access hub.
Specifications
| Design |
|---|
| Product colour |
Gray, White |
| Housing material |
Aluminum, Polycarbonate (PC) |
| Compatible products |
UVC-G4 Doorbell Pro PoE Kit
UVC-G4 Doorbell Pro
UVC-G4-DoorBell
UA-G2-Pro
UA-Intercom
UA-G2-SK-Pro |

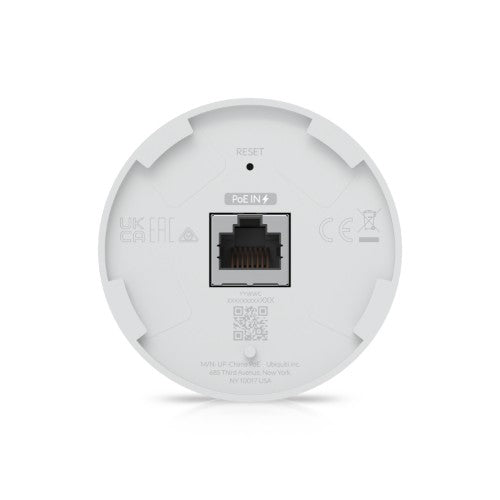

| Reset button |
Yes |
| Features |
|---|
| Connection type |
Wired |
| Volume |
80 dB |
| Plug and Play |
Yes |
| Built-in speaker(s) |
Yes |
| Power |
|---|
| Power source type |
DC, PoE |
| Input voltage |
44- 57 V |
| Power consumption (typical) |
3 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight & dimensions |
|---|
| Width |
2.44" (62 mm) |
| Depth |
2.44" (62 mm) |
| Height |
2.13" (54 mm) |
| Weight |
5.57 oz (158 g) |
| Packaging content |
|---|

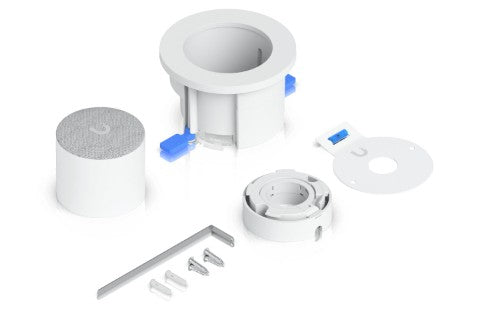

| Mounting kit |
Yes |
| Quantity |
1 |
| Screws included |
Yes |
