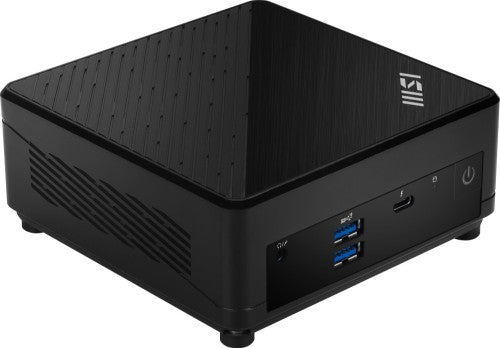

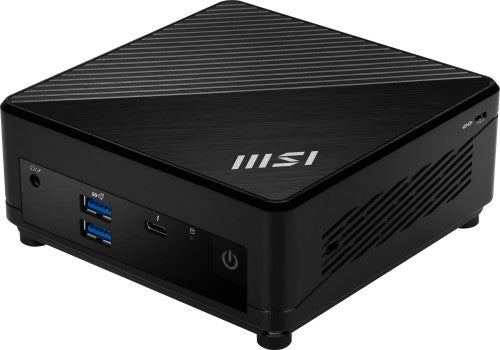

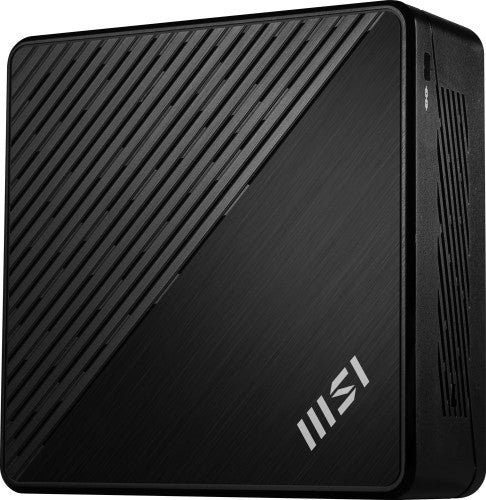

MSI Cubi NUC 1M-007US, Intel Core 7, 150U, 32 GB, DDR5-SDRAM, 1 TB, Windows 11 Pro
Description
MSI Cubi NUC 1M-007US. Processor family: Intel Core 7, Processor model: 150U. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5200 MHz. Total storage capacity: 1 TB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Iris Xe Graphics. Operating system installed: Windows 11 Pro. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 22 oz (625 g). Product color: Black
Specifications
| Processor |
|---|
| Processor generation |
Intel Core (Series 1) |
| Processor cache |
12 MB |
| Processor model |
150U |
| Number of processors installed |
1 |
| Processor manufacturer |
Intel |
| Processor threads |
12 |
| Processor cores |
10 |
| Processor family |
Intel Core 7 |
| Performance cores |
2 |
| Efficient cores |
8 |
| Performance-core base frequency |
1.8 GHz |
| Efficient-core base frequency |
1.2 GHz |
| Processor base power |
15 W |
| Maximum turbo power |
55 W |
| Efficient-core Max Turbo Frequency |
4 GHz |
| Performance-core Max Turbo Frequency |
5.4 GHz |
| Memory |
|---|
| Internal memory |
32 GB |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
5200 MHz |
| Storage |
|---|
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| Number of storage drives supported |
3 |
| Optical drive type |
No |
| SSD interface |
M.2 |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| HDD size |
2.5" |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Total storage capacity |
1 TB |
| SSD form factor |
M.2 |
| Total SSDs capacity |
500 GB |
| NVMe |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel Iris Xe Graphics |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Wake-on-LAN ready |
Yes |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer |
Intel |
| LAN controller |
Intel I226-V |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| Thunderbolt 3 ports quantity |
0 |
| HDMI version |
1.4/2.1 |
| VGA (D-Sub) ports quantity |
0 |
| USB 2.0 ports quantity |
0 |
| Serial ports quantity |
0 |
| S/PDIF out port |
No |
| PS/2 ports quantity |
0 |
| Parallel ports quantity |
0 |
| Mini DisplayPorts quantity |
0 |
| Microphone in |
No |
| Line-out |
No |
| Line-in |
No |
| Firewire (IEEE 1394) ports |
0 |
| Headphone outputs |
1 |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| eSATA ports quantity |
0 |
| DVI port |
No |
| DisplayPorts quantity |
0 |
| DC-in jack |
Yes |
| PowerShare |
No |
| Number of USB ports with PowerShare support |
0 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB4 Gen 2x2 ports quantity |
0 |
| USB4 Gen 3x2 ports quantity |
0 |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Fiber NIC port (Flex I/O) |
No |
| Number of rear USB ports |
4 |
| Number of rear audio ports |
0 |
| Number of front USB ports |
2 |
| Number of front audio ports |
1 |
| Number of side USB ports |
0 |
| Technical details |
|---|
| Cable lock slot type |
Kensington |
| Product type |
Mini PC |
| Trusted Platform Module (TPM) |
Yes |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Motherboard form factor |
NUC |
| Placement supported |
Horizontal |
| Cable lock slot |
Yes |
| Motherboard chipset |
Intel SoC |
| Locale |
English |
| Warranty period |
3 year(s) |
| Design |
|---|
| VESA mounting |
Yes |
| Housing material |
Plastic |
| Volume |
0.84 L |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Placement supported |
Horizontal |
| Cable lock slot |
Yes |
| Viewing window |
No |
| Colour name |
Black |
| Country of origin |
China |
| RGB memory lighting |
No |
| Introduction year |
2024 |
| Introduction month |
July |
| Performance |
|---|
| Market positioning |
Business |
| Product type |
Mini PC |
| Trusted Platform Module (TPM) |
Yes |
| Motherboard form factor |
NUC |
| Motherboard chipset |
Intel SoC |
| Powered by |
MSI |
| Trusted Platform Module (TPM) version |
2.0 |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| Power supply input frequency |
50-60 Hz |
| Power supply input voltage |
100-240 V |
| Power supply |
120 W |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Weight & dimensions |
|---|
| Volume |
0.84 L |
| Package width |
8.07" (205 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
3.7" (94 mm) |
| Width |
5.22" (132.5 mm) |
| Depth |
5.34" (135.6 mm) |
| Height |
1.97" (50.1 mm) |
| Package weight |
3.2 lbs (1.45 kg) |
| Weight |
22 oz (625 g) |
| Packaging data |
|---|
| Package width |
8.07" (205 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
3.7" (94 mm) |
| Package weight |
3.2 lbs (1.45 kg) |
| Packaging content |
|---|
| VESA mount included |
Yes |
| Cables included |
AC, Power |
| Mouse included |
No |
| Display included |
No |
| Keyboard included |
No |
| Screws included |
Yes |
| Display |
|---|
| Display included |
No |
| Features |
|---|
| Country of origin |
China |
| Other features |
|---|
| VESA mounting |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
| Processor manufacturer |
Intel |
| TV tuner integrated |
No |
| Built-in microphone |
No |
| Country of origin |
China |
| Locale |
English |
| Warranty period |
3 year(s) |
