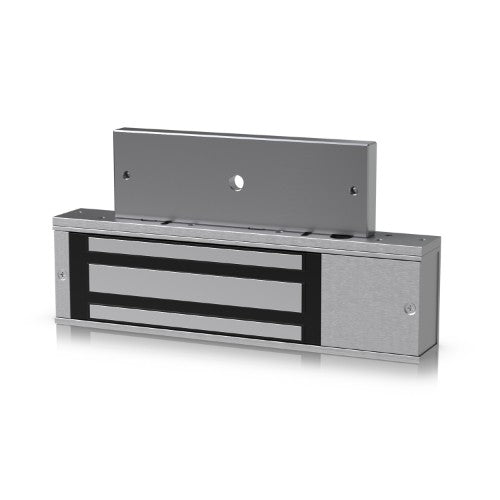

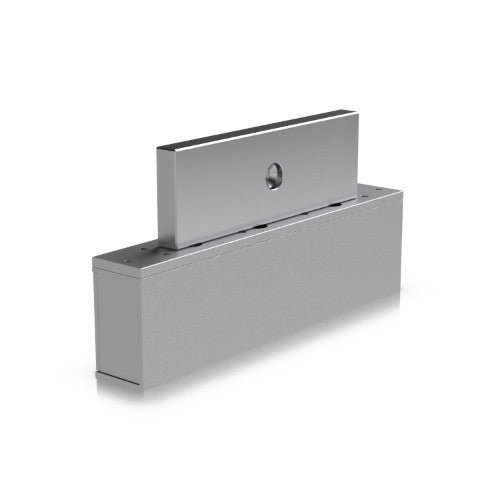

Magnetic Lock, 540 kg, aluminum/steel, 12 V
Key Features
- Holds up to 270 kg or 540 kg (600-1,200 lb)

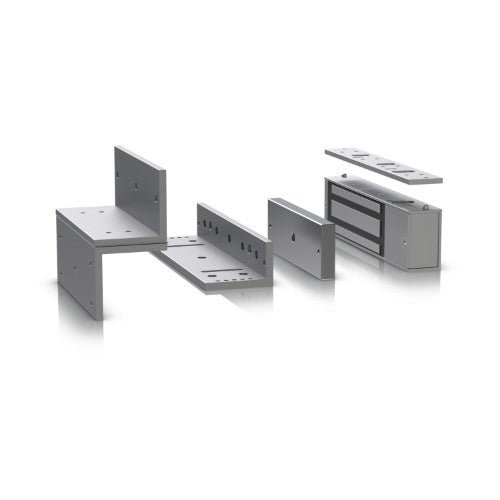

- Can be installed on a wide variety of door types

Description
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.
Specifications
| Technical details |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight & dimensions |
| Electromagnet width |
10.5" (26.6 cm) |
| Electromagnet depth |
1.57" (4 cm) |
| Electromagnet height |
2.66" (6.75 cm) |
| Plate width |
10.5" (26.6 cm) |
| Plate depth |
0.236" (6 mm) |
| Plate height |
1.57" (4 cm) |
| Weight |
6.39 lbs (2.9 kg) |
| Features |
| Holding force |
1190.5 lbs (540 kg) |
| Input voltage |
12 V |
| Power consumption (12V) |
500 mA |
| Product colour |
Black, Gray |
| Operating temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Compatible products |
UA-G2-SK-Pro, UA-G2-SK, EAH-8, UA-Hub |
