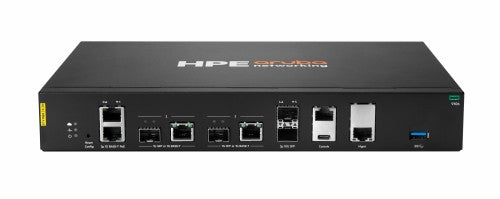

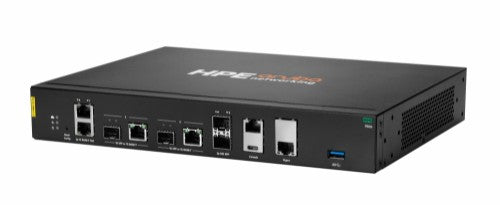

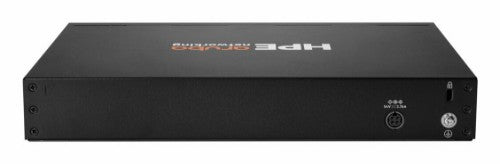

HPE Aruba Networking 9106 Hybrid, Black, 1U, Desktop/Rack mounting, Power, Status, 236076 h, 1000 Mbit/s
Description
HPE Aruba Networking 9106 Hybrid. Product color: Black, Rack capacity: 1U, Mounting type: Desktop/Rack mounting. Mean time between failures (MTBF): 236076 h. Ethernet LAN data rates: 1000 Mbit/s, Firewall throughput: 10000 Mbit/s, 3DES/AES throughput: 10 Gbit/s. Console port: RJ-45. Power consumption (max): 150 W, Input voltage: 100 - 240 V, Input frequency: 50 - 60 Hz
Specifications
| Design |
|---|
| LED indicators |
Power, Status |
| Mounting type |
Desktop/Rack mounting |
| Rack capacity |
1U |
| Product colour |
Black |
| Features |
|---|
| Mean time between failures (MTBF) |
236076 h |
| Performance |
|---|
| Control display unit |
No |
| Mounting type |
Desktop/Rack mounting |
| Rack capacity |
1U |
| Product colour |
Black |
| Protocols |
|---|
| DHCP client |
Yes |
| Network |
|---|
| Ethernet LAN data rates |
1000 Mbit/s |
| Firewall throughput |
10000 Mbit/s |
| 3DES/AES throughput |
10 Gbit/s |
| Security |
|---|
| MAC address filtering |
Yes |
| Access Control List (ACL) |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Console port |
RJ-45 |
| SFP+ ports quantity |
2 |
| Combo SFP ports quantity |
2 |
| Power |
|---|
| Output voltage |
54 V |
| Power over Ethernet (PoE) |
Yes |
| Input voltage |
100 - 240 V |
| Input frequency |
50 - 60 Hz |
| Heat dissipation |
290 BTU/h |
| Power consumption (max) |
150 W |
| Weight & dimensions |
|---|
| Weight |
5.09 lbs (2.31 kg) |
| Width |
11.6" (294.8 mm) |
| Height |
1.72" (43.7 mm) |
| Depth |
7.92" (201.1 mm) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 95% |
| Technical details |
|---|
| Mean time between failures (MTBF) |
236076 h |
| Indication |
|---|
| LED indicators |
Power, Status |
| Display |
|---|
| Control display unit |
No |
