Vertiv Liebert PSI5, Line-Interactive, 2.2 kVA, 1920 W, Pure sine, 75 V, 146 V
Key Features
- ULTIMATE POWER PROTECTION: The advanced pure sine wave UPS from Vertiv compensates for power fluctuations, protects against equipment damage, and prevents data loss during a power disturbance. Automatic voltage regulation (AVR) technology safeguards equipment against a range of utility power fluctuations without battery operation

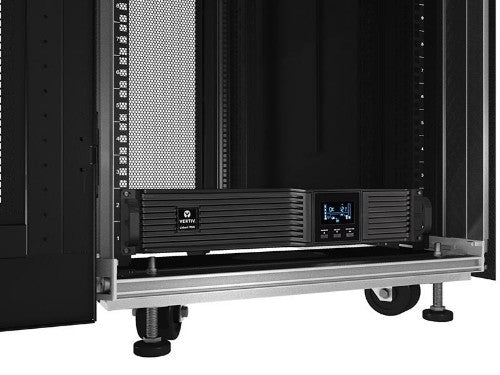

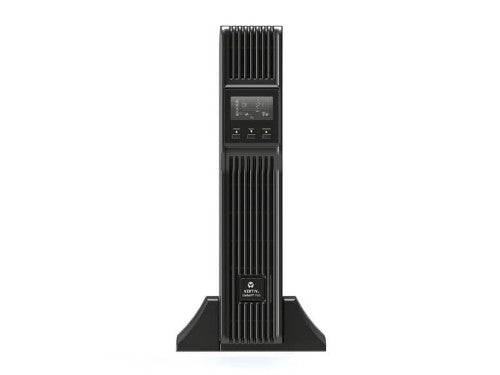

- EASY MONITORING: The Vertiv™ Liebert® PSI UPS offers a compact 2U rackmount/tower configuration, with the LCD display panel rotating 90 degrees to make the readout easy to see in either configuration, including output overload, or low-battery or replace-battery warnings
- HIGH-END ELECTRONICS: With advanced pure sine wave power conditioning, the Vertiv™ Liebert® PSI UPS protects valuable electronic equipment from the damage power fluctuations can cause. The Vertiv™ Liebert® PSI5 UPS allows users to save their progress during power loss and safeguard expensive electronics when utility power fluctuates
Description
Vertiv Liebert PSI5. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1920 W. AC outlet types: NEMA 5–15, NEMA 5–20R, NEMA L5-20R, Power plug: NEMA 5-20, AC outlets quantity: 7 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5 min, Typical backup time at half load: 14 min. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 2U. Certification: FCC Part 15, Class B UL 497 B ISTA
Specifications
| Power |
|---|
| Output power |
1920 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
146 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Surge energy rating |
1372 J |
| Efficiency |
96% |
| Emergency Power Off (EPO) |
Yes |
| Output power capacity |
2.2 kVA |
| Input frequency |
55/65 Hz |
| Ports & interfaces |
|---|
| Cable length |
118.1" (3 m) |
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Cabling technology |
10/100Base-T |
| AC outlets quantity |
7 AC outlet(s) |
| AC outlet types |
NEMA 5–15, NEMA 5–20R, NEMA L5-20R |
| Power plug |
NEMA 5-20 |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB port type |
USB Type-B |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Pure sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Response time |
6 ms |
| Surge protection |
Yes |
| Noise level |
45 dB |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Pure sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Response time |
6 ms |
| Output power |
1920 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
146 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Surge energy rating |
1372 J |
| Efficiency |
96% |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Noise level |
45 dB |
| Output power capacity |
2.2 kVA |
| Input frequency |
55/65 Hz |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at half load |
14 min |
| Typical backup time at full load |
5 min |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Safety |
UL 1778, c-UL-us |
| Certification |
FCC Part 15, Class B
UL 497 B
ISTA |
| Cable length |
118.1" (3 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 50 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Certificates |
|---|
| Certification |
FCC Part 15, Class B
UL 497 B
ISTA |
| Safety |
UL 1778, c-UL-us |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Manual |
Yes |
| Safety regulation & standards |
|---|
| Safety |
UL 1778, c-UL-us |
| Weight & dimensions |
|---|
| Package width |
10.2" (258 mm) |
| Package depth |
30.8" (782 mm) |
| Package height |
21.7" (550 mm) |
| Weight |
59.1 lbs (26.8 kg) |
| Width |
17.2" (438 mm) |
| Package weight |
70.1 lbs (31.8 kg) |
| Height |
3.46" (88 mm) |
| Depth |
24.8" (630 mm) |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| Manual |
Yes |
| Package width |
10.2" (258 mm) |
| Package depth |
30.8" (782 mm) |
| Package height |
21.7" (550 mm) |
| Package weight |
70.1 lbs (31.8 kg) |
