CM20, 120Hz-16kHz, 1x RJ-45 PoE 802.3af class 3, 625 g
Key Features
- 16-array beamforming microphone
- AI-powered noise reduction
- Radius 4m nominal coverage
Description

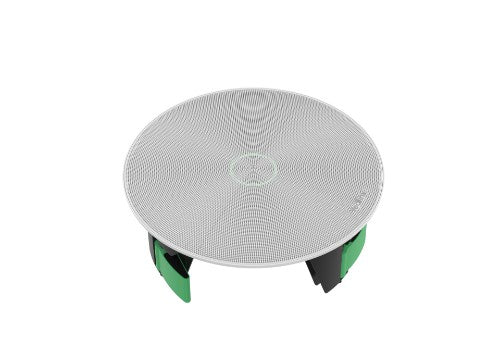

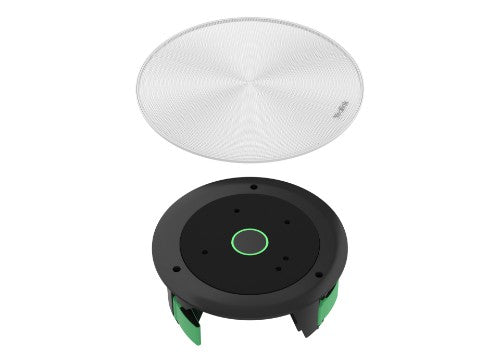

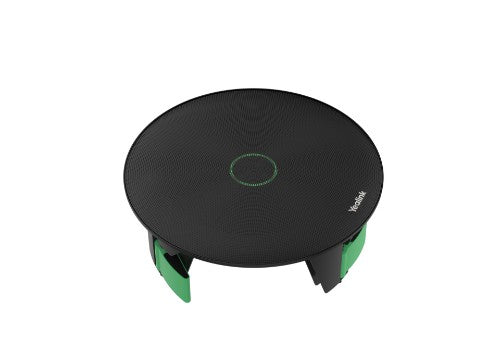

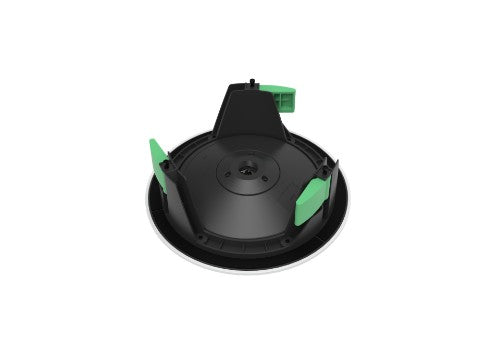

The Yealink CM20 is a premium ceiling microphone, expertly crafted to enhance audio performance in professional conference settings. Boasting an advanced array of 16 omnidirectional microphones, the CM20 captures sound in 360°, ensuring clarity and inclusivity in every discussion. With an integrated DSP, CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing.Designed for medium to large conference rooms, the CM20 combines advanced technology with a sleek, elegant design, making it a perfect blend of functionality and style.
Specifications
| Features |
|---|
| Product type |
Microphone |
| Product colour |
Gray |
| Placement supported |
Ceiling |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate |
| Microphone |
|---|
| Microphone sensitivity |
94 dB |
| Microphone frequency |
120 - 16000 Hz |
| Microphone direction type |
Omnidirectional |
| Number of microphone arrays |
16 |
| Signal-to-Noise Ratio (SNR) |
86 dB |
| Ports & interfaces |
|---|
| Device interface |
RJ-45 |
| Power |
|---|
| Power source type |
PoE |
| Power consumption (typical) |
5.7 W |
| Power consumption (max) |
9 W |
| Weight & dimensions |
|---|
| Width |
8.78" (223 mm) |
| Depth |
8.78" (223 mm) |
| Height |
3.27" (83 mm) |
| Weight |
21.7 oz (615 g) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
0 - 70 °C |
| Packaging data |
|---|
| Package width |
15.7" (398 mm) |
| Package depth |
12.2" (310 mm) |
| Package height |
5.31" (135 mm) |
| Package type |
Box |
| Packaging content |
|---|
| Quantity |
1 |
| Mounting kit |
Yes |
| Screws included |
Yes |
| User guide |
Yes |
