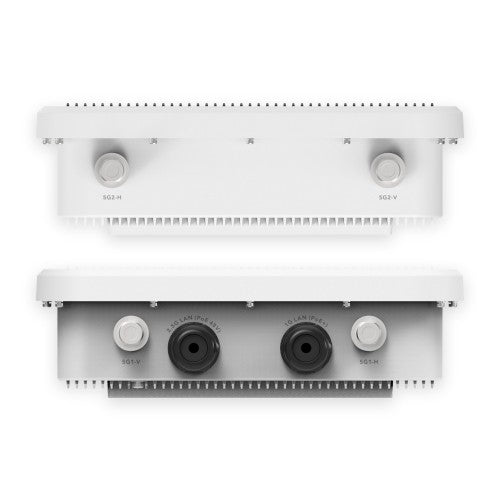

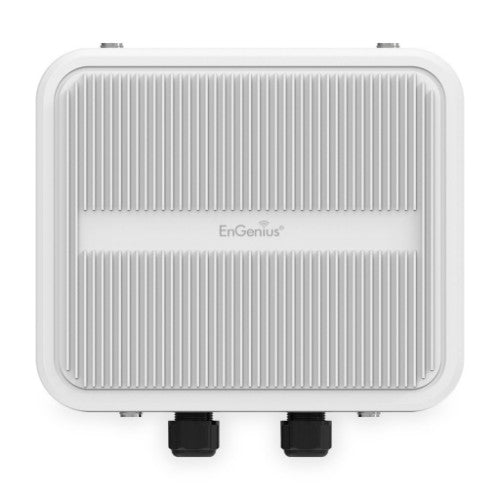

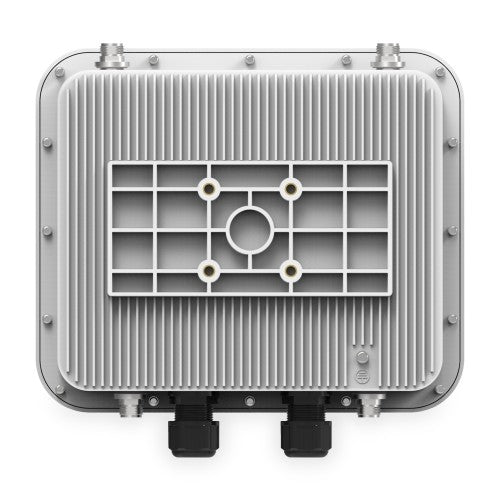

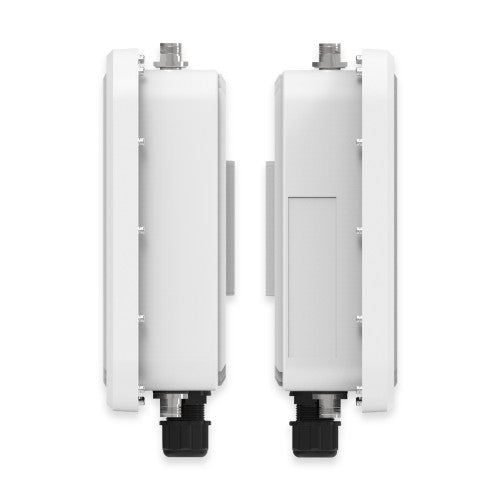

EnGenius EOC655 bridge/repeater Network bridge 2500 Mbit/s White

Broadband Outdoor 5GHz Dual Radio 2×2 Bridge with N-Type Connectors

Key Features

• Wi-Fi 6 (802.11ax) technology with OFDMA, Beamforming, and MU-MIMO for improved throughput
• 2x2 dual 5GHz radios capable of reaching speeds of up to 2 Gbps
• High 27 dBm transmit power extends Wi-Fi to the yard or building-to-building
• Auto Provisioning: Streamline large-scale network development with easy, centralized control
• Mobile App Radio Tuning: Integrates a 2.4 GHz radio with a mobile app for easy PtP or PtMP setup, efficient antenna alignment, and streamlined troubleshooting
• Quick Outage Response: Features a Dying Gasp module for prompt alerts and response to power-related issues
• Automatic RF Correction: Enhances network resilience by improving stability and reducing interruptions
• Auto & Dynamic Channel Selection: Automatically choose optimal channels to avoid interference and enhance signal quality
• Smart Network Mapping: Built-in GPS enables auto-discovery and detailed network topology insights
• Centralized Network Management Software: Offers a comprehensive web-based network performance, health, and security management platform
• IP67-Rated Casing: Ensures durability against harsh environmental conditions, prolonging device lifespan
• Uncompromised Security: Ensures top-tier data protection with AES-256 encryption and optional FIPS-140-2 compliance

Description

EnGenius EOC655 Wi-Fi 6 2x2 outdoor bridge boasts dual 5GHz radios that can reach speeds of up to 2Gbps. Its IP67 rating ensures reliable performance even in harsh outdoor conditions. Equipped with built-in GPS, the EOC series ensures precise device placement and effective network mapping. This is crucial for PtP/PtMP setups, asset management, and network integration through auto-discovery features. The system prioritizes security by utilizing AES-256 encryption and providing optional FIPS-140-2 compliance for reliable and secure communication. With the SkyPoint NMS, you can enjoy comprehensive web-based monitoring and management while auto-provisioning enables efficient large-scale deployments.

Specifications

Data transmission
Maximum data transfer rate	2500 Mbit/s
Antenna
Antenna connector type	N-type
Antenna design	Internal & external
Wireless LAN features
Antenna connector type	N-type
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Network
Networking standards	IEEE 802.11e, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ethernet LAN interface type	2.5 Gigabit Ethernet
Ports & interfaces
Ethernet LAN	Yes
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	2
Management features
Management protocols	SNMP v1, v2c, v3
Features
Product type	Network bridge
Product colour	White
Processor family	ARM Cortex
Processor model	Cortex-A53
Processor frequency	1 MHz
International Protection (IP) code	IP67
Mean time between failures (MTBF)	100000 h
Internal memory	1024 MB
Processor manufacturer	Qualcomm
Mounting type	Pole
Power
Power consumption (max)	21 W
Power source type	PoE
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-30 - 80 °F
Endurance
Mean time between failures (MTBF)	100000 h
Certificates
Certification	FCC, CB, RoHS, WEEE
Technical details
Product colour	White
Operating temperature (T-T)	-30 - 80 °F
Internal memory	1024 MB
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Warranty period	1 year(s)
Weight & dimensions
Weight	4.06 lbs (1.84 kg)
Width	10.5" (267 mm)
Depth	8.94" (227 mm)
Height	3.23" (82 mm)
Processor
Processor family	ARM Cortex
Processor model	Cortex-A53
Processor frequency	1 MHz
Processor manufacturer	Qualcomm
Packaging content
Packaging content	1 – EOC655 Outdoor Wireless 1 – PoE Injector 1 – Power Cord 1 – Pole Mount Brackets 1 – Pole Mount Strap 1 – Ethernet Cable Cat5e 1.5 mts 1 – Grounding Cable 1.8 mts
Other features
Warranty period	1 year(s)
Packaging data
Package width	12.4" (314 mm)
Package weight	8.8 lbs (3.99 kg)
Package height	17.7" (450 mm)
Package depth	6.26" (159 mm)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	13.1" (332 mm)
Master (outer) case length	13.3" (338 mm)
Master (outer) case height	19.1" (485 mm)
Master (outer) case gross weight	19.3 lbs (8.74 kg)
Products per master (outer) case	2 pc(s)
Harmonized System (HS) code	85176990
