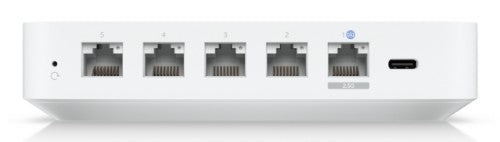

4x RJ-45, 1x WAN, USB Type-C, LCM display, Bluetooth
Key Features
- Runs UniFi Network for full-stack network management
- Manages 30+ UniFi Network devices and 300+ clients
- 1 Gbps routing with IDS/IPS
- Multi-WAN load balancing
- 0.96" LCM status display
- USB-C powered (adapter included)
Description
Powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features.
Specifications
| Design |
|---|
| LED indicators |
LAN |
| Certification |
CE, FCC, IC |
| Product colour |
White |
| Enclosure material |
Polycarbonate (PC) |
| Performance |
|---|
| Built-in processor |
Yes |
| Processor frequency |
1500 MHz |
| Number of processors installed |
1 |
| Internal memory type |
DDR4 |
| Internal memory |
3072 MB |
| Flash memory |
16384 MB |
| Control display unit |
Yes |
| Processor model |
Cortex-A53 |
| Processor manufacturer |
ARM |
| Processor family |
ARM Cortex |
| Certification |
CE, FCC, IC |
| Product colour |
White |
| Enclosure material |
Polycarbonate (PC) |
| Protocols |
|---|
| DHCP server |
Yes |
| Network |
|---|
| Ethernet LAN data rates |
1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Security |
|---|
| VLAN support |
Yes |
| Firewall security |
Yes |
| Ports & interfaces |
|---|
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Power |
|---|
| Output voltage |
5 V |
| Output current |
3 A |
| Input voltage |
100 - 240 V |
| Power consumption (max) |
6.2 W |
| Weight & dimensions |
|---|
| Weight |
18.3 oz (520 g) |
| Width |
5.58" (141.8 mm) |
| Height |
1.18" (30 mm) |
| Depth |
5.02" (127.6 mm) |
| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| Manual |
Yes |
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Technical details |
|---|
| Built-in processor |
Yes |
| Processor frequency |
1500 MHz |
| Number of processors installed |
1 |
| Manual |
Yes |
| AC adapter included |
Yes |
| Indication |
|---|
| LED indicators |
LAN |
| Memory |
|---|
| Internal memory type |
DDR4 |
| Internal memory |
3072 MB |
| Flash memory |
16384 MB |
| Display |
|---|
| Control display unit |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Features |
|---|
| Built-in processor |
Yes |
| Processor frequency |
1500 MHz |
| Number of processors installed |
1 |
