Description

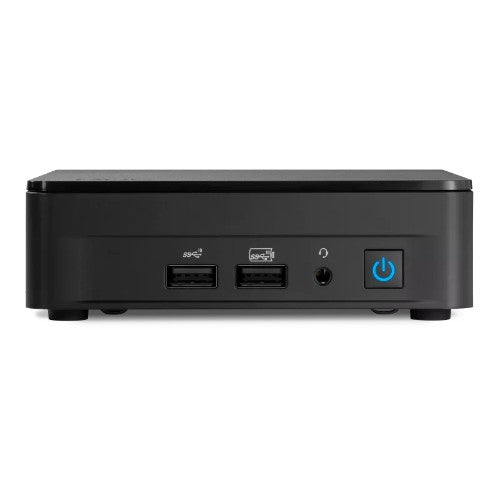

NUC 13 Pro, Intel Core i3-1315U Processor (10M Cache | up to 4.50 GHz), up to 64GB dual-channel DDR4-3200 SODIMMs
NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business.
It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro® Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management.
The NUC Pro Software Suite (NPSS) helps to ensure digital signage applications keep running during any unexpected system failures. Businesses also benefit from advanced features including power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.
To provide an eco-friendly foundation for businesses, NUC 13 Pro Mini PCs and Kits are upgradable, reparable, and reusable. Every system is qualified for 24x7 operation.
Key Features
- Get the latest in business performance with 13th Gen Intel® Core™ processors featuring up to 14 cores (6P+8E) and up to 64GB dual-channel memory
- For professional-grade performance, the 13th Gen Intel Core™i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel® Smart Cache, and 35W TDP
- Businesses get the fast memory they need with up to 64GB dual-channel DDR4-3200 SODIMMs
- Wired and wireless connections are lightning fast with up to a 2.5 Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
- Dual HDMI 2.1 and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays
Description
Business Driver. Space Saver.NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business.
It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro® Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management.
The NUC Pro Software Suite (NPSS) helps to ensure digital signage applications keep running during any unexpected system failures. Businesses also benefit from advanced features including power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.
To provide an eco-friendly foundation for businesses, NUC 13 Pro Mini PCs and Kits are upgradable, reparable, and reusable. Every system is qualified for 24x7 operation.
Specifications
| Motherboard | |
|---|---|
| Motherboard form factor | UCFF |
| Number of processors supported | 1 |
| Processor | |
| Built-in processor | Yes |
| Processor model | i3-1315U |
| Processor boost frequency | 4.5 GHz |
| Processor threads | 8 |
| Processor cores | 6 |
| Processor family | Intel® Core™ i3 |
| Number of processors supported | 1 |
| Processor manufacturer | Intel |
| Processor cache | 10 MB |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor generation | Intel Core i3-13xxx |
| Memory | |
| Memory voltage | 1.2 V |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| ECC | No |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 3200 MHz |
| Maximum internal memory | 64 GB |
| Video | |
| On-board graphics card | No |
| Graphics card family | Intel |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Number of storage drives supported | 2 |
| SSD form factor | M.2 |
| NVMe | Yes |
| Graphics | |
| Number of displays supported | 4 |
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I226-V |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ports & interfaces | |
| Serial port via internal header | No |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Design | |
| Motherboard form factor | UCFF |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| On/off switch | Yes |
| LED indicators | Yes |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | UCFF |
| Performance | |
| Motherboard form factor | UCFF |
| Windows operating systems supported | Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise |
| Linux operating systems supported | Yes |
| Number of displays supported | 4 |
| Number of processors supported | 1 |
| Colour | |
| Product colour | Black |
| Technical details | |
| Processor cores | 6 |
| Cooling type | Active |
| Chassis type | UCFF |
| Indication | |
| LED indicators | Yes |
| Software | |
| Windows operating systems supported | Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise |
| Linux operating systems supported | Yes |
| Management features | |
| On/off switch | Yes |
| Features | |
| Number of displays supported | 4 |
| Power | |
| Power supply type | External AC adapter |
| Weight & dimensions | |
| Width | 4.61" (117 mm) |
| Depth | 4.41" (112 mm) |
| Height | 1.46" (37 mm) |
| Weight | 17.7 oz (502 g) |
| Other features | |
| Chassis type | UCFF |
